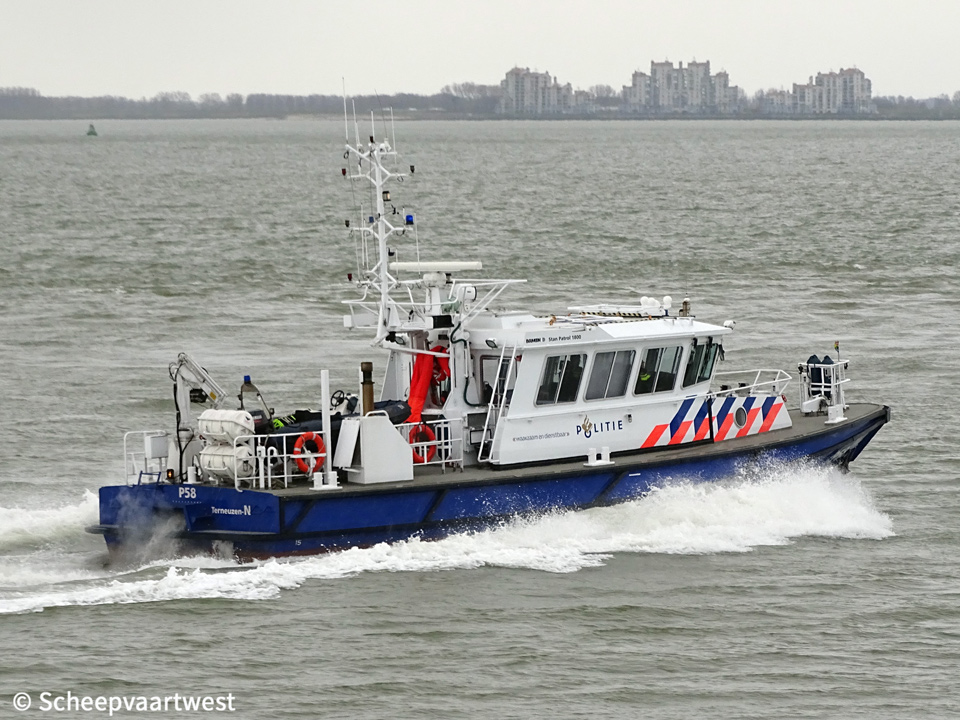

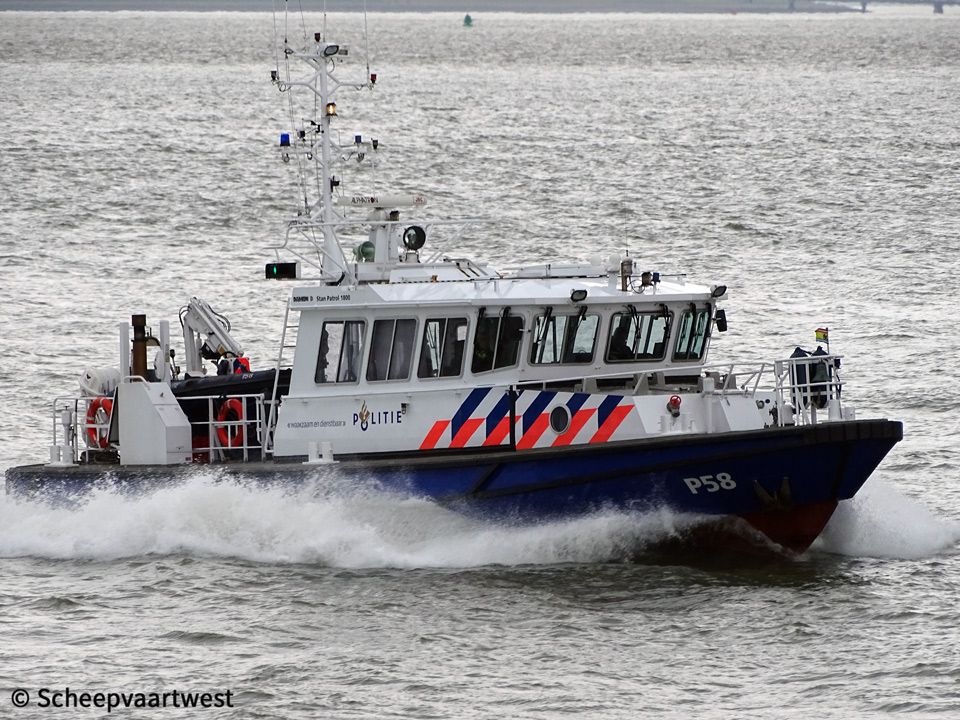

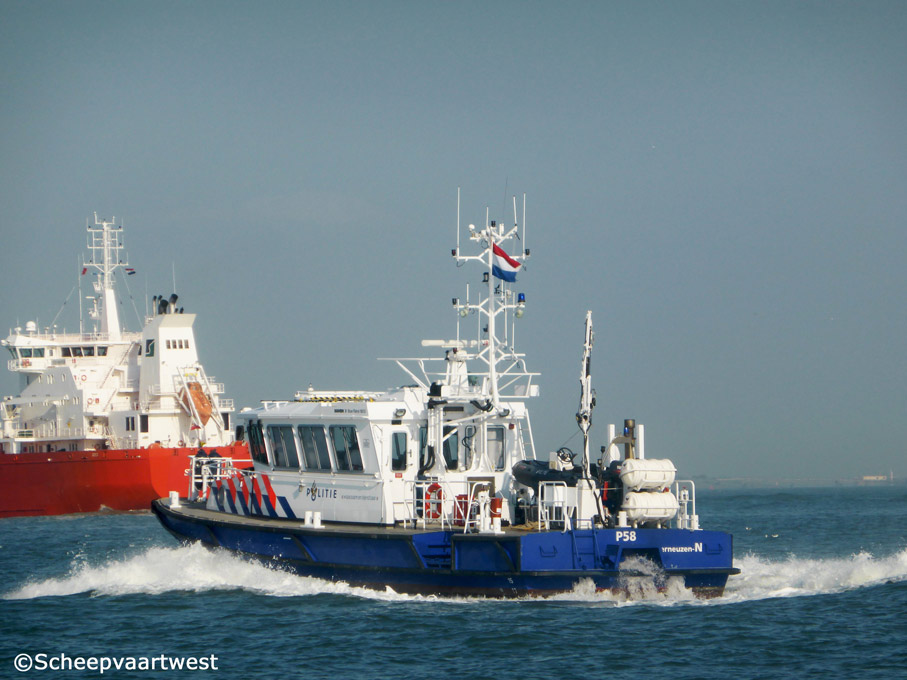

Westerschelde 04 April 2018 |
 |
 |
|
| Westerschelde 04/04/18 | Westerschelde 16/07/14 | |
|
Name |
P58 |
|
Type |
Patrol vessel - Police boat |
|
Call sign |
PFDB |
|
Flag |
The Netherlands |
|
Port of registry |
Terneuzen |
|
GT |
42 t |
|
Length |
18,80 m overall 18,00 m between perpendiculars |
|
Breadth |
5,25 m |
|
Draught |
1,30 m |
|
Air draft |
3,50 m |
|
Depth |
2,20 m |
|
Speed |
21,6 knots |
|
Built |
2001 |
|
Builder |
Damen Shipyards |
|
Yard number |
8904 |
|
Hull material |
Light alloy |
|
Continuous decks |
1 |
|
Main engine |
2x MTU 8V183TE92 - 4 stroke single acting 8 cylinder 128 x 142 mm diesel engines- total 910 kW / 1.236 hp at 2.300 rpm Built: 2000 Start type: Electrical starter Builder: MTU Motoren- und Turbinen-Union Friedrichshafen, Friedrichshafen - Germany |
|
Gearbox |
2x Reverse ZF IRM350A |
|
Propellers |
2x Solid inox propellers - at 1.108 rpm 4 blades |
|
Electric installations |
380/220 Volt 50 Hz |
|
Generators |
1x Onan MDKAE - 4 cylinder 87 x 92 mm diesel generatorset 20 kVA - 16 kW - 37 hp at 1.500 rpm Built: 2000 |
|
Bow thruster |
1x Promac - 18 KW |
|
Tank capacities |
Potable water: 0,22 m³ Fuel: 2,20 m³ Sewage: 0,35 m³ Bilge water: 0,38 m³ |
|
Anchor equipment |
Length: 75,00 m Weight: 40 kg |
|
Lifting equipment |
1x Deck crane Fassi hydraulic |
|
Navigation & communications |
1x Alphatron Radar 1x Rudder Indicator 1x Automatic River Pilot System 1x Fluxgate Compass 1x Multifunctional Echo Sounder 1x Wind Measuring System 1x Rate Of Turn Indicator 1x Colour Echo Sounder 1x Electronic Chart System 1x EPIRB 1x SART 1x Portable GMDSS 2x VHF 1x Navtex |
|
Owner |
Korps Landelijke Politiediensten Driebergen - K.L.P.D. The Netherlands |
|
Latest data adjustment |
26 January 2015 |
