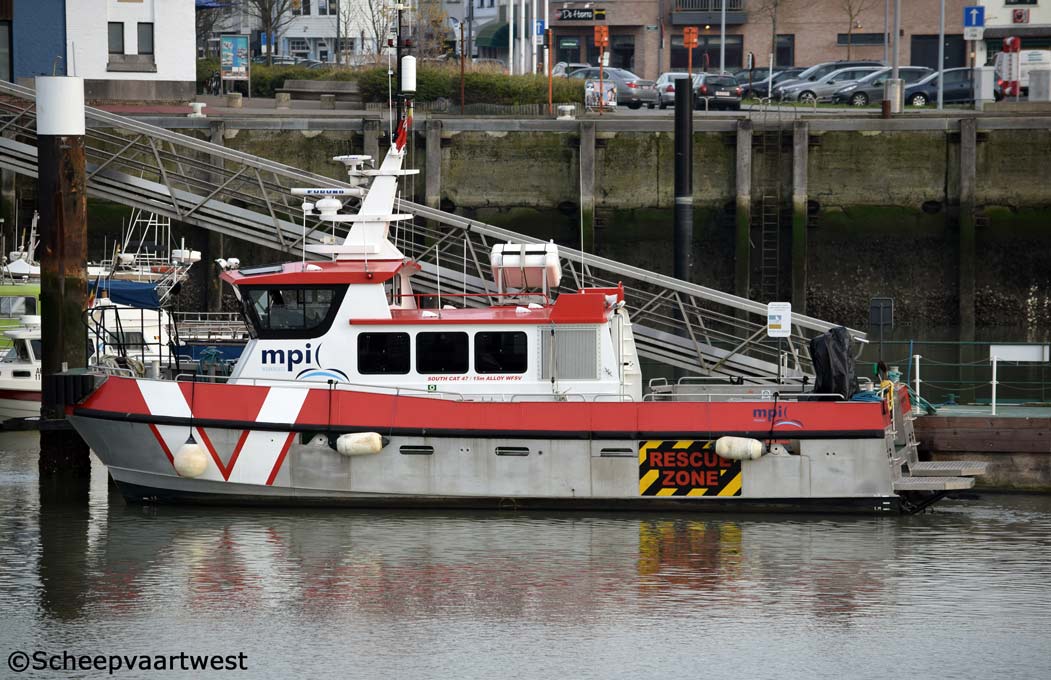

MPI Sancho Panza 01

Zeebrugge 28 November 2014



Name

MPI SANCHO PANZA

Type

Wind farm service vessel

High speed catamaran craft type South Cat 47

Call sign

2AYT3

Flag

United Kingdom

Port of registry

Middlesbrough

GT

18 t

DWT

32 t

Length

15,00 m overall

Breadth

6,40 m overall

Draught

Summer: 1,00 m

Speed

Service 25,0 knots

Built

2008

Builder

South Boats

Special Projects Ltd.

Hull material

Marine grade aluminium

Main engine

2x Scania DI 16 43M diesel engines each 748 hp at 2.100 rpm

Gearbox

2x Disc MGX5135C (Quickshift) - 1,28:1 reduction

Propulsion

2x Ultra Dynamics UJ451 Water-Jets ONAN MDKBM 9,5 kW, 50Hz at 1.500 rpm

Deck space

7,2 m², forward

18,15 m², aft

Cargo

5,0 t

Deck equipment

Palfinger PK4501M fully folding knuckle boom crane

Hercules 1 tonne Hydraulic Capstan

South Boats MkV Bow Loading Platform®

Full height deck store and below deck store space

Salt and fresh water deck wash system

Hercules hydraulic salt water pressure washer

Load tested cargo lashing eyes

Tank capacities

Fuel oil: 3.640 litres

Fresh water: 200 litres

Black water: 80 litres

Hydraulics: 75 litres

Crew

2

Passenger facilities

12 crew seats - arm rests, head rests

Air-conditioned passenger lounge

Hot water boiler, microwave, hob, fridge

Facilities for entertainment system

Storage under seats

Toilet, shower & wash basin

Navigation & communication

Transas 4000 chart plotter (24V PC)

Furuno M1944 Black Box Radar (48” 4kW Open Scanner)

Furuno GD1929 Black Box Chart Plotter/Video Sounder

C-MAP Charting, ARPA, PAL & AIS Options

Furuno Integrated GPS Receiver

Furuno GP-120 GPS System

Furuno FA-150 Class A AIS Transceiver

Furuno SC-50 Satellite Gyro Compass

Furuno Nav-Pilot 500 Auto Pilot

2x Sailor RT5022 Class A GMDSS VHF Radios

Furuno LH-3000 Loud Hailer

Taiyo Musen TDL1550 VHF Direction Finder & MOB

6x camera CCTV system c/w black box recorder

2x Jotron TRON SART

Jotron TRON 40S FB5 EPIRB

2x hand-held VMF plus spare batteries

Operator

Vroon Offshore Services

Owner

MPI Offshore Ltd.
United Kingdom

Latest data adjustment

11 December 2014
