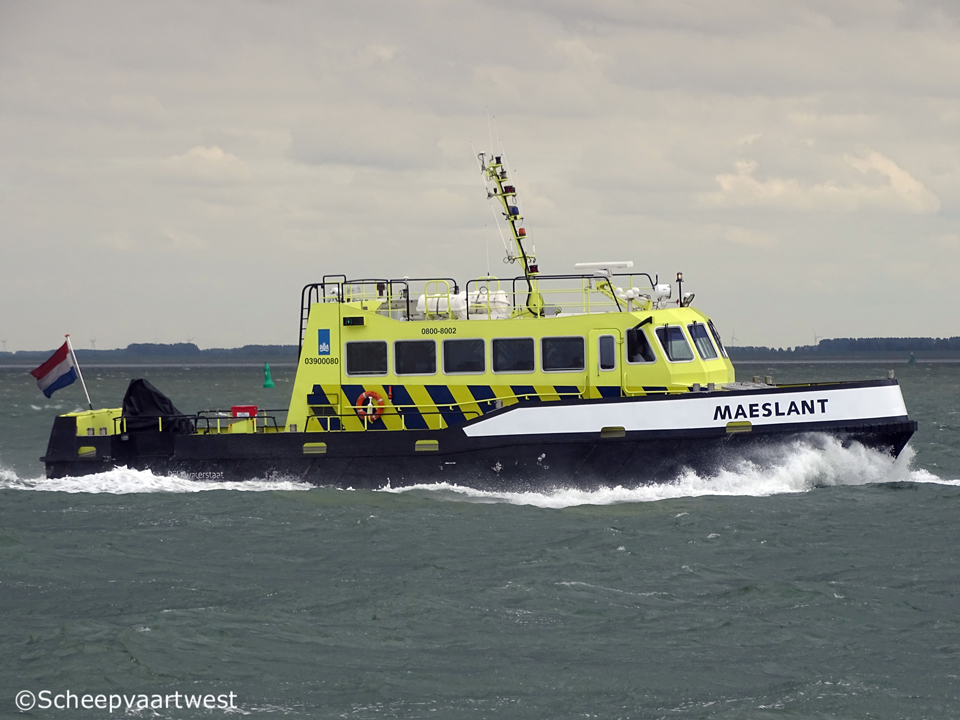

Maeslant 04

Westerschelde 23 August 2018

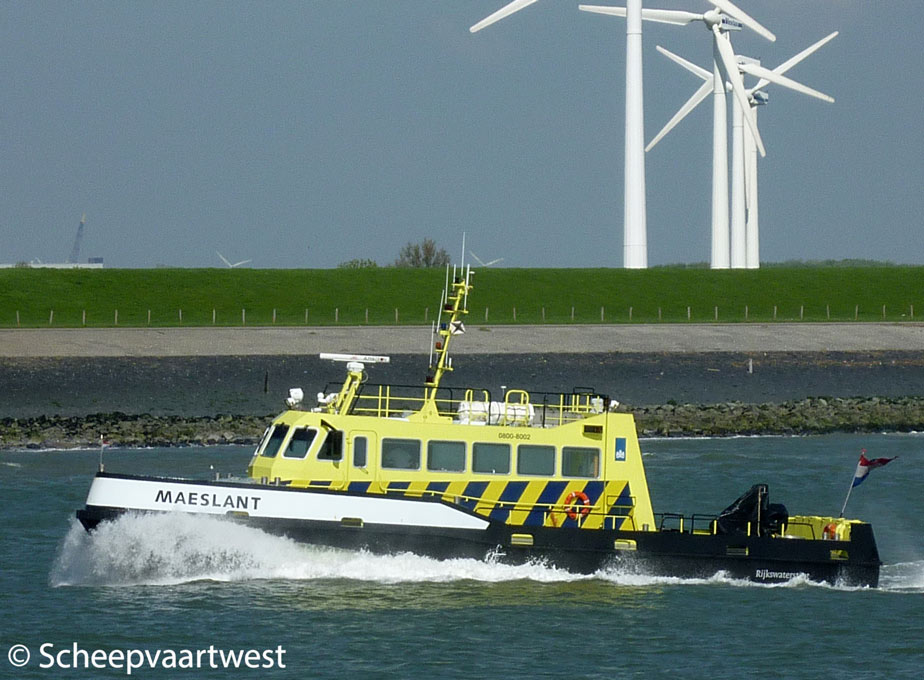

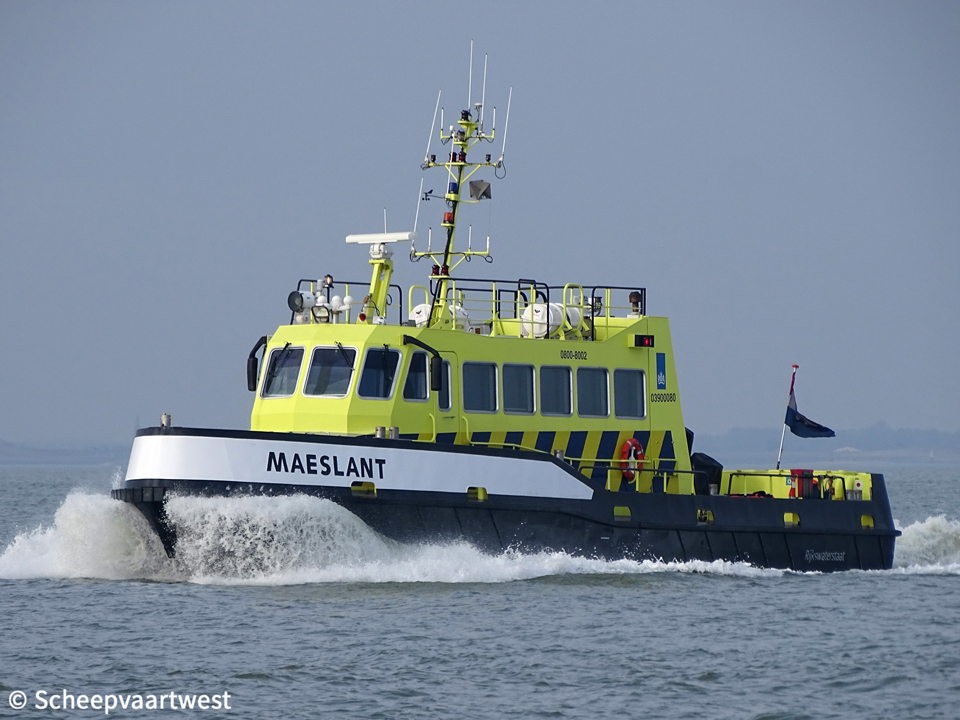

Maeslant 01   Maeslant 05
Vlissingen 14/05/12   Westerschelde 24/03/18



Name

MAESLANT

Type

Customs patrol boat - Coastal area

Classification

Bureau Veritas

IMO-number

8980713

ENI-number

03900080

Call sign

PBLO

Flag

The Netherlands

Port of registry

Rijswijk

GT

72 t

NT

21 t

Length

22,62 m overall

22,50 m between perpendiculars

Breadth

5,20 m

Draught

1,75 m

Freeboard

1.055 mm

Depth

2,70 m

Speed

15,0 knots

Built

2004

Launch date

25/11/2003

Date of completion

24/01/2004

Builder casco

Firma Van Santen

Sliedrecht

The Netherlands

Builder completion

Machinefabriek Padmos Stellendam B.V.

Bruinisse

The Netherlands

Yard number

169

Hull material

Steel

Watertight bulkheads

4

Continuous decks

1

Main engine

2x MAN D2842LE410 - 4 stroke 12 cylinder 128 x 142 mm combustion engine total 1.400 kW / 1.902 hp at 2.200 rpm

Starter type: Electrical

Built: 2003

Builder: MAN Nutzfahrzeuge AG (Werk Nurnberg) - Germany

Gearbox

2x Reverse reduction gear ZF Marine ZF1900

Propellers

2x Screw propeller solid - at 856 rpm

Diameter: 950 mm

Electric installations

400 / 220 V - 50 Hz

Generators

1x Onan MDKBF - 5 cylinder 87 x 92,4 mm diesel engine 22 kW / 30 hp at 1.500 rpm coupled with generator 28,1 kVA

Built: 2003

Bow thruster

1x Promac bow thruster HFP 60-480 - 61 hp

Anchor equipment

1

Lifting equipment

1x Effer Crane 2600 2-E - SWL 2,5 t @ 1,00 m

Owner

Rijkswaterstaat Rijksrederij, Rijswijk (ZH) - The Netherlands

Previous owners

2004 - 2009 Rijkswaterstaat dir. Zuid-Holland, Rotterdam - The netherlands

Latest data adjustment

13 May 2020
