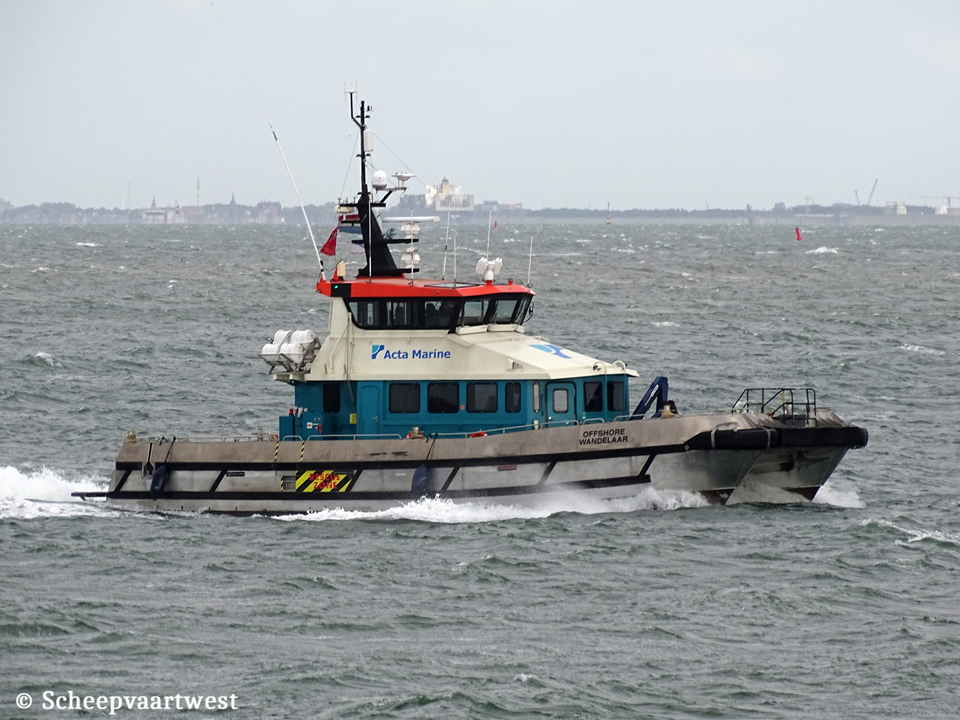

Offshore Wandelaar 01

Westerschelde 29 June 2020



Name

OFFSHORE WANDELAAR

Type

Wind farm service catamaran vessel - Crew transfer vessel

Call sign

2FMO9

Flag

United Kingdom

Port of registry

Beaumaris

GrT

53,52 t

DWT

24 t

NT

46 t

Displacement

Max: 70 t

Length

21,00 m overall

Breadth

7,30 m overall

Draught

1,20 m

Depth

2,20 m

Speed

Max: 24,0 knots

Service: 20,0 knots

Builder

South Boats

Main engine

2x MTU / 10V2000 M72 combustion engine each 900 kW

Gearbox

ZF 3000

Propulsion

2x Waterjet Ultra Dynamics UJ575

Auxiliary engines

1x Onan e-QD MDKBP - 400V-19,5 kW

Deck equipment

  • Hydraulic deck crane Palfinger PK6500M

  • Load-range deck crane: 3.140 kg at 1,700 m 220 kg at 13,00 m

  • Fuel transfer system: 58 Ltr./min with 40,00 m height above deck

  • Moonpool: 1x 0,65 m

  • Hydraulic Power Take Off: 3-line 20 kW

Max. deck load

1,2 t/m²

Free deck space

Forward: 22 m³

Aft: 27 m³

Total: 49 m³

Cargo capacity

Forward: 8 t

Aft: 4 t

Total: 12 t

Tank capacities

Fuel: 2x 3.600 litres

Fresh water: 700 litres

Accommodation

12x Approved suspension seats

1x Shower

1x Toilet

1x Mess area

Navigation & communication

  • AIS Class A: Furuno FA150

  • ECDIS: Furuno FEA 2107

  • NavNet: Furuno NavNet

  • Communication: GMDSS A2, SART, EPIRB, VHF

  • Broadband Internet: Globe Surfer III

  • Satcom: IRIDIUM Open Port

  • Safety & Rescue: Sea Marshall SAR System, Life rafts, Rescue Zone, Jason’s Cradle

Crew

2x Cabin with bed

Operator

Acta Marie B.V.

Het Nieuwe Diep 39-d

1781 AE Den Helder

The Netherlands

Registered owner

Offshore Wind Services B.V.

Sister ships

Offshore West Hinder

Latest data adjustment

11 August 2021
