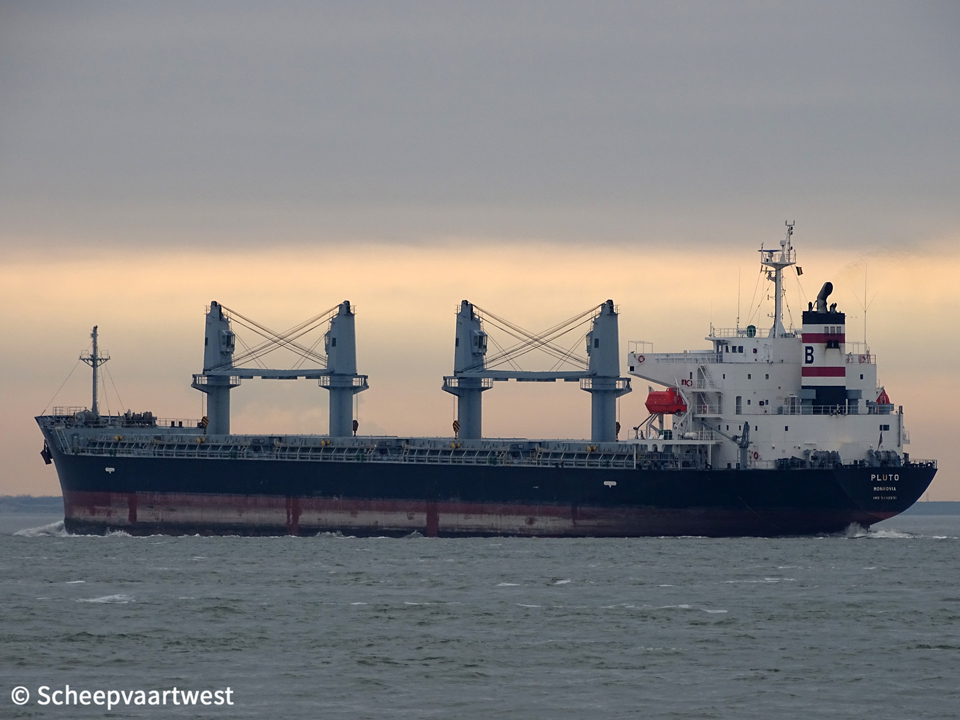

Pluto IMO 9432531 01

Westerschelde 24 March 2018



Name

PLUTO

Type

Bulk carrier

IMO-number

9432531

Call sign

D5FC4

Flag

Liberia

Port of registry

Monrovia

GT

19.785 t registered

DWT

Summer: 32.092 t

NT

10.395 t registered

Length

175,53 m overall

Breadth

29,40 m moulded

Draught

Max: 9,64 m

Moulded L x B x D

167,00 x 29,40 x 13,70 m

Registered L x B x D

167,76 x 29,40 x 13,70 m

Freeboard

Summer: 4.105 mm

Depth

13,70 m moulded

Speed

Max: 16,1 knots

Built

2014

Keel laid

20/12/2011

Launch date

17/02/2014

Date of completion

17/04/2014

Builder

Hakodate Dock Co., Ltd.

Japan

Yard number

840

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x Mitsubishi 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x1.840 mm combustion engine 6.840 kW at 129,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 430 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 7,0 bat

Evaporation: 2,30 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

3x Generatorsets total 1.080 kVA

Cargo hold capacity

Bale: 39.272 m³

Grain: 40.503 m³

Tank capacities

Fuel oil: 1.387 m³

Fresh water: 200 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Crew size

23

Manager

Johann M.K. Blumenthal GmbH & Co. Kg

Palmaille 120

22767 Hamburg

Germany

Registered owner

Epsilon Shipholding Ltd.

Latest data adjustment

12 May 2020
