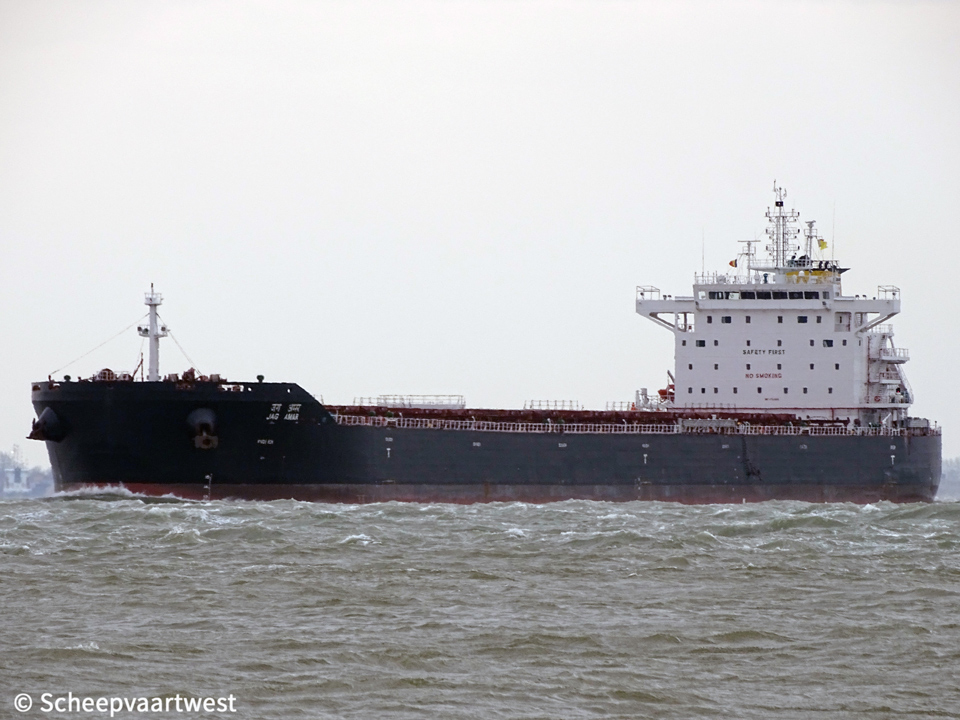

Jag Amar 01

Westerschelde 18 March 2018

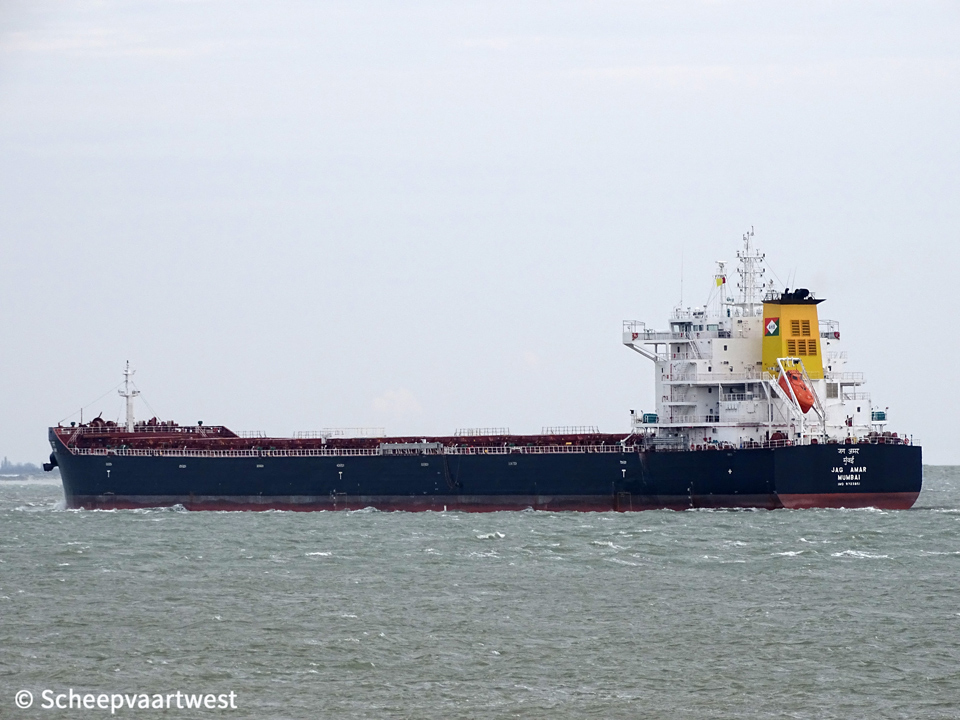

Jag Amar 02
Westerschelde 18/03/18









Name

JAG AMAR

Type

Bulk carrier - Carriage of dangerous goods - Kamsarmax

IMO-number

9723851

Call sign

AWLE

Flag

India

Port of registry

Mumbai

GT

44.127 t

DWT

Summer: 82.084 t

NT

27.581 t

Length

229,00 m overall

225,30 m between perpendiculars

Breadth

32,26 m moulded

Draught

Max: 14,47 m

Depth

20,00 m moulded

Speed

Max: 14,5 knots

Built

2017

Keel laid

26/06/2014

Delivery date

11/01/2017

Builder

Jiangsu New Yangzi Shipbuilding Co., Ltd.

Jingjiang Park Of Jiangyin Economic Development Zone Of Jiangsu Province, 214532 China

Yard number

YZJ2013-1111

Hull material

Steel

Main engine

1x MAN-B&W/Hudong Heavy Machinery 6S60ME-C8.2 - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 9.801 kW at 90,3 rpm

Manufacturer: Hudong Heavy Machinery Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Changzhou Zhonghai Marine Propeller Co., Ltd.

Boilers

Fire exhaust gas composite boiler - 9,0 bar

Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd.

Generators

3x Daihatsu 6DE-18 - 6 cylinder 185 x 280 mm diesel engines each 690 kW at 900 rpm coupled with generators each 630 kW

Manufacturer: Daihatsu Diesel Mfg. Co. Ltd. / HHI Electro Electric System

Cargo hold capacity

97.738,4 m³

Tank capacities

Fresh water: 534,50 m³

Fuel oil: 2.664,3 m³

Lub oil: 208,10 m³

Ballast: 35.486,90 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

Manufacturer: Jiangyin Chengjiang Ships Equipment Co., Ltd.

1x Provision crane - SWL 4,0 t

Manufacturer: Shanghai Heng Yuan Marine Equipment Co. Ltd.

1x Suez canal boat crane - SWL 4,0 t

Manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd.

Cargo gear

Gearless

Crew

26

Manager

Great Eastern Shipping Company Ltd.

Registered owner

Great Eastern Shipping Company Ltd.

Ocean House, 134/A, B Wing, BDD Chawls Worli, Worli

Mumbai, Maharashtra 400018

India

Latest data adjustment

20 March 2020
