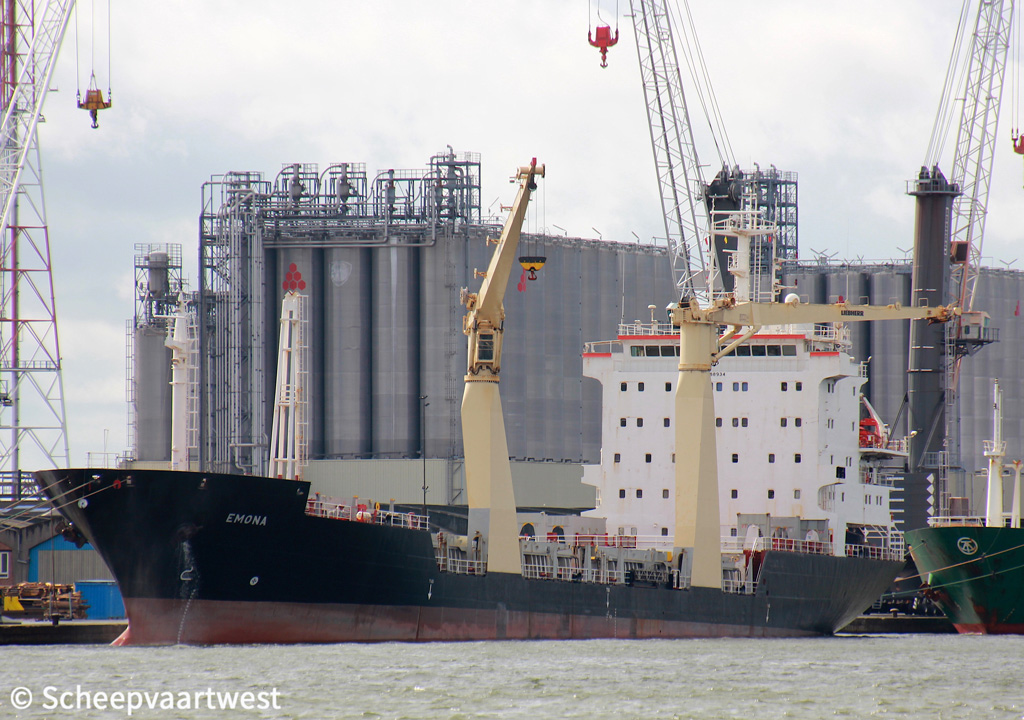

Emona 01



Name

EMONA

Type

Multi-purpose cargo ship - Singledecker - Equipped for carriage of containers

IMO-number

9188934

Call sign

9HVF9

Flag

Malta

Port of registry

Valletta

GT

7.775 t

DWT

Summer: 9.793 t

Number of 20ft containers

In hold: 216

On deck: 415

Total: 631

Container capacity 14t

In hold: 104 + 4 TEU

On deck: 183 + 41 TEU

Total: 287 + 45 TEU

Length

126,08 m overall

Breadth

20,28 m

Draught

Summer: 8,29 m

Depth

10,40 m

Speed

14,0 knots

Built

2009

Date of completion

05/2009

Builder

Bulyard Shipbuilding Industry

Varna

Bulgaria

Yard number

288

Hull material

Steel

Main engine

1x MaK 6M43 C - 6 cylinder combustion engine

Propellers

1x Pitch propeller

Bow thruster

Fitted

Number of holds

3

Hold 1: 15,00 x F-4,5 / A-13,10 x 8,60 m

Hold 2: 30,70 x F-15,50 / A-15,50 x 9,90 m

Hold 3: 31,50 x F-15,30 / A-15,50 x 9,90 m

Cargo hold capacity

Grain / bale:

Hold 1: 1.928 / 1.908 m³

Hold 2: 4.959 / 4.917 m³

Hold 3: 5.061 / 5.013 m³

Total: 11.949 / 11.838 m³

Holds ventilation

Mechanical type

Number of hatches

3

Hatch 1: 14,20 x 10,50 m

Hatch 2: 25,50 x 15,50 m

Hatch 3: 25,50 x 15,50 m

Hatch type

Folding Type - McGregor

Cargo gear

2x Electro-hydraulic cranes - SWL 40,0 t each

Crew size

20

Manager

IHB Shipping Co.

Building Of "Bulyard Ship-Building Industry"

9000 Varna

Bulgaria

Registered owner

Emona Ltd.

Latest data adjustment

14 March 2020
