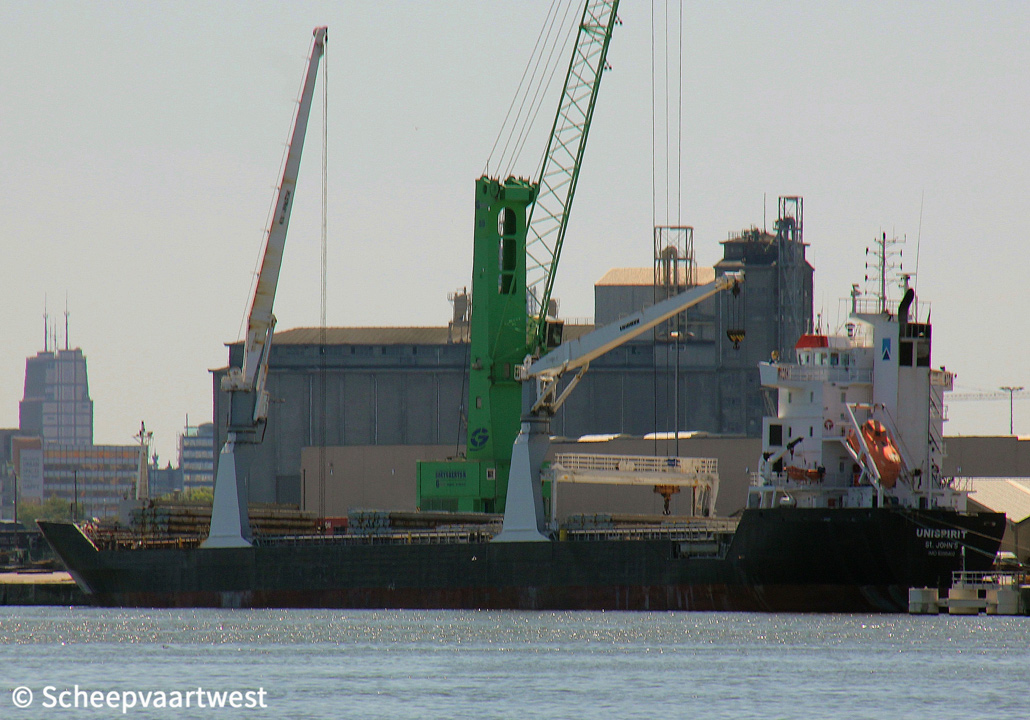

Unispirit 01

Antwerpen 23 July 2019



Name

UNISPIRIT

Previous names

2006 - 03/2006 Beluga Nomination

03/2006 - 04/2009 BBC Ireland

04/2009 - 07/2011 Beluga Nomination

07/2011 - 10/2011 Nomination

10/2011 - 08/2017 Thorco Attraction

Type

General cargo ship - Heavy-lift - Container

IMO-number

9356402

Call sign

V2BS1

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

6.296 t

DWT

Summer: 9.775 t

NT

3.617 t

Number of 20ft containers

On deck: 210

In hold: 264

Total: 474

Container capacity 14t

164

Reefer points

20

Length

132,20 m overall

123,84 m between perpendiculars

Breadth

15,87 m

Draught

Summer: 7,33 m

Freeboard

1.929 mm

Depth

9,65 m

Speed

Service: 14,8 knots

Built

2006

Keel laid

31/12/2004

Launch date

01/02/2006

Date of completion

13/03/2006

Builder

Volharding Shipyard B.V.

Hoogezand

The Netherlands

Yard number

625

Hull material

Steel

Hull type

Single hull

Watertight compartments

6

Continuous decks

1

Main engine

1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.217 hp at 600 rpm

Builder: Caterpillar Motoren Gmbh & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 148,0 rpm

Boilers

1x CHR 79,50 m² - 10,0 bar

1x CHO 17,50 m² - 10,0 bar

Electric installations

Power voltage: 440 V

Lighting voltage: 230 V

Frequency: 60 Hz

Shaft generator

1x 390 kVA - 312 kW

Generators

2x Main diesel generatorsets each 394 kVA - 315 kW - 455 hp

Emergency generator

1x Diesel generatorset 87 kVA - 70 kW - 116 hp

Bow thruster

1x 500 kW / 679 hp

Number of cargo holds

2x Box type

Hold 1: 40,36 x 13,20 m

Hold 2: 52,54 x 13,20 m

Cargo hold capacity

Hold 1: bale/grain: 5.028,19 m³
Hold 2: bale/grain: 7.010,23 m³

Total: 12.038,42 m³

Hold space

Hold 1:

Tank top: 462,70 m²

Tweendeck: 478,40 m²

Hatchcover: 505,56 m²

Total 1.446,66 m²

Hold 2:

Tank top: 685,40 m²

Tweendeck: 690,37 m²

Hatchcover: 673,20 m²

Total: 2.048,97 m²

Hold ventilation

12x Air changes per hour

Number of hatches

2

Max permitted loads

Tanktop:

Hold 1: 14,7 t/m²

Hold 2: 20,0 t/m²

Tween deck: 2,5 t/m²

Hatch cover: 1,75 t/m²

Tank capacities

HFO: 540,73 m³

MGO: 59,70 m³

Ballast: 3.537,88 m³

Fresh water: 73,11 m³

Lifting equipment

1x Gantry crane to remove hatchcover panels

Cargo gear

2x Liebherr electro hydraulic cranes - SWL 40 t each

Combinable SWL 80 t

Crew size

12

Manager

MarShip Management GmbH & Co. KG

ISM manager

Held Bereederungs GmbH & Co. KG

Boschstraße 21

49733 Haren (Ems)

Germany

Registered owner

Thorco Attraction K/S

Latest data adjustment

21 February 2020
