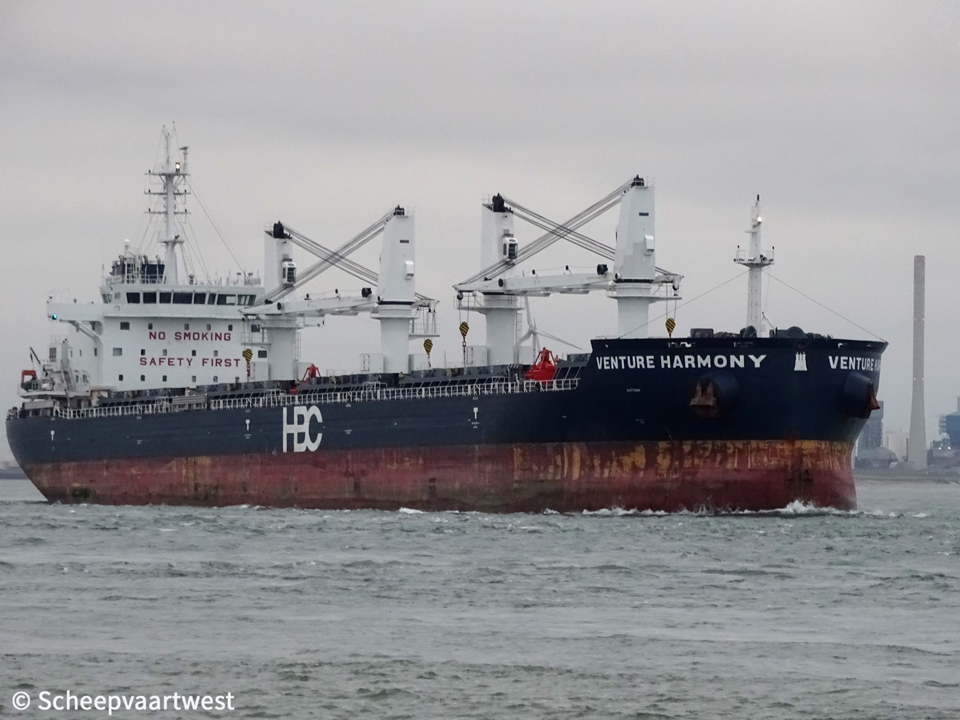

Venture Harmony 01

Westerschelde 24 October 2018



Venture Harmony 02
Westerschelde 24/10/18









Name

VENTURE HARMONY

Type

Geared bulk carrier - handysize

IMO-number

9670755

Call sign

D5IG8

Flag

Liberia

Port of registry

Monrovia

Previous flags

Republic of Singapore, Singapore City

GT

26.411 t

DWT

Summer: 43.460 t

Length

189,99 m overall

Breadth

30,00 m

Draught

Max: 10,75

Depth

15,00 m

Speed

15,5 knots

Built

2015

Delivery date

28/06/2015

Builder

China Changjiang National Shipping Group (Qingshan Shipyard)

Qingshan

China

Yard number

QS43500

Hull material

Steel

Main engine

1x MAN-B&W 5S50ME-B9.3 - 2 stroke 5 cylinder low speed combustion engine 6.050 kW at 99,0 rpm

Propellers

1

Boilers

1x Composite boiler

Generators

3x Anqing Daihatsu 6Dk-20e main diesel generatorsets each 710 kW

Number of holds

5

Cargo hold capacity

Grain:

Hold 1: 8.944,5 m³

Hold 2: 13.098,5 m³

Hold 3: 10.490,7 m³

Hold 4: 13.096,7 m³

Hold 5: 9.669,4 m³

Total: 55.299,8 m³

Bale:

Hold 1: 8.596,2 m³

Hold 2: 12.611,3 m³

Hold 3: 10.079,0 m³

Hold 4: 12.611,0 m³

Hold 5: 9.349,9 m³

Total: 53.247,4 m³

Number of hatches

5

Cargo gear

4x Deck cranes - SWL 30,0 t each

Crew size

25

Manager

HBC - Hamburg Bulk Carriers GmbH Co., KG

Neumühlen 15

22763 Hamburg

Germany

Operator

TMS Ship Management GmbH & Co KG

Latest data adjustment

24 January 2020
