Westerschelde 06 May 2019 |
|
Name |

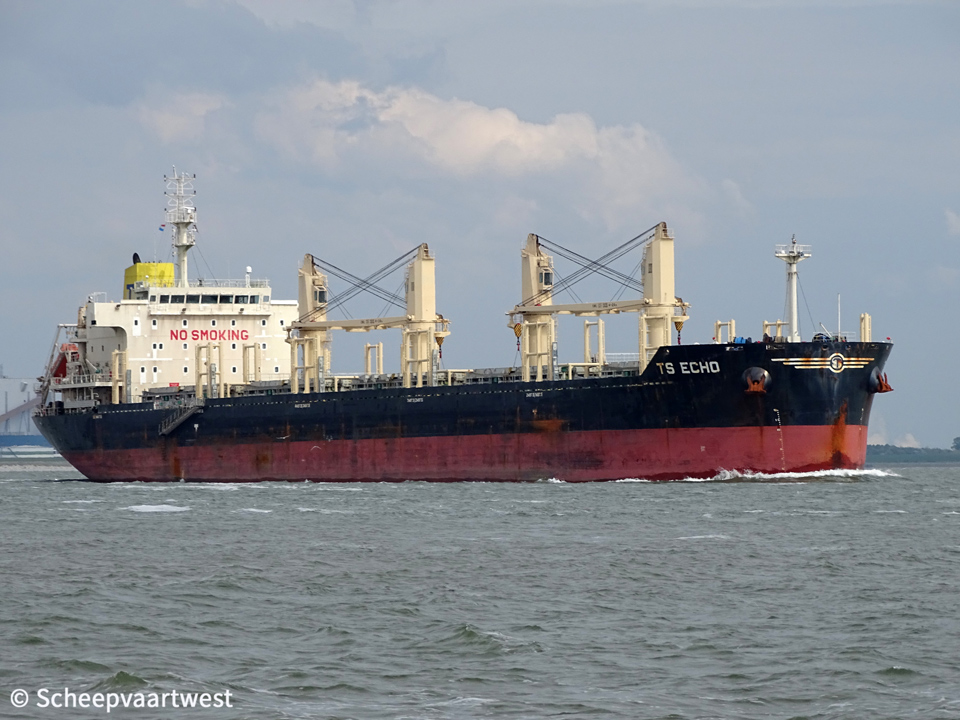

TS ECHO |
|
Type |
Bulk carrier - Handymax |
|
IMO-number |
9719367 |
|
Call sign |
V7RS5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
24.124 t |
|
DWT |
38.863 t |
|
NT |
12.855 t |
|
Length |
182,00 m overall 178,70 m between perpendiculars |
|
Breadth |
30,00 m moulded |
|
Draught |
Max: 10,50 m |
|
Forecastle |
13,10 m |
|
Deckhouse |
20,00 m |
|
Freeboard |
4.333 mm |
|
Depth |
14,80 m moulded |
|
Speed |
14,5 knots |
|
Built |
2016 |
|
Date of completion |
16/06/2016 |
|
Builder |
Shanhaiguan New Shipbuilding Industry Co., Ltd. |
|
Hull material |
Steel |
|
Hull type |
Double side skin |
|
Bulkheads |
6 |
|
Number of decks |
1 Upper deck |
|
Main engine |
1x Dalian/Wärtsilä 5RT-flex50-D - 5 cylinder 500 x 2.050 mm combustion engine 7.044 kW at 110,0 rpm Build: 30/06/2015 Builder: Dalian Marine Diesel Co.,Ltd. - China |
|
Propellers |
1 |
|
Boilers |
1x Boiler - 6,0 bar Builder: Saacke Qingdao Marine Boiler Co.,Ltd. Qingdao - China |
|
Generators |
3x Nishishiba NTAKL-VE diesel generatorsets each 650 kW - 450 Volt |
|
Number of cargo holds |
5 |
|
Cargo hold capacity |
Grain: Hold 1: 8.020,4 m³ Hold 2: 10.367,4 m³ Hold 3: 10.379,9 m³ Hold 4: 10.379,4 m³ Hold 5: 9.611,4 m³ Total: 48.758,5 m³ |
|
Number of hatches |
5 1x 16,80 x 16,80 m 4x 19,20 x 20,00 m |
|
Tank capacities |
Ballast: 14.048 m³ |
|
Cargo gear |
4x Cranes - SWL 36,0 t each |
|
Operator |
Dalian Tiger Shipping Ltd. 22nd Floor, China Bank Plaza 15, Renmin Lu, Zhongshan Qu Dalian China |
|
Registered owner |
Ocean Crystal Shipping Ltd. |
|
Latest data adjustment |
11 January 2020 |
