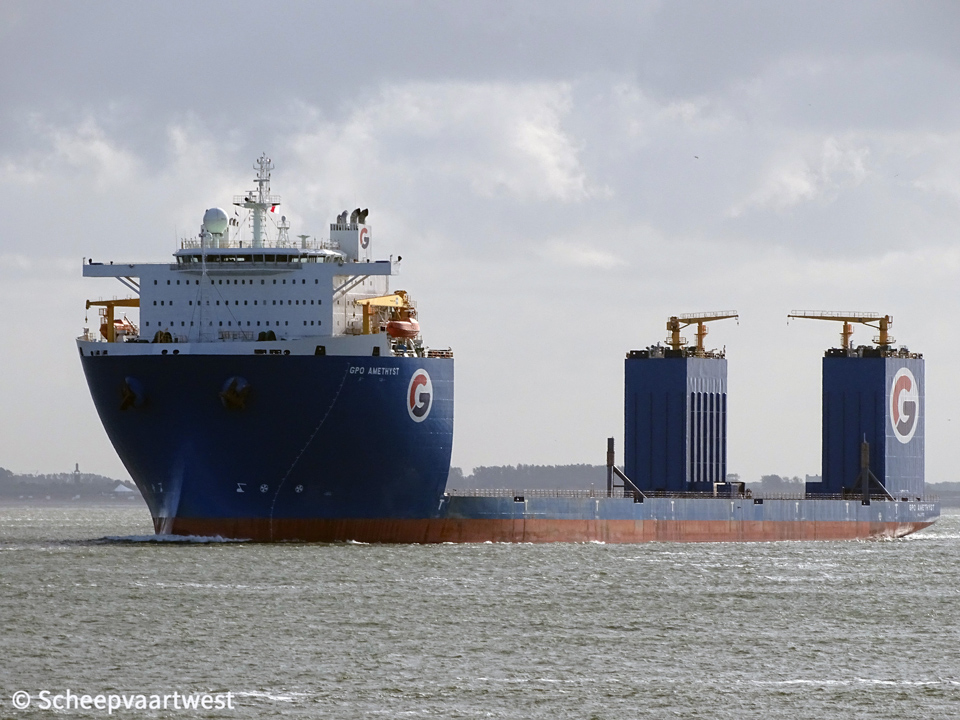

GPO Amethyst 01

Westerschelde 04 May 2019

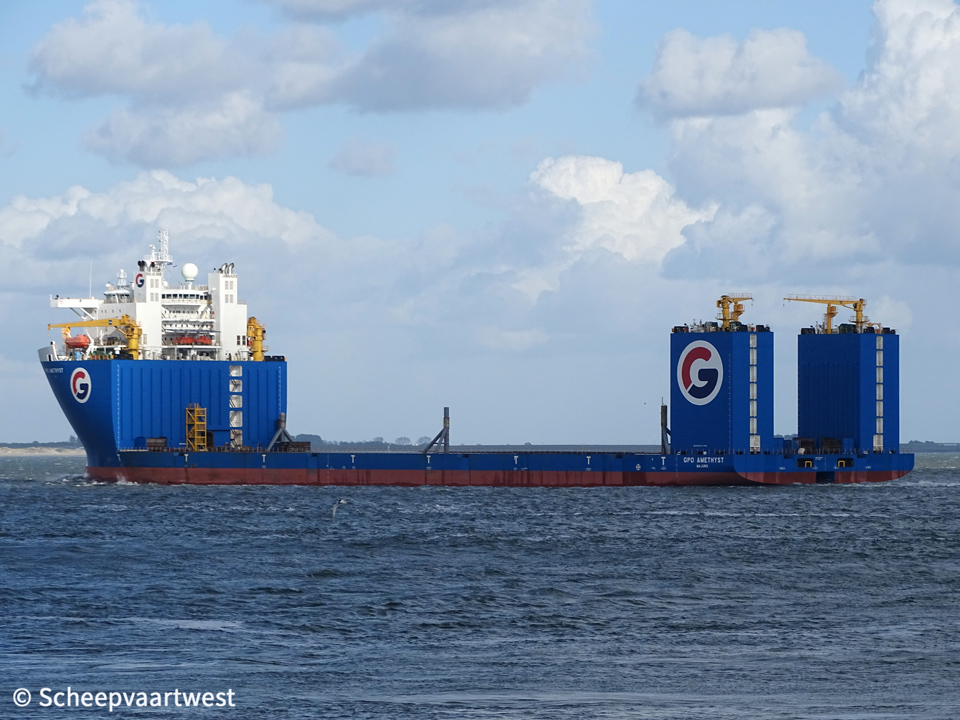

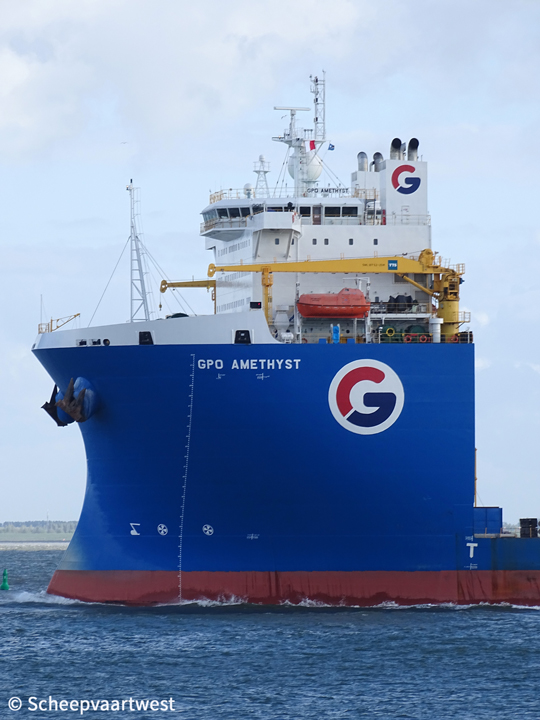

GPO Amethyst 03   GPO Amethyst 02
Westerschelde 04/05/19   WS 04/05/19













Name

GPO AMETHYST

Type

Semi-submersible heavy transport vessel

IMO-number

9760433

Call sign

V7KH5

Flag

Marshall Islands

Port of registry

Majuro

GT

49.091 t

DWT

63.581 t

NT

14.728 t

Length

225,00 m overall

215,18 m between perpendiculars

Breadth

48,02 m extreme

Draught

Summer: 10,64 m

Depth

13,80 m moulded

Submerged depth

15,00 m above deck

Speed

Max: 16,0 knots

Built

2018

Keel laid

30/12/2015

Launch date

08/08/2017

Date of completion

08/05/2018

Builder

CSBC Corporation

Keelung

Taiwan

Yard number

1058

Hull material

Steel

Engines

4x MAN 12V32/44CR - 12 cylinder combustion engine

Propulsion

2x MAN-B&W diesel electric engine 8.000 kW

Propellers

2x Fixed controllable pitch propellers

Boilers

2x Thermal oil heater, oil fired

2x Thermal oil heater, exhaust heated

Generators

2x MAN 6L21/31 diesel generatorset

Emergency generator

1x MAN D2866 LXE20 diesel generatorset

Stern Thrusters

2x 1.000 kW each

Free deck space

183,00 x 48,00 m

8.784 m²

Max deck load

30 t/m²

Tank capacities

Ballast: 121.624 m³

Anchor equipment

Length: 156,00 m

Diameter: 78 mm

Ballast system

4x Main pumps 4.000 m³/h in fore pump room

2x Pumps 1.000 m³/h in aft pump room

2x Drain ejectors of 450 m³/h

Double ringline configuration

Ballast tanks in buoyancy towers connected by flexible pipes

76 ballast tanks for high flexibility

Accommodation

52 persons

Manager

Wilhelmsen Ship Management (Norway) AS

Operator

GPO Heavylift

Filipstad Brygge 1

0252 Oslo

Norway

Registered owner

Xiang CR5 HK International Ship Lease Co., Ltd.

Latest data adjustment

10 January 2020
