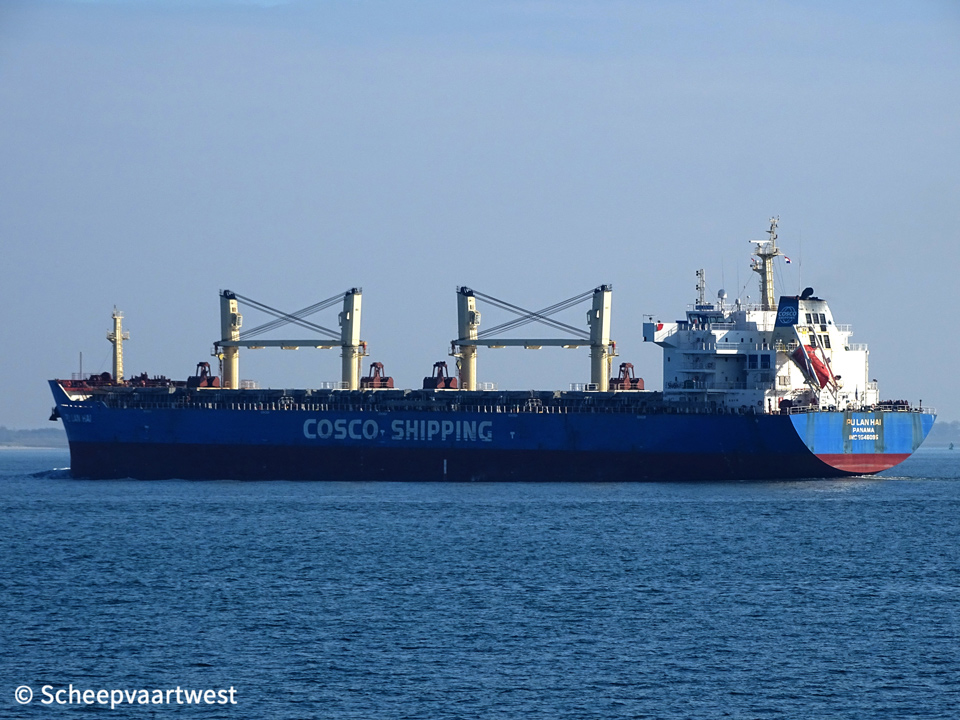

Pu Lan Hai 01

Westerschelde 21 October 2018



Name

PU LAN HAI

Type

Bulk carrier

IMO-number

9546095

Call sign

3FEB2

Flag

Republic of Panama

Port of registry

Panama City

GT

33.044 t

DWT

Summer: 58.539 t

Length

189,99 m overall

Breadth

32,26 m

Draught

Max: 12,80 m

Depth

18,00 m

Speed

Service: 14,2 knots

Built

2008

Builder

COSCO (Dalian) SY Co.

Beijing

China

Yard number

158

Hull material

Higher tensile steel

Continuous decks

1

Main engine

1x Dalian/MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm

Builder: Dalian Marine Diesel Co., Ltd. - China

Propellers

1x Fixed pitch propeller - aft at 127,0 rpm

Generators

3x Yanmar 6EY18AL - 4 stroke 6 cylinder 180 x 280 mm diesel engines each 660 kW coupled with generators each 600 kW

Number of cargo holds

5

Hold 1: 10,70 / 23,8 x 27,88 m

Hold 2: 23,82 x 28,70 m

Hold 3: 23,82 x 27,06 m

Hold 4: 23,82 x 28,70 m

Hold 5: 23,82 / 9,06 x 29,52 m

Cargo hold capacity

Grain: 71.634,09 m³

Bale: 68.200 m³

Number of hatches

5

Hatch cover type

Folding type

Cargo gear

4x Deck cranes - SWL 30,0 t each

Crew size

26

Manager

COSCO Bulk Carrier

Room 1110, Ocean Plaza, 1

Haihe Donglu, Hebei Qu, Tianjin, 300010

China

Registered owner

Pulanhai Shipping Inc.

Latest data adjustment

02 January 2020
