Westerschelde 03 July 2018 |
|
Name |

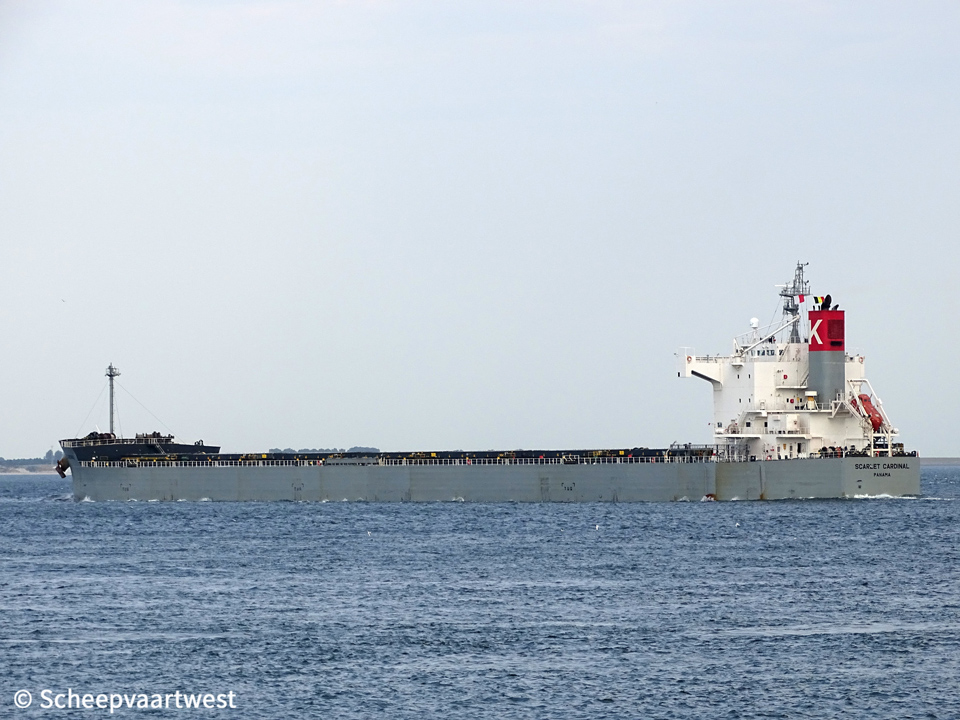

SCARLET CARDINAL |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading - Panamax |
|
IMO-number |
9544059 |
|
Call sign |
3FYE3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
42.010 t registered |
|
DWT |
Summer: 82.165 t |
|
NT |
27.239 t registered |
|
Length |
228,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,43 m |
|
Moulded L x B x D |
222,00 x 32,26 x 20,05 m |
|
Registered L x B x D |
222,54 x 32,26 x 20,05 m |
|
Freeboard |
Summer: 5.677 mm |
|
Depth |
20,05 m moulded |
|
Speed |
15,6 knots |
|
Built |
2014 |
|
Keel laid |
05/10/2010 |
|
Launch date |
01/11/2013 |
|
Date of completion |
28/02/2014 |
|
Builder |
Tsuneishi Shipbuilding Co., Ltd. |
|
Yard number |
1512 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 6S60MC-C (Mk 7) - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 9.710 kW at 97,4 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 560 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 2,22 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generatorsets total 1.600 kVA |
|
Number of holds |
7 |
|
Cargo hold capacity |
Grain: 97.294 m³ |
|
Number of hatches |
7 1x 14,20 x 13,80 6x 17,80 x 15,40 |
|
Hatchways type |
Mac Gregor side rolling-twin panel |
|
Tank capacities |
Fuel oil: 3.184 m³ Fresh water: 468 m³ Water ballast: 22.060 m³ |
|
Crew size |
22 |
|
Manager |
"K" Line RoRo Bulk Ship Management Co., Ltd. |
|
Operator |
Kawasaki Kisen Kaisha, Ltd. |
|
Registered owner |
Kikyou Ship Holding SA |
|
Latest data adjustment |
07 December 2019 |
