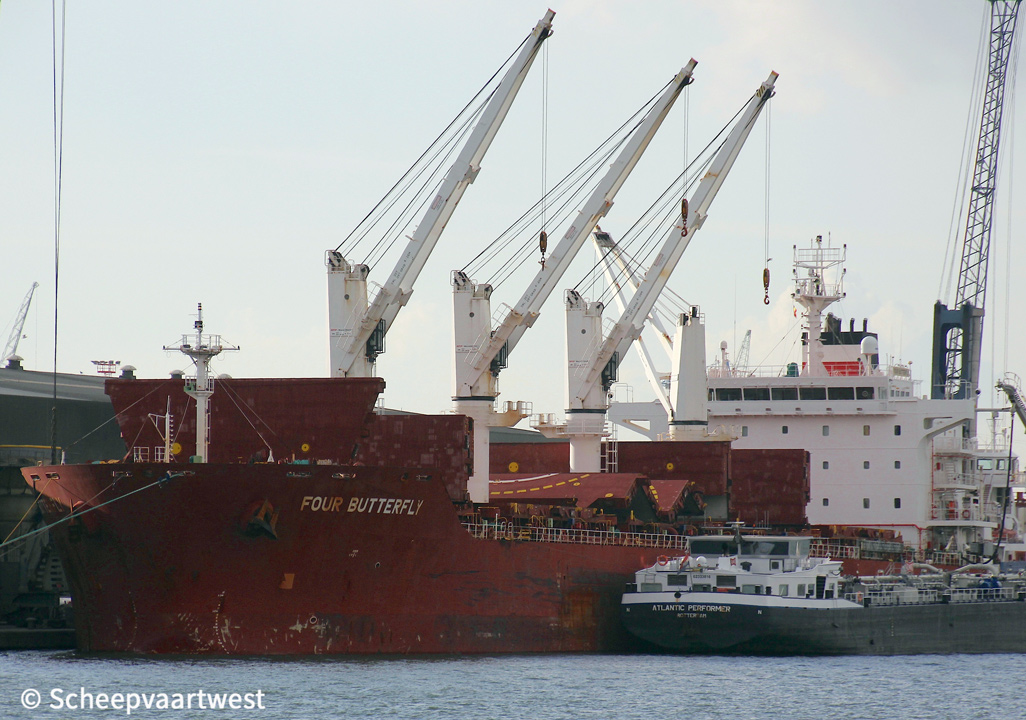

Four Butterfly 01

Antwerpen 19 November 2019



Name

FOUR BUTTERFLY

Type

Bulk carrier - Carriage of dangerous goods

IMO-number

9480708

Call sign

9HA4678

Flag

Malta

Port of registry

Valletta

Previous flags

2011 - 2018 Cayman Islands, George Town - Call sign: ZGBX9

GT

23.456 t

Suez: 24.325,46 t

DWT

Summer: 34.422,5 t

NT

11.522 t

Panama: 19.536 t

Suez: 20.889,65 t

Displacement

43.631,7 t

Length

180,00 m overall

172,00 m between perpendiculars

Breadth

30,00 m moulded

Draught

Max: 9,90 m

Air draft

37,89 m

Freeboard

4.825 mm

Depth

14,70 m

Speed

14,0 knots

Built

2011

Keel laid

20/06/2011

Launch date

31/08/2011

Delivery date

12/10/2011

Builder

SPP Shipbuilding Co., Ltd.
537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si

Gyeongsangnam-Donam Do, 664-942
South Korea

Yard number

H4039

Hull material

Steel

Hull type

Single hull

Main engine

1x Doosan/MAN-B&W 5S50MC-C - 5 cylinder 500 x 2.000 mm combustion engine 7.900 kW at 127,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1

Manufacturer: Sil La Metal Co.

Boilers

1x Fired exhaust gas boiler - 9,0 bar

Manufacturer: SPP Machine Tech

Generators

3x Yanmar 6EY18ALW - 6 cylinder 180 x 208 mm diesel engines each 660 kW at 900 rpm coupled with Taiyo FE 547A-8 generators each 600 kW

Manufacturer: Yanmar Co., Ltd. & Taiyo Electric Co., Ltd.

Number of holds

5

Cargo hold capacity

48.620,3 m³

Number of hatches

5

Tank capacities

Diesel oil: 197,90 m³

Fuel oil: 1.700,90 m³

Ballast: 23.135,40 m³

Fresh water: 338,70 m³

Lub oil: 119,60 m³

Lifting equipment

1x Electric provision crane - SWL 3,0 t

1x Engine room crane - SWL 2,5 t

Manufacturer: SPP Machine Tech

Cargo gear

4x MacGregor deck cranes - SWL 35,0 t each

Manufacturer: SPP Machine Tech

Crew size

25

Registered owner

Es Core LLC

Latest data adjustment

17 December 2019
