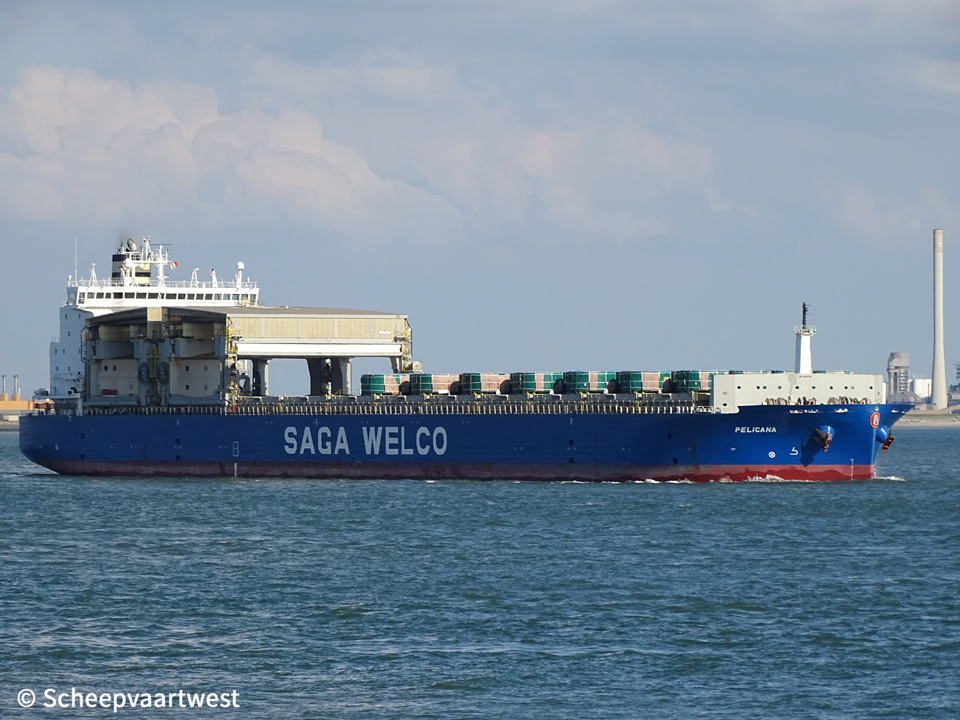

Pelicana 01

Westerschelde 10 September 2019



Name

PELICANA

Type

General dry cargo ship / Container ship - Open hatch

IMO-number

9401790

Call sign

9VBM8

Flag

Republic of Singapore

Port of registry

Singapore City

GT

39.258 t

DWT

54.810 t

NT

16.079 t

Number of 20ft containers

On hatch covers: 863

In hold: 1.670

Total: 2.506

Length

212,50 m overall

207,50 m between perpendiculars

Breadth

32,33 m extreme

32,26 m moulded

Draught

Max: 12,33 m

Depth

19,00 m

Speed

Service: 15,9 knots

Built

2009

Keel laid

22/02/2006

Launch date

21/04/2009

Date of completion

22/07/2009

Builder

Oshima Shipbuilding Co., Ltd.
Saikai
Japan

Yard number

10510

Hull material

Steel

Main engine

1x Kawasaki/MAN-B&W 6S60MC - 6 cylinder combustion engine 12.268 kW / 16.680 bhp at 105,0 rpm

Propellers

1x Mono-block propeller

5 blades - Diameter: 6.200 mm

Manufacrurer: Nakashima Propeller Co.

Boilers

1x Auxiliary boiler, composite

Generators

3x MAN 6L28/32H main diesel generatorsets each 1.199 kW coupled with Hyundai generators

Emergency generator

1x Mitsui Zosen diesel generatorset 120 kVA

Bow thruster

1x Kamewa Ulstein TT2400 AUX CP - 1.800 kW, forward

1x Kamewa Ulstein TT1650 AUX CP - 740 kW, aft

Number of holds

12

Cargo hold capacity

Hold 1: 4.885 m³ / 172.512 ft³

Hold 2: 6.387 m³ / 225.555 ft³

Hold 3: 6.544 m³ / 321.009 ft³

Hold 4: 6.544 m³ / 321.009 ft³

Hold 5: 6.544 m³ / 321.009 ft³

Hold 6: 6.544 m³ / 321.009 ft³

Hold 7: 6.544 m³ / 321.009 ft³

Hold 8: 6.544 m³ / 321.009 ft³

Hold 9: 6.544 m³ / 321.009 ft³

Hold 10: 6.544 m³ / 321.009 ft³

Hold 11: 6.064 m³ / 214.148 ft³

Hold 12: 96.409 ft³

Total: 72.415 m³ / 2.557.314 ft³

Tank capacities

Ballast: 17.398,1 m³

Fuel oil: 3.139 m³

Diesel oil: 269 m³

Fresh water: 354 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Cargo gear

2x Travelling gantry cranes with weather protection - SWL 68 t each

Crew size

30

Manager

Zeaborn Ship Management (Singapore) Pte. Ltd.
1 Maritime Square
#11-03 HarbourFront Centre
Singapore 099253
Republic of Singapore

Operator

Saga Welco
Tollbodgaten 22
3111 Tønsberg
Norway

Registered owner

Masterbulk Pte Ltd.
79 Anson Road #23-06 (main entrance on Palmer Road)
Singapore 079906
Republic of Singapore

Latest data adjustment

23 October 2019
