Westerschelde 20 February 2019 |
|
Name |

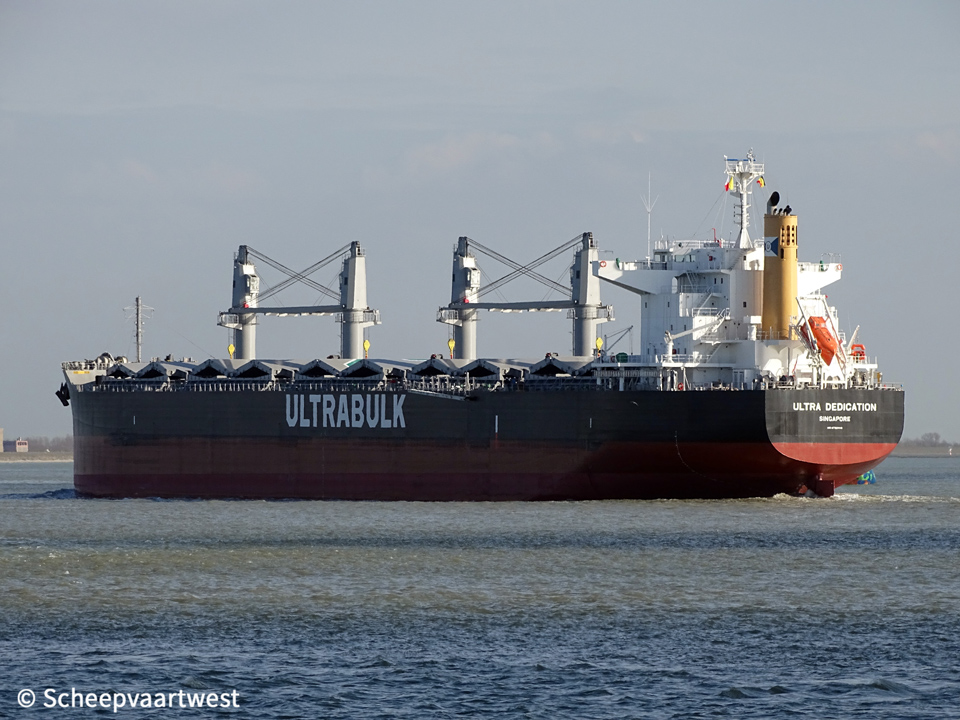

ULTRA DEDICATION |
|
Type |
Bulk carrier - Supermax - Strengthened for heavy cargo loading |
|
IMO-number |
9790866 |
|
Call sign |
9V8567 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
35.832 t registered |
|
DWT |
63.533 t |
|
NT |
20.839 t registered |
|
Length |
199,98 m overall |
|
Breadth |
32,24 m moulded |
|
Draught |
Summer: 13,42 m |
|
Moulded L x B x D |
195,00 x 32,24 x 19,15 m |
|
Registered L x B x D |
195,38 x 32,24 x 19,15 m |
|
Freeboard |
Summer: 5.782 m |
|
Depth |
19,15 m moulded |
|
Speed |
Max: 15,6 knots |
|
Built |
2018 |
|
Keel laid |
07/09/2015 |
|
Launch date |
13/10/2018 |
|
Date of completion |
30/11/2018 |
|
Builder |
Iwagi Zosen Co., Ltd. |
|
Yard number |
Z525 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 7.560 kW at 99,0 rpm Manufacturer: Mitsui E&S Machinery Co., Ltd. Tamano Machinery Factory - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 500 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,10 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators total 1.890 kVA |
|
Cargo hold capacity |
Bale: 76.176,27 m³ Grain: 80.497,70 m³ |
|
Tank capacities |
Fuel oil: 2.639,58 m³ Fresh water: 674 m³ |
|
Manager |
Belships Management Singapore Pte Ltd. |
|
Operator |
UltraBulk |
|
Registered owner |
Ultra Summit Singapore Pte Ltd. Singapore 18961 |
|
Latest data adjustment |
12 May 2019 |
