Ørnes, Norway 01 June 2019 |
 |
| Ørnes, Norway 01/06/19 |
|
Name |

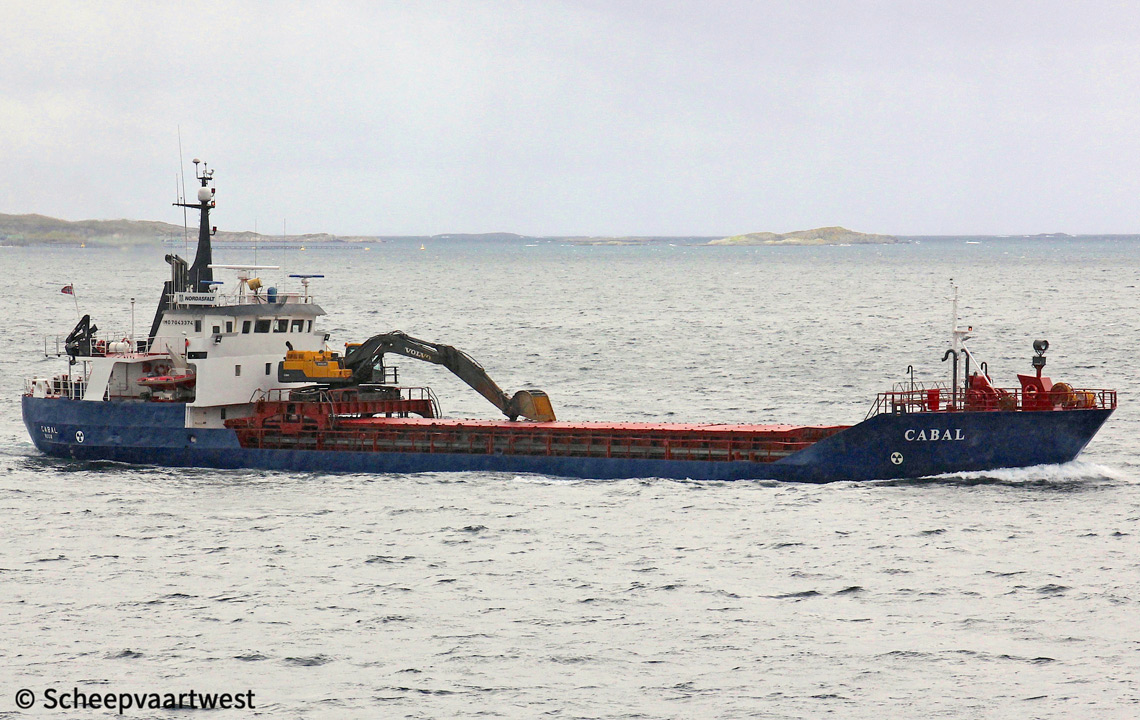

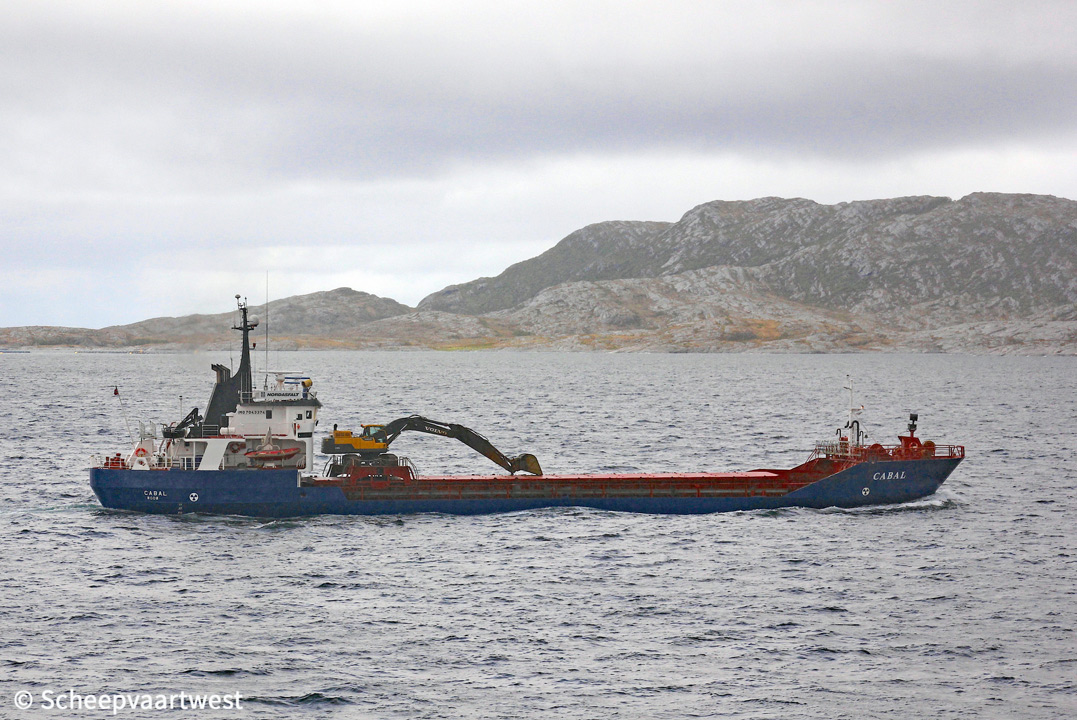

CABAL |
|
Previous names |
Build as: Anni Klint 1971 - 1983 Mor Viana 1983 - 1985 More Viana 1985 - 1989 Viana 1989 - 01/1991 Sealine 01/1991 - 03/1993 Dagrun Norcoast 03/1993 - 05/2005 Cabal 05/2005 - 04/2007 Kongsvaag |
|
Type |
General cargo ship |
|
IMO-number |
7043374 |
|
Call sign |
LGLF |
|
Flag |
Norway |
|
Port of registry |
Bobø |
|
GT |
1.123 t |
|
DWT |
Summer: 1.060 t |
|
NT |
572 t |
|
Length |
64,60 m overall 56,98 m between perpendiculars |
|
Breadth |
11,08 m |
|
Draught |
Max: 5,26 m |
|
Freeboard |
1.159 mm |
|
Depth |
6,20 m |
|
Speed |
11,0 knots |
|
Built |
1971 |
|
Builder |
Vaerft & Amp Tordok (Frederikshavn Værft A/S) |
|
Yard number |
0313 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x Caterpillar - 4 stroke combustion engine 969 kW / 1.317 hp at 1.200 rpm Build: 19/03/2010 Manufacturer: Caterpillar Inc., Lafayette, IN - USA |
|
Propellers |
1x Controllable pitch propeller - Aft at 306 rpm |
|
Electric installations |
Power voltage:380 V Lighting voltage:220 V |
|
Shaft generator |
1x 45 kVA - 36 kW |
|
Generators |
1x Diesel generatorset 156 kVA - 125 kW - 170 hp 1x Diesel generatorset 105 kVA - 84 kW - 170 hp |
|
Bow thruster |
420 hp, forward 350 hp, aft |
|
Number of holds |
1 |
|
Cargo hold capacity |
Grain 2.100 m³/ 74.205 ft³ |
|
Cargo hatchways |
2 |
|
Hatch type |
MacGregor folding |
|
Tank capacities |
Fuel: 212 m³ |
|
Cargo handling |
1x Volvo 380 D - 2012 excavator Grab: 3,0 m³ |
|
Lifting equipment |
1x Gantry excavator - SWL 5,0 t |
|
Manager |
Nordmani AS Norway |
|
Registered owner |
Nordmani AS |
|
Previous names & owners |
1971 Anni Klint - G.Drehse Partrederit, Rudkøbing - Denmark.(OWDX) 1972 Mor-Viana - G.Drehse Partrederit, Rudkøbing - Denmark 1976 Mor-Viana - Steamship Inc. (Slobben Shipmanagement B.V.), Panama - Republic of Panama (HO2083) 1983 More Viana - Eurolight Navigation Ltd., Limassol - Cyprus (H2RM) 1985 Viana - Sealine A/S. (Arne Bluknapp), Bergen - Norway (LGLF) 1989 Sealine - P/R. Frode Viking, Trondheim, - Norway 1991 Dagrun Norcoast - Norcoast Shipping A/S., Bergen - Norway 1993 Cabal - Sameiet Brodrene Pettersen ANS 2005 Kongsvaag - Askvoll Sandfrakt AS - Norway 2007 Cabal - Nordmani AS, Bodø - Norway |
|
Latest data adjustment |
30 July 2019 |
