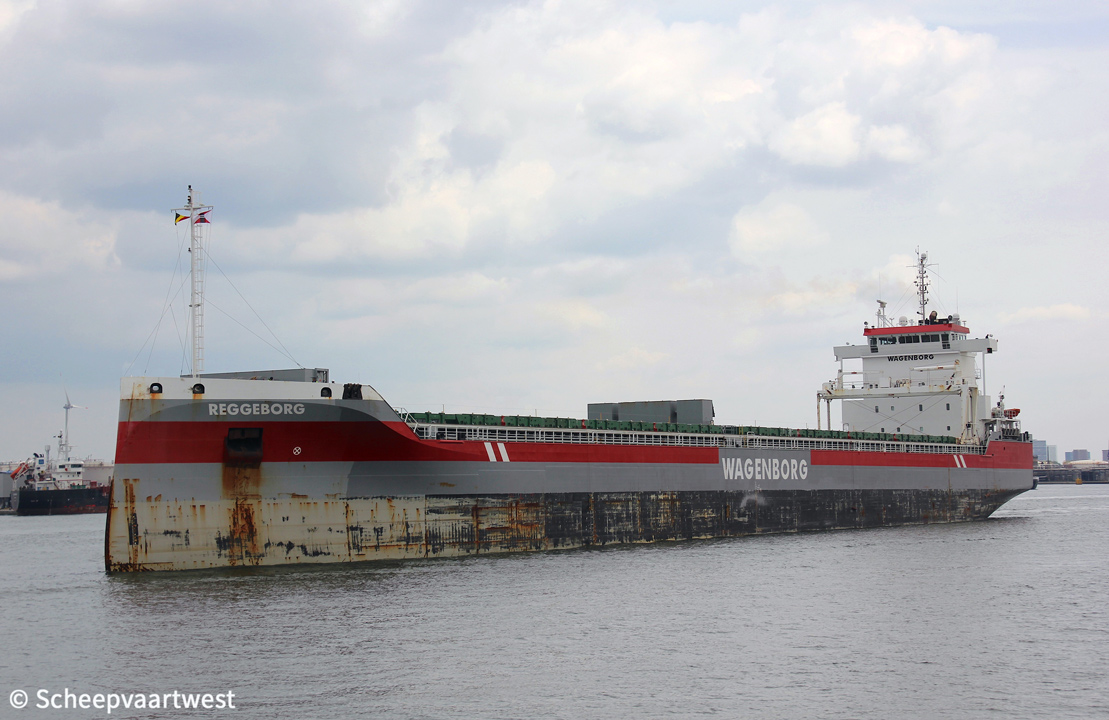

Reggeborg IMO 9592575 01

Antwerpen 07 May 2019

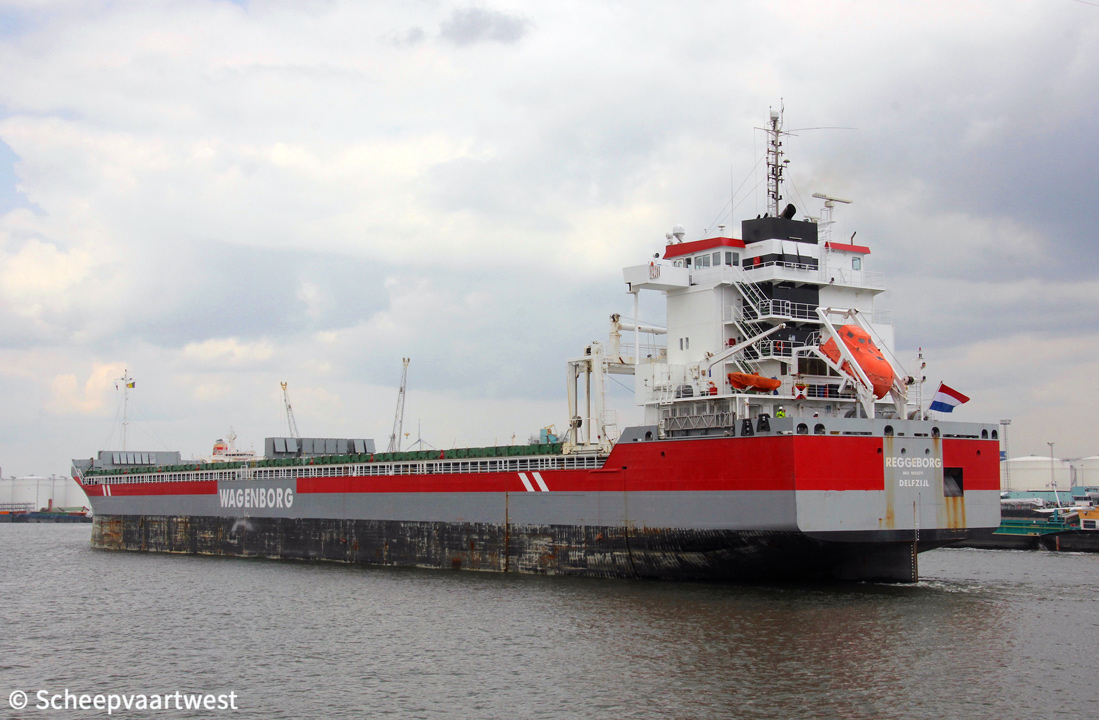

Reggeborg IMO 9592575 02
Antwerpen 07/05/19



Name

REGGEBORG

Type

Multi-purpose cargo ship / Container ship

IMO-number

9592575

Call sign

PCYE

Flag

The Netherlands

Port of registry

Delfzijl

GT

14.224 t

DWT

Summer: 23.000 t

DWCC

Summer: 22.000 t

NT

6.853 t

Length

169,75 m overall

166,09 m between perpendiculars

Breadth

20,40 m

Draught

Summer: 9,72 m

Winter: 9,52 m

Air draft

35,34 m in ballast

Freeboard

4.056 mm

Depth

13,75 m moulded

Speed

13,5 knots

Built

2014

Launch date

18/12/2013

Date of completion

14/02/2014

Builder

Scheepswerf Ferus Smit

Leer
Germany

Yard number

404

Hull material

Steel

Watertight compartments

7

Continuous decks

1

Main engine

1x Wärtsilä 9L32C - 4 stroke single acting9 cylinder 320 x 400 mm combustion engine 4.500 kW / 6.114 hp at 750 rpm

Build: 01/03/2013

Builder: Wärtsilä, Vaasa - Finland

Propellers

1x Screw propeller controllable pitch - aft at 110 rpm

4 blades with nozzle

Shaft generator

1x 1.238 kVA - 990 kW

Generators

2x Main diesel generatorsets each 563 kVA - 450 kW - 611 hp

Emergency generator

1x Diesel generatorset 183 kVA - 146 kW - 198 hp

Bow thruster

1x 860 kW

Number of holds

2x Both holds are open hatch, double skinned, fully box

Hold 1: 60,59 x 17,00 x 13,55 m

Hold 2: 60,59 x 17,00 x 13,55 m

Total capacity of holds

26.745 m³ / 945.000 ft³

Hold ventilation

Holds are equipped with electrical ventilation, 12 air changes per hour basis empty holds, both holds are fitted with de humidifier system

Number of hatches

2

Hatch 1: 60,59 x 17,00 m

Hatch 2: 60,59 x 17,00 m

Hatch type

Coops & Nieborg pontoon hatches

Tank capacities

HFO: 1.066 m³

MGO: 120 m³

Water ballast: 10.093 m³

Fresh water; 101 m³

Cargo gear

Gearless

Manager

Wagenborg Shipping BV
Delfzijl
The Netherlands

Registered owner

Reggeborg Beheer BV

Marktstraat 10
9934 CK Delfzijl
The Netherlands

Latest data adjustment

23 May 2019
