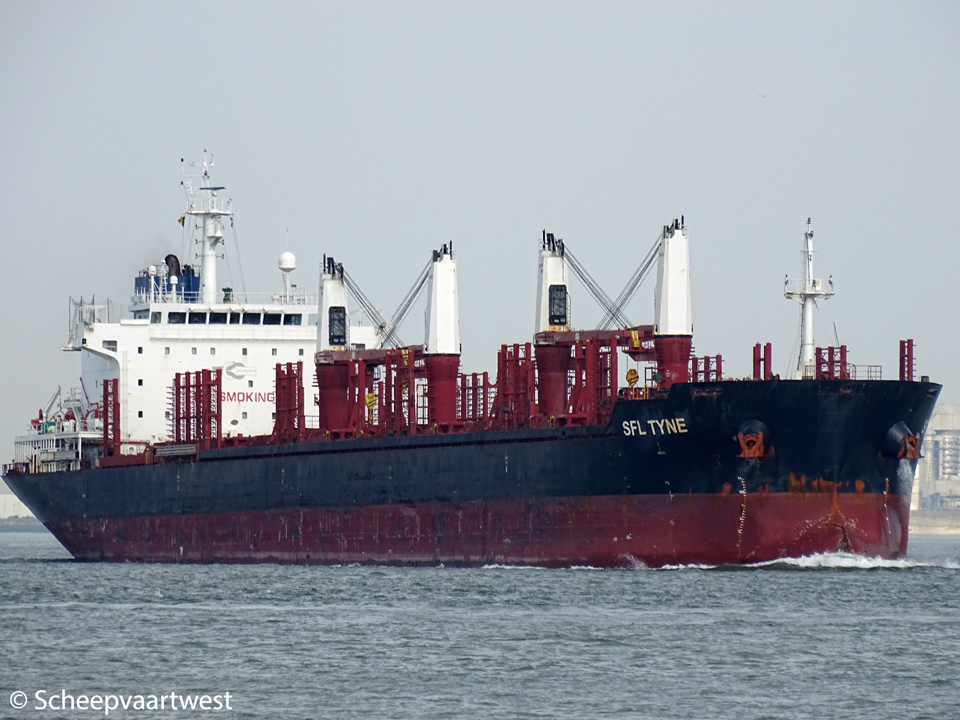

SFL Tyne 01

Westerschelde 20 July 2016

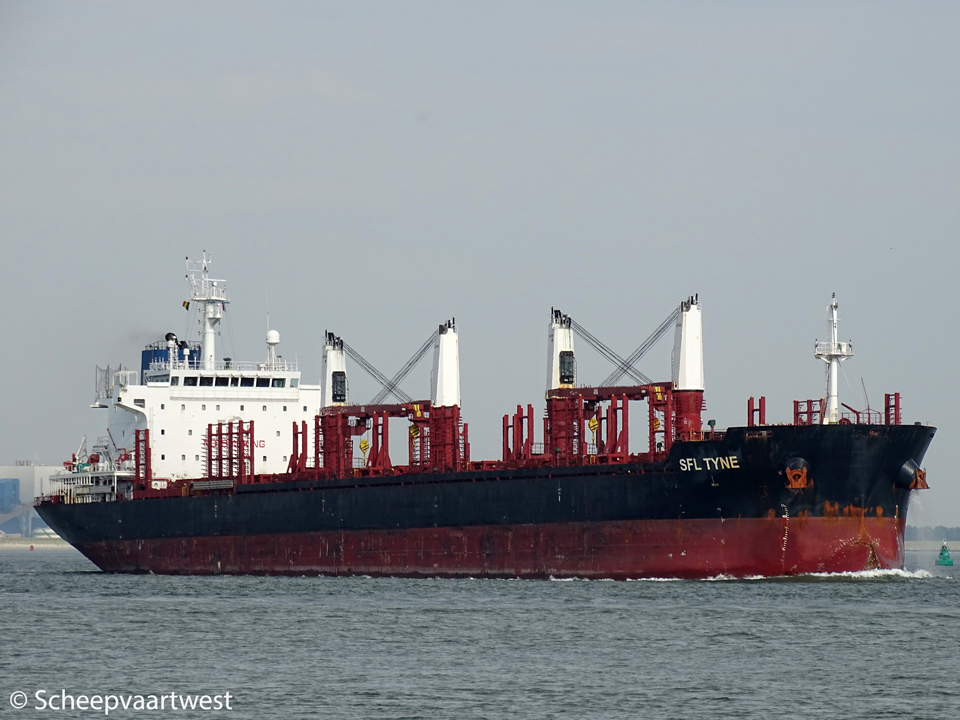

SFL Tyne 02
Westerschelde 20/07/16



Name

SFL TYNE

Previous names

2012 - 02/2015 Western Australia

Type

Bulk carrier

IMO-number

9594535

Call sign

VRJQ2

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

19.998 t

DWT

Summer: 31.905 t

NT

10.444 t

Number of 20ft containers

1.740

Length

176,50 m overall

171,00 m between perpendiculars

Breadth

27,04 m extreme

Draught

Max: 10,00 m

Depth

14,20 m

Speed

15,2 knots

Built

2012

Keel laid

16/05/2011

Launch date

01/09/2011

Date of completion

12/02/2012

Builder

Guangzhou Wenchong Shipyard Co. Ltd.
China

Yard number

GWS409

Hull material

Steel

Hull type

Single hull

Main engine

1x MAN B&W/Hudong 6S42MC - 2 stroke 6 cylinder combustion engine

MCR 6.480 kW at 136,0 rpm

CSR 5.832 kW at 131,3 rpm

Propellers

1x Fixed pitch mono-block propeller

Generators

3x Daihatsu 5DK-20e main diesel generatorsets each 610 kW at 720 rpm coupled with 3 generators each 720 kW / 450 Volt 50 Hz

Emergency generator

1x AGCO Sisu Power 634 diesel engine

Number of holds

5

Cargo hold capacity

Bale / Grain:

Hold 1: 6.771,6 m³ / 6.882,9 m³
Hold 2: 8.536,2 m³ / 8.649,6 m³
Hold 3: 8.281,7 m³ / 8.393,1 m³
Hold 4: 8.536,3 m³ / 8.649,7 m³
Hold 5: 7.756.,3 m³ / 7.872,6 m³

Total: 39.882,1 m³ / 40.442,2 m³

Number of hatches

5

Hatch 1: 15,20 x 14,58 m

Hatch 2: 19,20 x 16,20 m

Hatch 3: 18,40 x 16,20 m

Hatch 4: 19,20 x 16,20 m

Hatch 5: 19,20 x 16,20 m

Tank capacities 98%

Ballast: 9.150,7 m³

HFO: 1.331,3 m³

MDO: 148,6 m³

Fresh water: 413 m³

Anchor equipment

Length: 605,00 m

Diameter: 64 mm

Cargo gear

4x McGregor GLB3024.5-2/2424.5gr electro-hydraulic single deck cranes - SWL 30,0 t each

Crew size

25

Manager

Seateam Management Pte Ltd.

10 Hoe Chiang Road
#19-03/04/05, Keppel Towers
Singapore City

Republic of Singapore

Operator

SFL - Ship Finance International Limited
Par-la-Ville Place
14 Par-la-Ville Road
Hamilton HM 08
Bermuda

Registered owner

SFL Tyne Inc.

Latest data adjustment

31 January 2019
