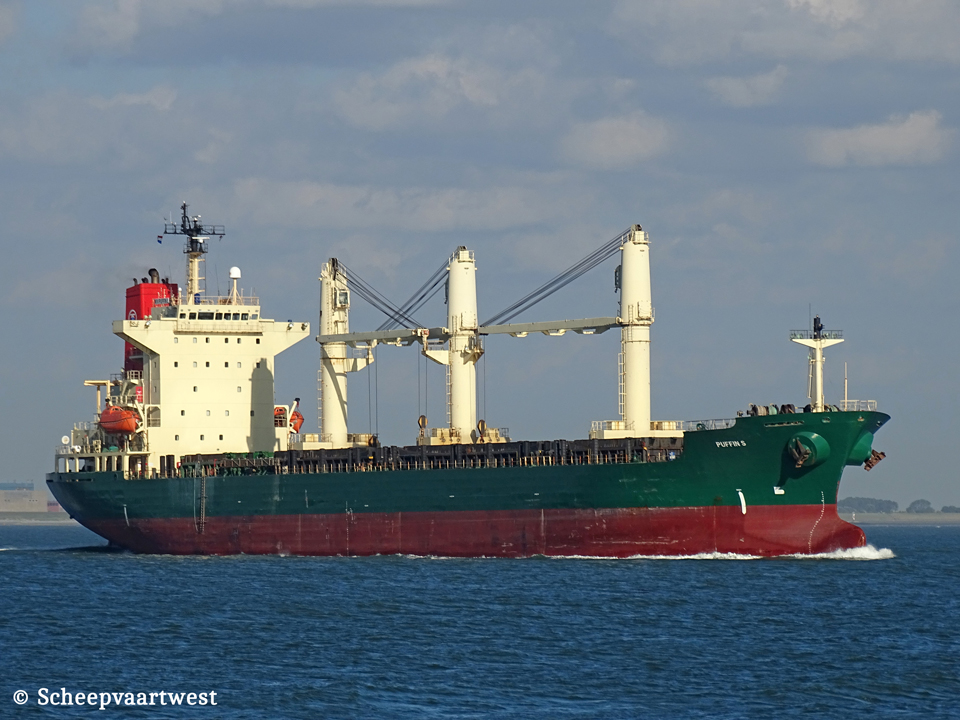

Puffin S IMO 9164811 05

Westerschelde 12 August 2016

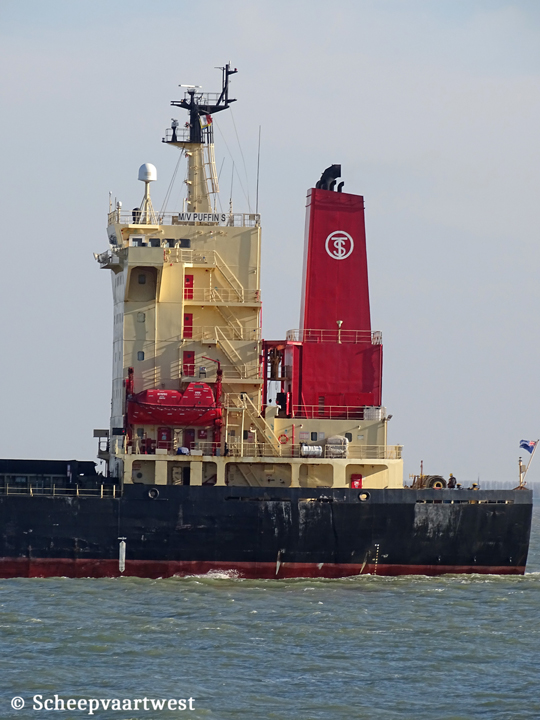

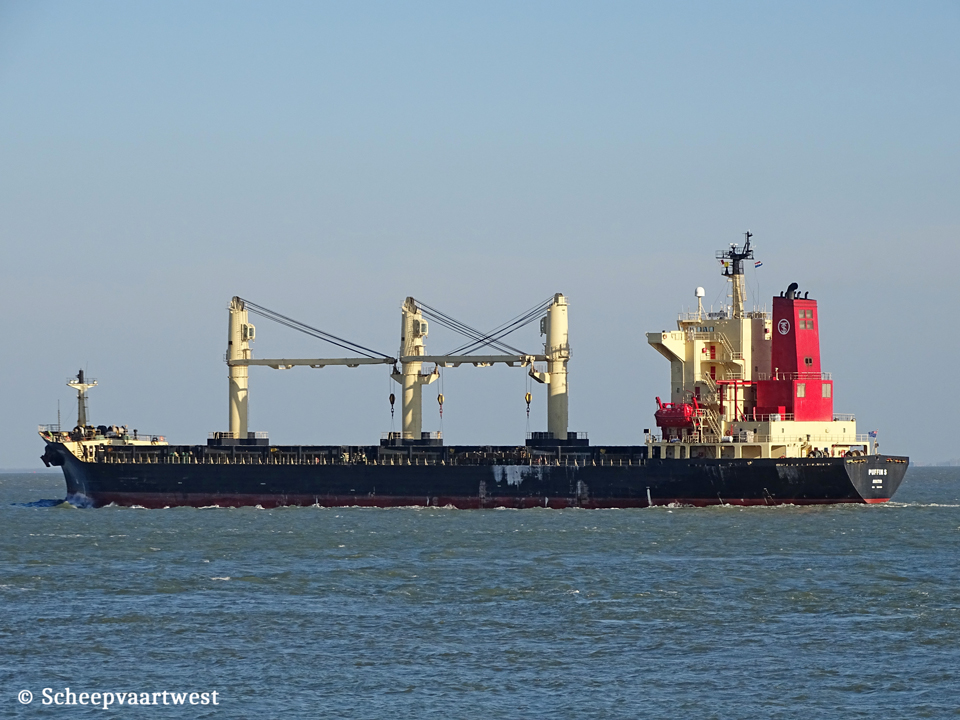

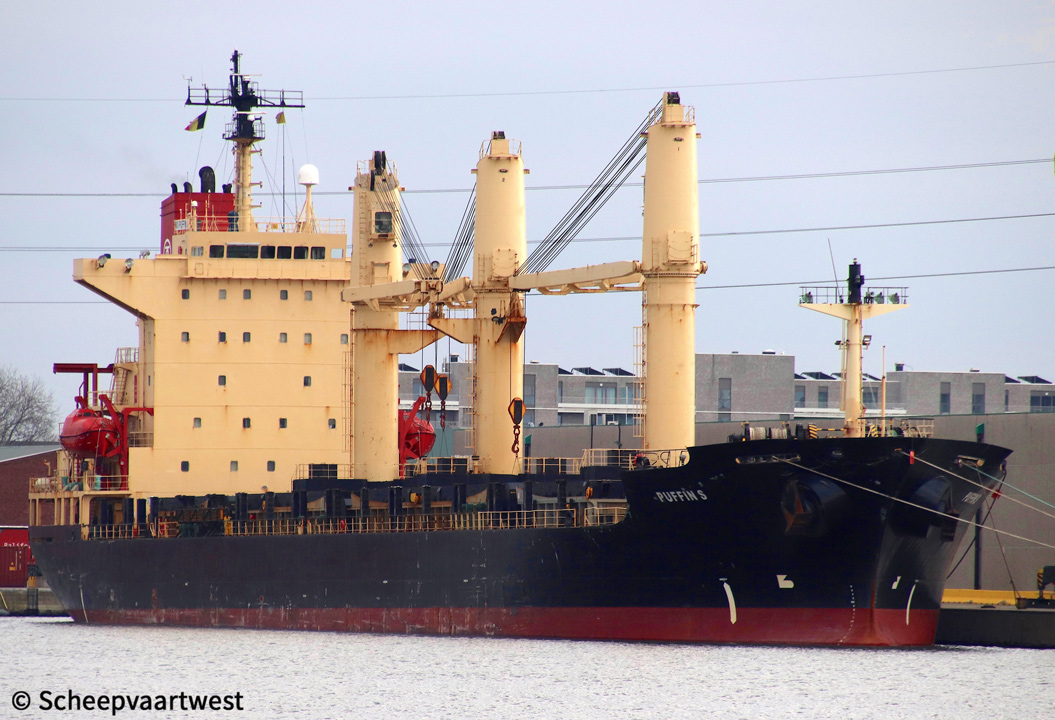

Puffin S 02   Puffin S 01   Puffin S IMO 9164811 04   Puffin S IMO 9164811 03
Antwerpen 14/02/20   Westerschelde 20/07/16 Westerschelde 10/04/19 WS 10/04/19


Name

PUFFIN S

Previous names

1999 - 02/2002 Splendour

20/2002 - 04/2008 DS Splendour

04/2008 - 2014 Lady Anthula H

Type

Geared general multi-purpose carrier - Containership

IMO-number

9164811

Call sign

D5VI4

Flag

Liberia

Port of registry

Monrovia

Previous flags

Malta, Valletta- Call sign: 9HMY9 until 2014

Cook Islands, Avatiu - Call sign: E5U2890 until 2019

GT

14.118 t

DWT

Summer: 20.738 t

NT

6.124 t

Displacement

20.738 t

Number of 20ft containers

847

Reefer capacity

54

Length

157,90 m overall

149,00 m between perpendiculars

Breadth

23,10 m

Draught

Max: 9,72 m

Freeboard

4.118 mm

Depth

13,80 m

Speed

Max: 17,0 knots

Built

1999

Date of completion

05/06/1999

Builder

Hitachi Zosen Marine Service Singapore Pte

Yard number

N-026

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Continuous decks

1

Main engine

1x MAN-B&W/Hitachi 6S42MC - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW / 8.356 hp at 136,0 rpm

Built: 10/04/1998

Builder: Hitachi Shipbuilding & Engineering, Osaka - Japan

Propellers

1x Screw propeller solid - aft at 136,0 rpm

Boilers

1x CHM Osaka boiler MFG CO. 13,00 m²

Generators

3x Main diesel generatorsets each 750 kVA - 600 kW - 815 hp

Emergency generator

1x Diesel generatorset 100 kVA - 80 kW - 194 hp

Number of holds

4

Cargo hold capacity

Grain: 23.880 m³

Bale: 23.795 m³

Number of hatches

4

Tank capacities

Fuel oil: 1.240 m³

Diesel oil: 65 m³

Fresh water: 246,6 m³

Water ballast: 9.008 m³

Cargo gear

3x Deck cranes - SWL 36,0 t each

Commerical manager

Armador Gemi Isletmecilig

Kat 3, 3/1 Sokak 2, Sumer Mah, Zeytinburnu

30425 Istanbul

Turkey

ISM manager

Puffin Shipping & Trading Ltd.

Kat 1, 3/1 Sokak 2, Sumer Mah, Zeytinburnu

34025 Istanbul

Turkey

Registered Owner

Puffin Shipping & Trading Ltd.

Care Of Armador Gemi Isletmecilig Ticaret Ltd Sti (Armador Shipping)

Kat 3, 3/1 Sokak 2, Sumer Mah, Zeytinburnu

34025 Istanbul

Turkey

Latest data adjustment

01 May 2022
