Westerschelde 21 July 2016 |
|
Name |

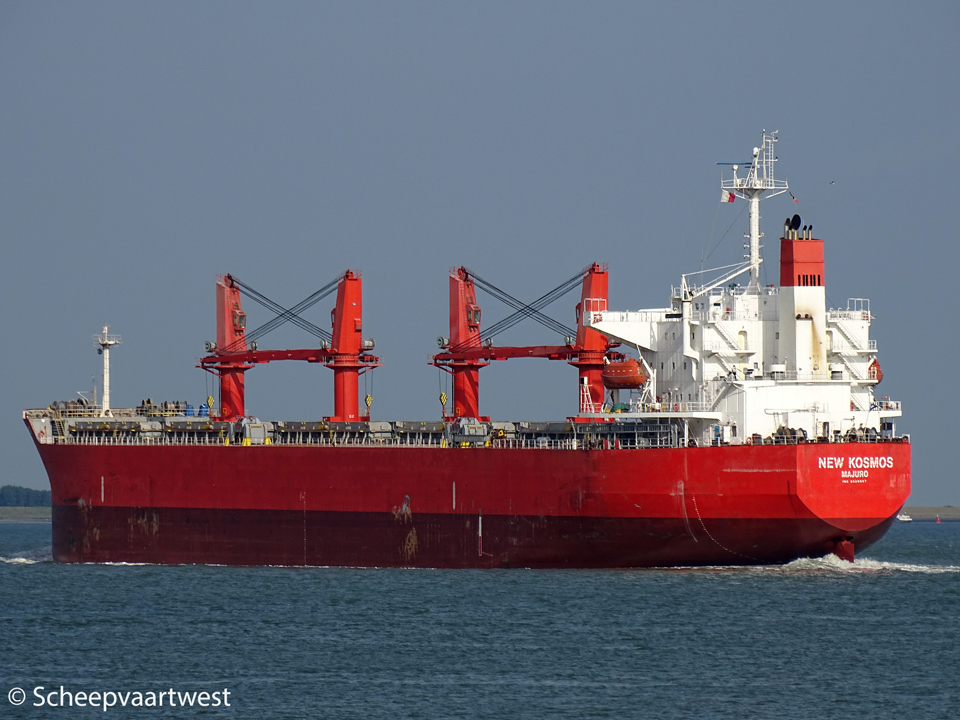

NEW KOSMOS |
|
Previous names |
2005 - 2016 Santa Elena |
|
Type |
Bulk carrier - Strengthened for heavy cargoes |
|
IMO-number |
9329837 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2009 - 2011 Republic of Panama, Panama City 2011 - 2016 Republic of Singapore, Singapore City - Call sign: 9V8977 |
|
GT |
31.247 t |
|
DWT |
Summer: 56.011 t |
|
NT |
18.504 t |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Max: 12,58 m |
|
Moulded L x B x D |
182,00 x 32,26 x 17,90 m |
|
Registered L x B x D |
182,97 x 32,26 x 17,90 m |
|
Freeboard |
Summer: 5.370 mm |
|
Depth |
17,90 m moulded |
|
Speed |
Max: 16,7 knots Servile: 14,5 knots |
|
Built |
2005 |
|
Keel laid |
24/12/2004 |
|
Launch date |
22/06/2005 |
|
Date of completion |
30/08/2005 |
|
Builder |
Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Yard number |
1618 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 bhp at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 470 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 127,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,97 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. - Japan |
|
Generators |
3x Main diesel generatorsets each 460 kW |
|
Cargo hold capacity |
Bale: 68.044 m³ grain: 70.811 m³ |
|
Tank capacities |
Fuel oil: 2.510 m³ Fresh water: 428 m³ |
|
Cargo gear |
4x Cranes - SWL 30,5 t each |
|
Crew size |
24 |
|
Manager |
Oetker Rudolf |
|
Owner |
OMC Shipping Pte Ltd. |
|
Renamed |
11/2018 Abdul Hamid Indonesia, Jakarta - Call sign: YCLG2 Manager: P.T. Gurita Lintas Samudera Owner: PT. Perusahaan Pelayaran Gurita Lintas Samudera |
|
Latest data adjustment |
30 January 2019 |
