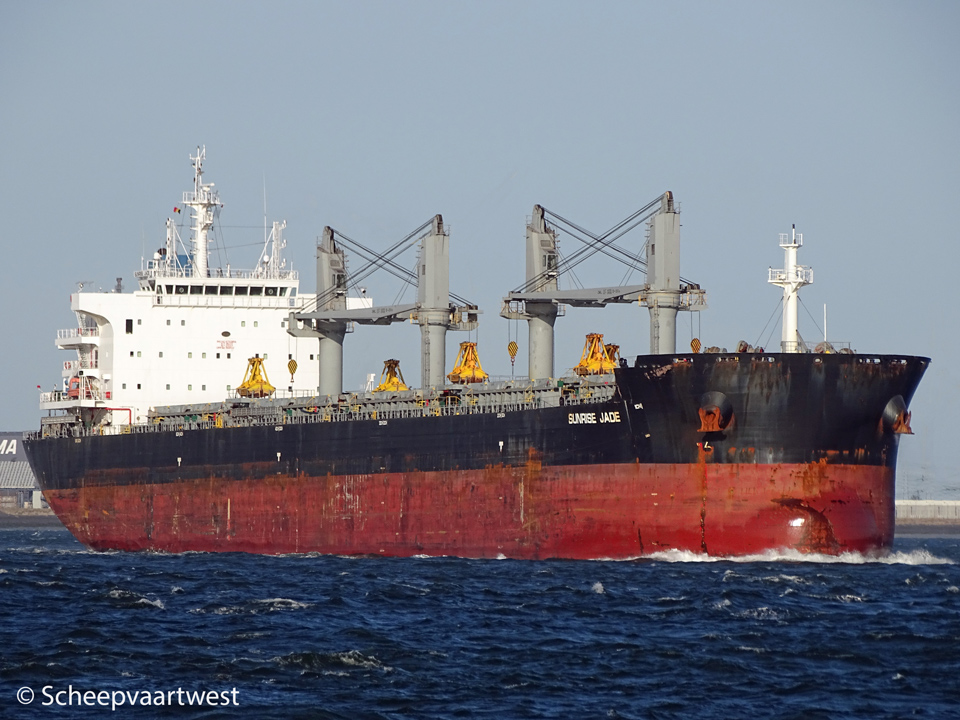

Sunrise Jade 01

Westerschelde 28 July 2018



Name

SUNRISE JADE

Type

Bulk carrier

IMO-number

9732955

Call sign

9V2519

Flag

Republic of Singapore

Port of registry

Singapore City

GT

36.333 t

DWT

63.244 t

NT

21.607 t

Length

199,90 m overall

194,50 m between perpendiculars

Breadth

32,26 m moulded

Draught

Max: 13,30 m

Forecastle

13,48 m

Poop

12,44 m

Deckhouse

20,80 m

Bridge

19,20 m

Freeboard

5.228 mm

Depth

18,50 m moulded

Speed

14,4 knots

Built

2015

Date of completion

26/01/2015

Builder

Jiangsu Hantong Ship Heavy Industry Co., Ltd.
Tongzhou
Chin

Hull material

Steel

Continuous decks

1x Upper deck

Main engine

1x Doosan 5S60ME-C - 5 cylinder 600 x 2.400 mm combustion engine 8.050 kW at 89,0 rpm

Built: 05/08/2014

Builder: Doosan Engine Co., Ltd. - South Korea

Propellers

1

Boilers

1x Boiler - 8,0 bar

Heating area: 29,5 m²

Built: 28/07/2014

Builder: Miurra Co., Ltd.

Generators

3x Main diesel generatorsets each 720 kW - 450 Volt

Number of holds

5

Cargo hold capacity

Grain:

Hold 1: 13.957,80 m³
Hold 2: 17.658,30 m³
Hold 3: 15.352;99 m³
Hold 4: 15.839,60 m³
Hold 5: 15.955,95 m³

Total: 78.764,64 m³

Number of hatches

5

1x: 19,68 x 18,26 m

4x: 22,96 x 18,26 m

Tank capacities

HFO: 2.012,87 m³

MGO: 214,47 m³

Lifting equipment

2x Crane - SWL 2,4 t each

Cargo gear

4x Cranes - SWL 36,0 t each

Grabs: 4x 12,0 m³

Manager

Dasin Shipping Pte Ltd.

03-46, AXA Tower
8, Shenton Way
Singapore 068811
Republic of Singapore

Registered owner

Sunrise Jade Shipping Pte Ltd.

Latest data adjustment

28 January 2019
