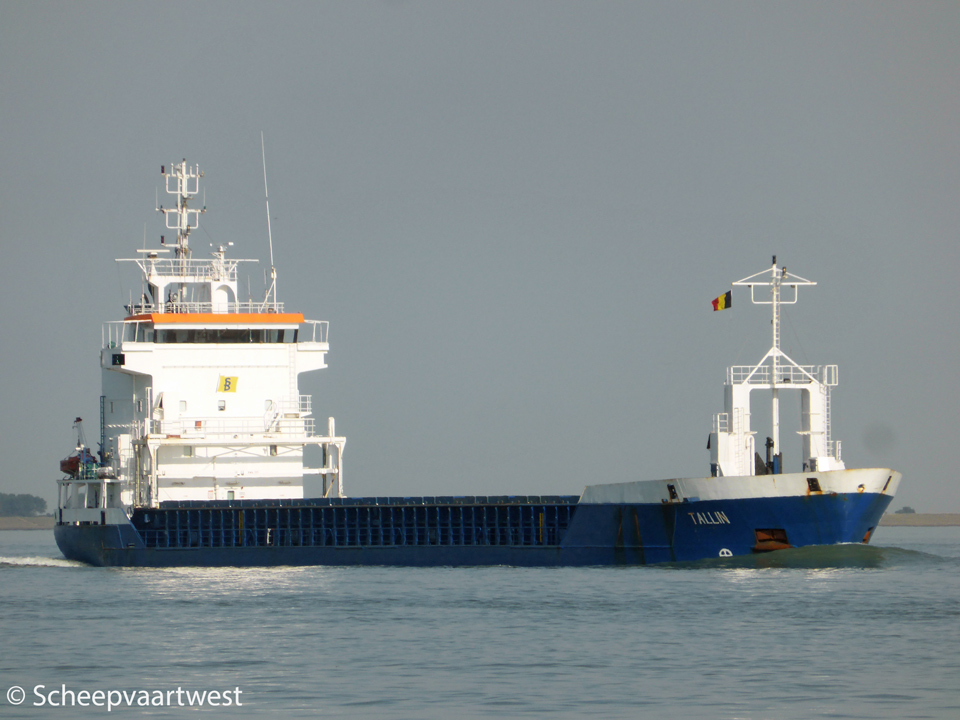

Tallin 01

Westerschelde 02 August 2015



Name

TALLIN

Type

General cargo ship - Equipped for carriage of Containers - strengthened for Heavy cargo

IMO-number

9130224

Call sign

V2PA1

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

2.810 t

DWT

Summer: 4.240 t

DWCC

Summer: 4.222 t

Winter: 4.084 t

NT

1.562 t

Number of 20ft containers

In hold: 117

On deck: 96

Total: 213

Container capacity 14t

156

Reefer capacity

20

Length

89,74 m overall

84,99 m between perpendiculars

Breadth

13,17 m moulded

Draught

Summer: 5,72 m

Winter: 5,61 m

Air draft

26,70 m

Depth

8,00 m

Speed

11,00 knots

Built

1997

Keel laid

24/06/1996

Launch date

18/04/1997

Date of completion

16/09/1997

Builder casco

Damen Shipyard Galati
Galati
Romania

Yard number: 913

Builder completion

Damen Shipyards Hoogezand
The Netherlands

Yard number: 721

Hull material

Steel

Hull type

Double hull

Movable bulkheads

2x Max 3 compartments

Continuous decks

1

Main engine

1x Deutz MWM TBD645L6 - combustion engine 2.200 kW at 600 rpm

Builder: Deutz Motoren, Manheim - Germany

Propellers

1x Controllable pitch propeller

Generators

2x BF6M1015 diesel generatorsets

1x BF4M1013 diesel generatorset

Emergency & harbour gen.

1x Valmet diesel generatorset 70 kVA - 50Hz

Compressed air receivers

2x Starting air compressor

Bow thruster

1x Fixed pitch propeller 300 kW

Number of holds

1x Box shaped hold

62,00 x 11,00 x 8,43 m

Cargo hold capacity

202.000 ft³ / 5.718 m³

Hold ventilation

Electric driven 6 air changes per hour

Number of hatches

1

62,70 x 10,10 m

Hatch type

10x Ponton hatch covers

Max permitted loads

Tanktop: 18,0 t/m²

Hatch covers: 1,6 t/m²

Other equipment

3x Separators: 1x IFO, 1x MGO, 1x Lub oil
1x Fuel oil trim pump
1x Bilge water separator, acc. to Marpol regulations
2x Bilge/ballast pumps, each 150 m3/hr a 2,80 bar
1x Fire Fighting pump
1x Sewage pump
1x Freshwater pressure set
1 xCO2 Fire Fighting system for engine room and cargo hold

Tank capacities

Ballast: 1.626,99 m³
IFO 235,58 m³
MGO 37,29 m³
Potable water 41,44 m³

Lifting equipment

1x Gantry crane

Manager

Bojen Reederei
Moormerland
Germany

Owner

Bojen Holding GmbH & Co. KG
Germany

Registered owner

Bojen MS "TALLIN" KG

Renamed

2016 Allin

Republic of Panama, Panama City - Call sign: 3FFN6

Manager: Franklin Shipping Ltd.

Owner: Benjamin Shipping Ltd.

Latest data adjustment

14 January 2019
