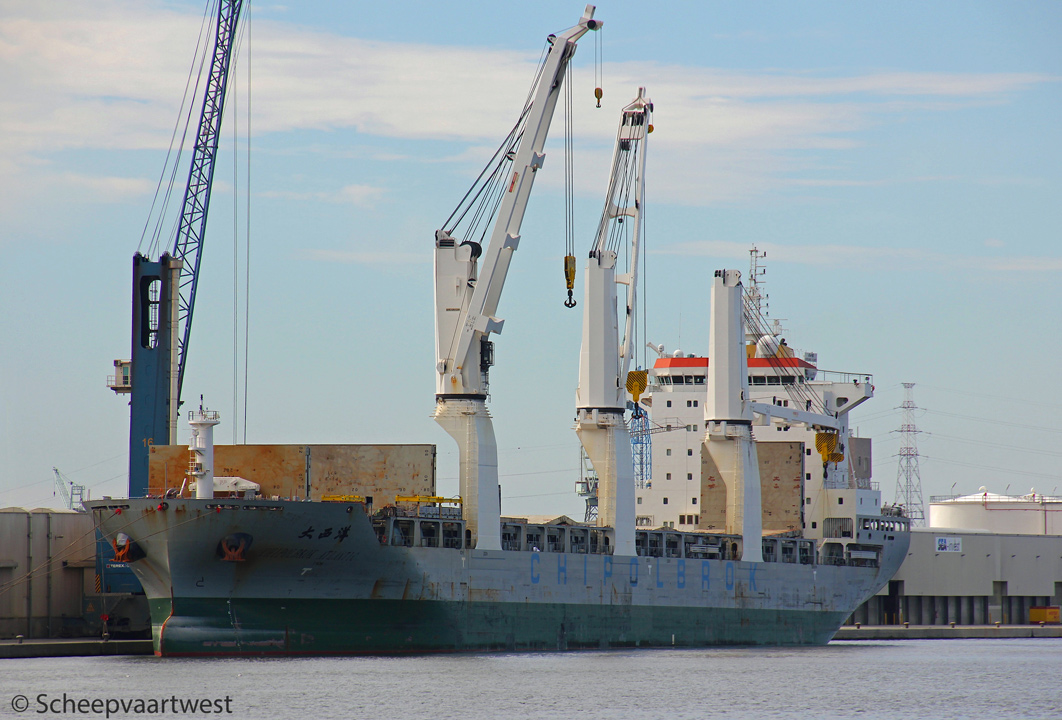

Chipolbrok Atlantic 01

Antwerpen 09 September 2018

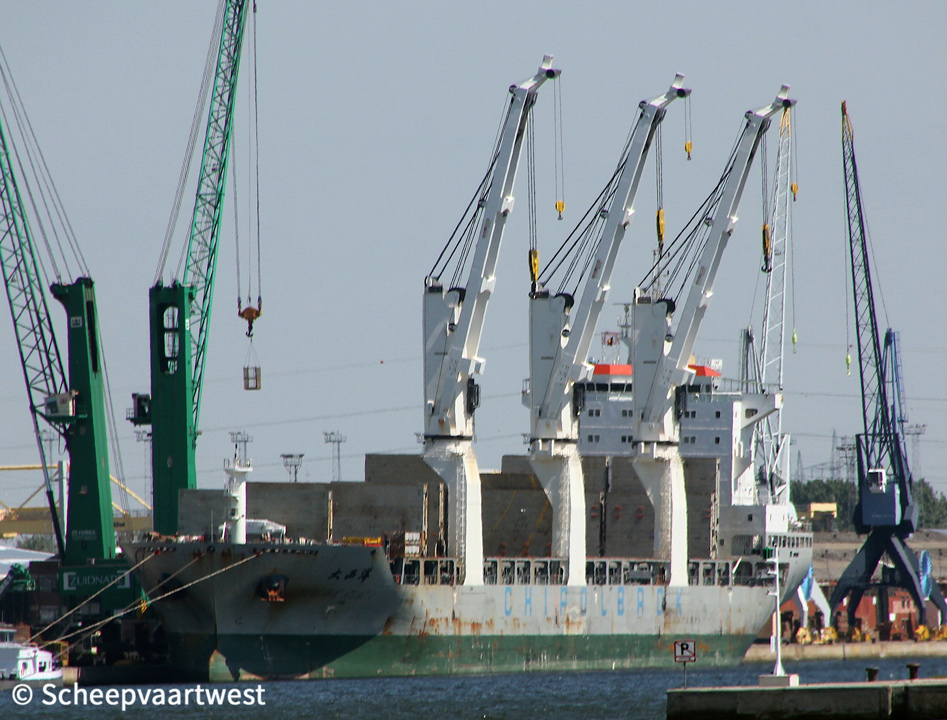

Chipolbrok Atlantic 02
Antwerpen 14/05/19









Name

CHIPOLBROK ATLANTIC

Type

General cargo vessel

IMO-number

9731377

Call sign

VRPP6

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

24.778 t

Suez: 27.761,6 t

DWT

Summer: 31.660,8 t

Winter: 30.607,1

NT

10.305 t

Suez: 23.611,99 t

Light ship

13.330 t

Number of 20ft containers

In hold: 891

On deck: 1.028

Total: 1.919

Length

189,90 m overall

184,00 m between perpendiculars

Breadth

28,00 m moulded

Height from keel to the top

Summer: 10,72 m

Winter: 10,28 m

Freeboard

Summer: 5.027 mm

Winter: 5.246 mm

Depth

15,50 m moulded

Speed

Max: 16,5 knots

Service: 15,7 knots

Built

2016

Keel laid

13/07/2015

Date of completion

05/07/2016

Builder

Hanghai Shipyard

China

Hull material

Steel

Main engine

1x Wärtsilä 6RT-Flex 50-D - 6 cylinder combustion engine 8.350 kW at 99,0 rpm

Manufacturer: Hudong Heavy Machinery

Propellers

1

Number of holds

3x Box

Cargo hold capacity

Grain: 43.022,3 m³

Bale: 39.913,1 m³

Number of hatches

5

Hatch 1 PS:25,25 x 20,56 m

Hatch 2 PS: 50,56 x 11,25 m

Hatch 2 SB: 50,56 x 11,25 m

Hatch 3 PS: 50,56 x 11,25 m

Hatch 3 SB: 50,56 x 11,25 m

Max permitted loads

Hatch covers: 3,0 t/m²

Tweendeck: 4,0 t/m²

Lower holds: 18,0 t/m²

Number of tanks

Fresh water: 2

Fuel oil: 7

Diesel oil: 2

Ballast water: 28

Tank capacities

Fresh water : 253,5 m³

Fuel oil: 1.6693,3 m³

Ballast: 1.3357,1 m³

Diesel oil: 3.530,4 m³

Cargo gear

3x Deck cranes – SWL 350 t each, max lifting capacity up to 700 t

Crew size

1x Provision crane – SWL 3,0 t

Manager

Chinese-Polish JSC (Chinsko-Polskie Towarzystwo Okretowe SA) (Chipolbrok)

Operator

Chinese-Polish Joint Stock Shipping Co.

26th-34th Floors, Gongshanglian Building, 55

Yan'an Donglu, Huangpu Qu

Shanghai, 200002

China

Owner

Chipolbrok Pacific Shipping Company Ltd.

Latest data adjustment

10 March 2020
