Westerschelde 08 June 2016 |
 |
|
| Westerschelde 06/06/16 | |
|
Name |

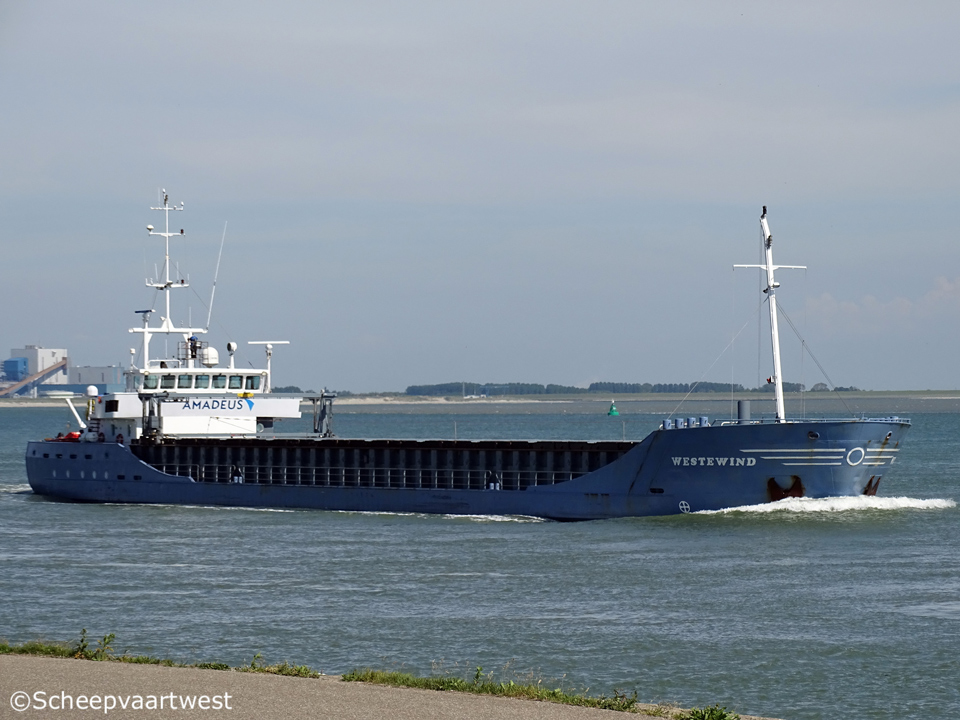

WESTEWIND |
|
Previous names |
|
|
Type |
General cargo ship - Heavycargo Multi-purpose dry cargo carrier |
|
IMO-number |
9201970 |
|
Call sign |
PBJC |
|
Flag |
The Netherlands |
|
Port of registry |
Wemeldinge |
|
GT |
2.080 |
|
DWT |
Summer: 2.800 t |
|
NT |
1.168 |
|
Number of 20ft containers |
In hold: 72 On deck: 36 Total: 108 |
|
Length |
88,95 m overall 84,95 m between perpendiculars |
|
Breadth |
12,40 m moulded |
|
Draught |
Summer: 4,34 m Winter: 4.260 t |
|
Air draft |
9,20 m in ballast |
|
Freeboard |
1.020 mm |
|
Depth |
5,65 m moulded |
|
Speed |
10,5 knots |
|
Built |
2003 |
|
Date of completion |
13/02/2003 |
|
Builder casco |
Ceskoslovenska Plavba Labska AS Decin Czech Republic |
|
Builder completion |
Scheepswerf Peters B.V. Kampen The Netherlands |
|
Yard number |
473 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
4 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L20 - 4 stroke single acting 8 cylinder 200 x 280 mm combustion engine 1.320 kW / 1.793 hp at 1.000 rpm Built: 01/2002 Builder: Wärtsilä NSD Corporation, Vaasa - Finland |
|
Propellers |
1x Screw propeller solid aft at 241 rpm 4 blades - Diameter: 2.300 mm |
|
Electric installations |
Power voltage: 400 V |
|
Generators |
2x Main diesel generatorsets each 112 kVA - 90 kW - 150 hp |
|
Emergency generator |
1x Diesel generatorset 77 kVA - 62 kW - 95 hp |
|
Bow thruster |
280 kW |
|
Number of holds |
1x Fully box and double skinned 62,20 x 10,24 x 6,75 m |
|
Hold capacity |
150.000 ft³ - 3.877 m³ |
|
Timber capacity |
In hold: 4.125 m³ On deck: 1st layer: 710 m³ 2nd layer: 260 m³ |
|
Hatches |
1 62,20 x 10,24 m |
|
Hatch covers |
Coops & Nieborg pontoon |
|
Max permitted loads |
Tanktop: 15,0 t/m² |
|
Tank capacities |
HFO: 225 m³ MGO: 225 m³ Water ballast: 1.277 m³ Fresh water: 33 m³ |
|
Manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Owner |
C.V. Scheepvaartonderneming Weststrate Delfzijl The Netherlands |
|
Registered owner |
J.L. Weststrate Wemeldingehe The Netherlands |
|
Previous names & owners |
|
|
Latest data adjustment |
17 August 2025 |
