Antwerpen 28 August 2018 |
 |
| Antwerpen 28/08/18 |
|
Name |

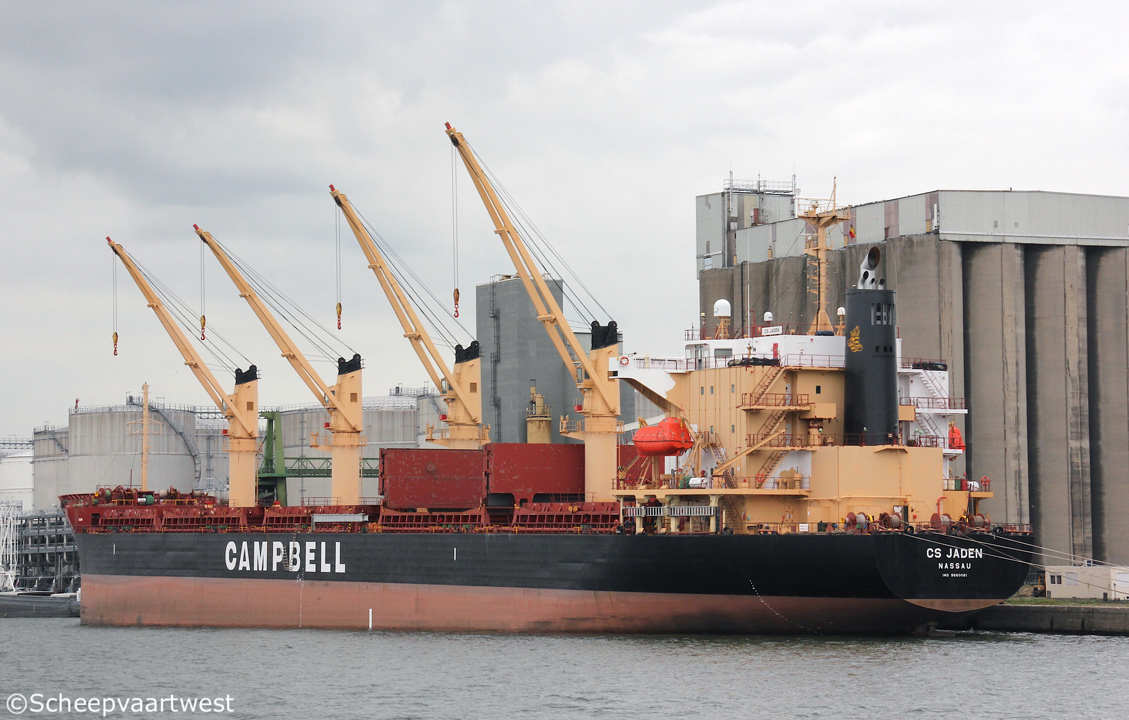

CS JADEN |
|
Type |
Bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9660061 |
|
Call sign |
C6AS4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
23.268 t registered Suez: 23.820,27 t |
|
DWT |
Summer: 38.101 t Winter: 37.038 t |
|
NT |
12.134 t registered Panama: 19.379 t Suez: 21.607,61 t |
|
Length |
179,97 overall |
|
Breadth |
29,83 m moulded |
|
Draught |
Summer: 10,54 m Winter: 10,32 m |
|
Freeboard |
4.500 mm |
|
Depth |
15,00 m moulded |
|
Speed |
15,9 knots |
|
Built |
2013 |
|
Keel laid |
03/11/2012 |
|
Delivery data |
26/06/2013 |
|
Builder |
Shimanami Shipyard Co., Ltd. |
|
Yard number |
H604 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
7 |
|
Main engine |
1x Makita /MAN B&W 6S46MC-C8.2 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 6.820 kW at 110 rpm Manufacturer: Makita Corporation(B&W) Ltd., Takamatsu - Japan |
|
Propellers |
1 |
|
Boilers |
1x Composite boiler - 8,0 bar Manufacturer: Miura Co. Ltd. |
|
Generators |
3x Main diesel generatorsets each 440 kW Manufacturer: Taiyo Electric Co. Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain / bale Hold 1: 7.707,42 m³ / 7.380,05 m³ Hold 2: 9.932,74 m³ / 9.575,67 m³ Hold 3: 9.966,82 m³ / 9.578,52 m³ Hold 4: 9/955,17 m³ / 9.577,94 m³ Hold 5: 9.563,50 m³ / 9.256,93 m³ Total: 47.125,65 m³ / 45.369,11 m³ |
|
Number of hatches |
5 Hatch 1: 15,86 x 17,16 m Hatch 2, 3, 4, 5: 20,04 x 20,02 m each |
|
Hatch cover type |
Steel folding type |
|
Max permitted loads |
Tanktop: Hold 1: 19,56 t/m² Hold 2 & 4: 15,03 t/m² Hold 3: 19,75 t/m² Hold 5: 19,81 t/m² Deck: 4,5 t/m² Hatch 1: 3,5 t/m& Hatches 2, 3; 4; 5: 4,0 t/m² |
|
Number of tanks |
Ballast: 22 Fuel oil: 16 Lubricating oil: 11 Fresh water: 5 Diesel oil: 4 Waste water: 3 Chain: 2 Sludge: 2 |
|
Tank capacities 100% |
Diesel Oil: 187;73 m³ Freshwater: 314,74 m³ Fuel Oil: 1.851,07 m³ Lube Oil: 100,53 m³ Tank Ballast: 15.124,27 m³ |
|
Cargo gear |
4x Cranes - SWL 30,5 t each |
|
Manager |
Campbell Shipping Company Limited |
|
Operator |
Campbell Shipping Co Ltd |
|
Owner |
Jaden Shipping Company Limited |
|
Latest data adjustment |
05 September 2018 |
