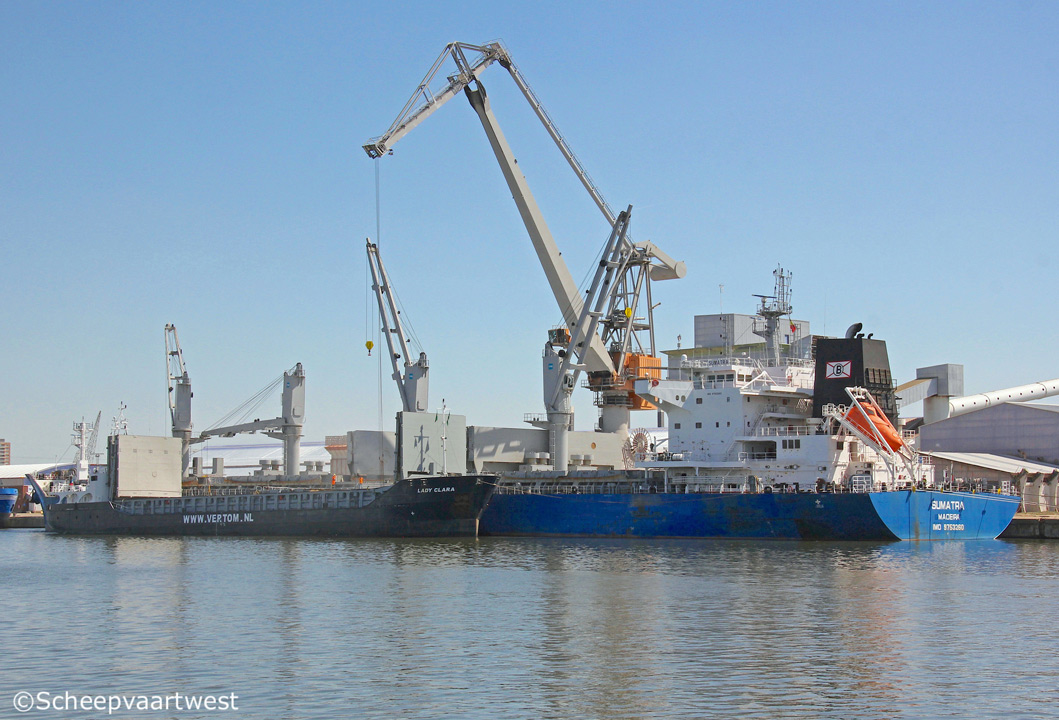

Sumatra 01

Antwerpen 07 May 2018



Name

SUMATRA

Type

Bulk carrier - Strengthened for heavy cargo loading -Open hatched

IMO-number

9753260

Call sign

CQIH7

Flag

Portugal

Port of registry

Madeira

GT

25.569 t registered

DWT

38.943 t

NT

13.064 t registered

Length

179,83 m overall

177,00 m between perpendiculars

Breadth

32,00 m moulded

Draught

10,52 m

Moulded L x B x D

177,00 x 32,00 x 15,00 m

Registered L x B x D

176,88 x 31,99 x 15,00 m

Freeboard

Summer: 4.522 mm

Depth

15,00 m moulded

Speed

14,0 knots

Built

2016

Keel laid

24/09/2014

Launch date

10/06/2015

Date of completion

02/01/2016

Builder

Huanghai Shipbuilding Co.; Ltd.
Rongcheng
China

Yard number

HCY150

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x 2 stroke single acting 5 cylinder 500 x 2.050 mm combustion engine 6.100 kW at 99,0 rpm

Manufacturer: Qingdaohaixi Marine Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 460 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 2,55 t/h

Manufacturer: Alfa Laval (Shanghai) Technologies Co., Ltd.

Generators

4x Generators total 2.589 kVA

Number of holds

Hold 1: 26,40 x 27,00 x 15,10 m

Hold 2: 28,80 x 27,00 x 15,10 m

Hold 3: 28,80 x 27,00 x 15,10 m

Hold 4: 28,80 x 27,00 x 15,10 m

Hold 5: 28,80 x 27,00 x 15,10 m

Cargo hold capacity

Grain / Bale:

Hold 1: 7.713 / 7.294 m³

Hold 2: 11.229 / 10.753 m³

Hold 3: 10.943 / 10.539 m³

Hold 4: 11.237 / 10.751 m³

Hold 5: 9.728 x 9.261

Total: 50,850 / 48.598 m³

Hold ventilation

Natural

Number of hatches

5

Hatch 1: 9,60/20,80 x 6,40 x 16,20 m

Hatch 2: 20,00 x 27,00 m

Hatch 3: 20,00 x 27,00 m

Hatch 4: 20,00 x 27,00 m

Hatch 5: 20,00 x 27,00 m

Max permitted loads

Tanktop: 25,0 t/m² uniform load

Tank capacities

Fuel oil: 1.399,1 m³

Fresh water: 286,2 m³

Cargo gear

4x Cranes - SWL 35,0 t each

Commercial manager

Aug. Bolten WM. Miller'S Nachfolger (GmbH & Co.) KG
Mattentwiete 8
20457 Hamburg
Germany

Operator

SSP - Sea Stallion Pool Inc.

Registered owner

Green Dolphin GmbH & Co. KG
Germany

Latest data adjustment

15 May 2018
