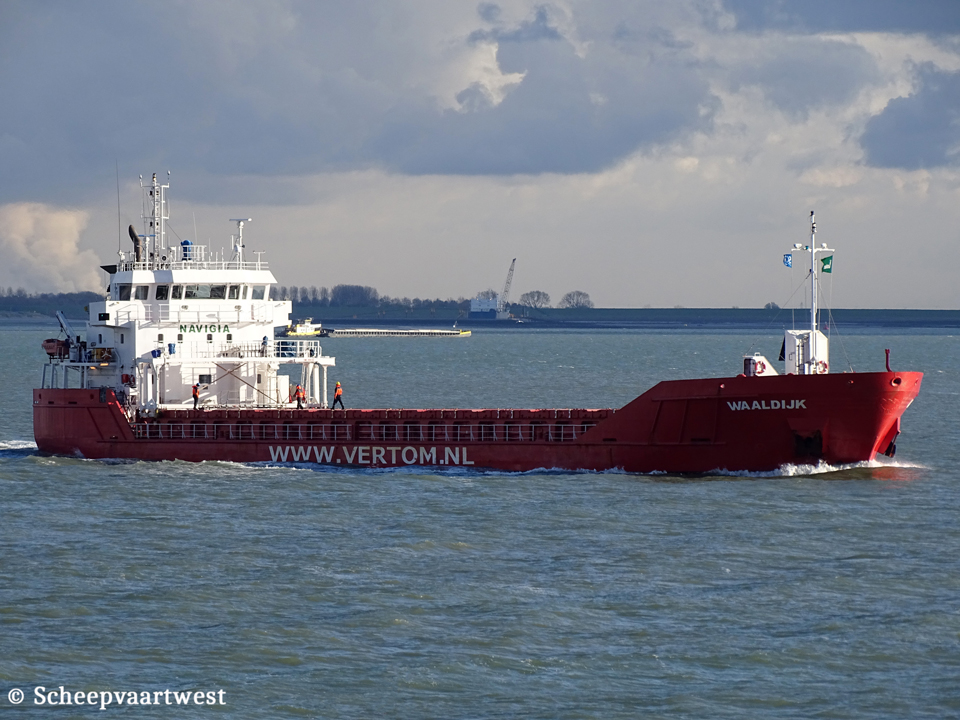

Westerschelde 19 November 2019 |
 |
|

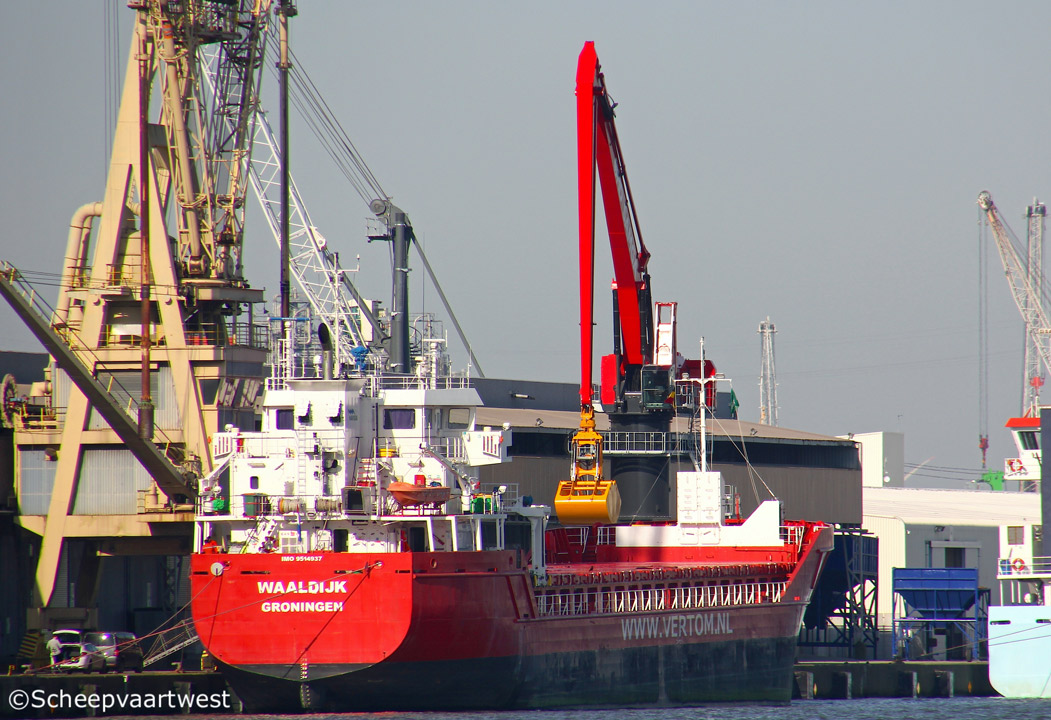

| Antwerpen 06/04/18 | |
|
Name |
WAALDIJK |
|
Previous names |
2010 build as: JRS Auriga |
|
Type |
Multi-Purpose dry cargo ship - Strengthened for heavy cargo - Gearless box singledecker |
|
IMO-number |
9514937 |
|
Call sign |
PBZA |
|
Flag |
The Netherlands |
|
Port of registry |
Groningen |
|
GT |
2.984 t |
|
DWT |
Summer: 4.891 t |
|
DWCC |
Summer: 4.600 t Winter: 4.500 t |
|
NT |
1.598 t |
|
Number of 20ft containers |
On deck: 38 |
|
Length |
89,95 m overall 84,94 m between perpendiculars |
|
Breadth |
14,40 m extreme |
|
Draught |
Summer: 6,22 m Winter: 6,09 m |
|
Air draft |
22,50 m 19,00 m mast down |
|
Depth |
7,85 m |
|
Speed |
11,5 knots |
|
Built |
2010 |
|
Keel laid |
17/12/2008 |
|
Launch date |
24/10/2009 |
|
Delivery date |
07/07/2010 |
|
Builder |
Chowgule & Company Pvt. Ltd. Shipbuilding Division Loutulim Goa India |
|
Yard number |
190 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x (in 8 positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.980 kW Manufacturer: Caterpillar Motoren Guangdong Co. Ltd., Foshan - China |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
1x 312 kW |
|
Generators |
1x 645 DSBIG main diesel generatorset 168 kW |
|
Emergency generator |
1x 645 DSBIG diesel generatorset 168 kW |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 62,30 x 11,70 x 8,10 m Full box: over 50,28 x 11,70 x 8,10 m |
|
Hold capacity |
5.818 m³ / 205.471 ft³ |
|
Number of hatches |
1 62,25 x11,70 m |
|
Hatch type |
10x Pontoon hatch covers |
|
Max permitted loads |
Tanktop: 15,0 t/m², suitable for heavy cargo capable to load steel coils of max 30,0 t each Hatch covers: 1,6 t/m² |
|
Tank capacities |
Ballast: 1.922 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
|
Lifting equipment |
1x Gantry crane for pontoons |
|
ISM & commercial manager |
Navigia Shipmanagement B.V. Eenrumermaar 2 9735 AD Groningen The Netherlands |
|
Operator |
Vertom Oever 7 3161 GR Rhoon The Netherlands |
|
Registered owner |
Waaldijk II B.V. Care of Navigia Shipmanagement BV Eenrumermaar 2 9735 AD Groningen The Netherlands |
|
Previous owner |
07/2010 - 11/2015 Waaldijk B.V., Groningen - The Netherlands |
|
Latest data adjustment |
09 October 2022 |
