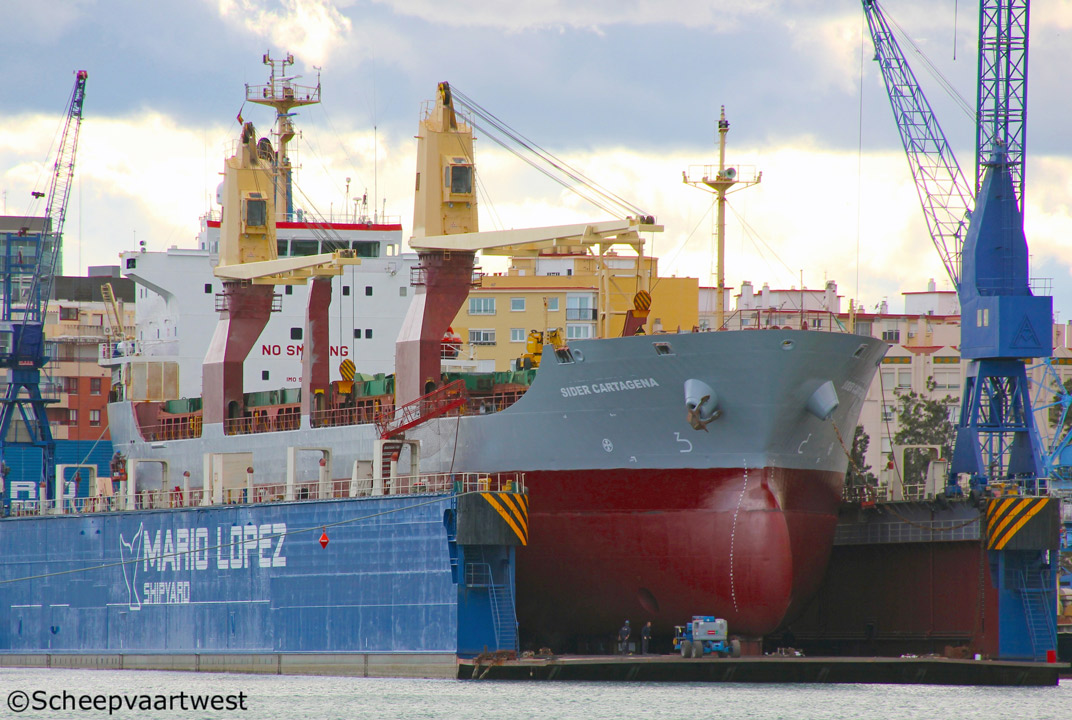

Sider Cartagena 01

Malaga, Spain 18 March 2018



Name

SIDER CARTAGENA

Previous names

2006 - 03/2018 Hellen C

Type

General cargo single-deck boxy bulker

IMO-number

9331490

Call sign

MKWB6

Flag

Isle of Wight - United Kingdom

Port of registry

Cowes

GT

9.177 t

DWT

Summer: 13.497 t

NT

4.751 t

Number of 20ft containers

On hatch cover: 182

Length

136,40 m overall

126,10 m between perpendiculars

Breadth

21,20 m moulded

Draught

8,35 m moulded

Depth

11,30 m moulded

Speed

14,5 knots

Built

2006

Date of completion

30.11.2005

Builder

Kyokuyo Shipbuilding & Iron Works
Shimonoseki
Japan

Yard number

462

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Continuous decks

1

Main engine

1x MAN-B&W-Mitsui 7S35MC MK7 - 2 stroke 7 cylinder diesel engine - Output 7.042 bhp / 5.180 kW at 173 rpm

Builder: Mitsui Engineering & Heavy Machinery Co.Ltd.(B&W), Chiba

Propellers

1x Solid propeller - aft at 173 rpm

Boilers

1x CHO 17,30 m²
1x CHR 69,80 m²

Generators

3x Daihatsu 5DC17 diesel generatorsets each 400 kW

Emergency generator

1x Mitsui Zosin BF6L913C diesel generatorset

Bow thruster

1x 526 kW

Number of holds

4

Ho 1: 19,40 m x (17,60 m aft / 5,60 m fore) x 11,56 m
Ho 2: 24,85 m x 17,60 m x 11,56 m
Ho 3: 24,85 m x 17,60 m x 11,56 m
Ho 4: 15,80 m x 17,60 m fore / 8,40 m aft) x 11,56 m

Hold capacity

Ho 1: 3.290 m³ grain
Ho 2: 5.140 m³ grain
Ho 3: 5.140 m³ grain
Ho 4: 3.430 m³ grain
Total: 17.000 m³ grain

Number of hatches

4

Ha 1: 16,10 m x 12,60 m
Ha 2: 24,85 m x 17,60 m
Ha 3: 24,85 m x 17,60 m
Ha 4: 15,80 m x 17,60 m

Hatch cover type

Macgregor folding type

Tank capacities

Heavy fuel oil: 1.020 m³
Gas oil: 110 m³
Ballast water: 3.990m³
Fresh Water: 120 m³

Cargo gear

2x Mitsubishi electro hydraulic cranes - SWL 30 t starboard side + 2x 10 m³ smag-peiner radio controlled grabs

Crew size

14

Manager

Carisbrooke Shipping Limited
38 Medina Road
Cowes
Isle of Wight
United Kingdom

Owner

Selandia Shipmanagement Singapore

Latest data adjustment

07 April 2018
