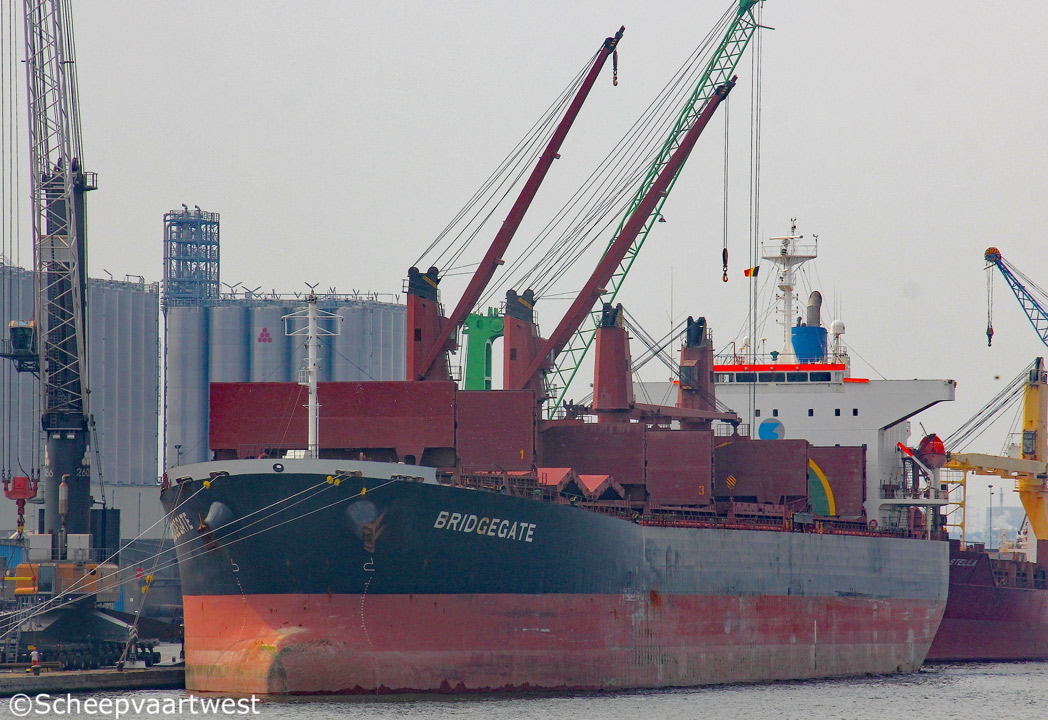

Bridgegate 01

Antwerpen 26 August 2017



Name

BRIDGEGATE

Type

Bulk carrier - Strengthened for heavy cargo

Handy/Panamax

IMO-number

9538945

Call sign

9V2189

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

2010 - 2013 United kingdom

GT

29.977 t registered

Suez: 31.025 t

DWT

Summer: 53.477 t

Winter: 52.092 t

NT

18.486 t registered

Panama: 24.880 t

Suez: 28.578 t

Length

189,94 m overall

Breadth

32,26 m moulded

Draught

Summer: 12,30 m

Winter: 12,05 m

Moulded L x B x D

182,00 x 32,26 x 17,30 m

Registered L x B x D

183,06 x 32,26 x 17,30 m

Displacement

61.965 t

Lightship

8.488 t

Freeboard

Summer: 5.037 mm

Depth

17,30 m moulded

Speed

Max: 16,9 knots

Service: 14,0 knots ballast

Built

2010

Keel laid

24/12/2004

Launch date

26/05/2010

Date of completion

12/07/2010

Builder

Imabari Shipbuilding Co., Ltd.
Imabari
Japan

Yard number

736

Hull material

Steel

Main engine

1x 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm

Manufacturer: Hitachi Zosen Corporation Ariake Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 490 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation:2,40 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators - 1.715 kVA

Number of holds

5

Cargo hold capacity

Grain / Bale:

Hold 1: 13.160 / 12.450 m³

Hold 2: 14.074 / 13.340 m³

Hold 3: 14.094 / 13.340 m³

Hold 4: 14.147 / 13.430 m³

Hold 5: 13.450 / 12.870 m³

Total: 68.927 / 65.430 m³

Number of hatches

5

Hatch 1-5: 21,12 x 17,60 m

Tank capacities

Fuel oil: 2.316 m³

Fresh water: 408 m³

Cargo gear

4x Mitsubishi cranes - SWL 30 t each

Manager

Eastern Pacific Shipping Pte. Ltd.
Head Office
1 Temasek Avenue
#38 - 01 Millenia Tower
Singapore 039192
Republic of Singapore

Registered owner

Leforne Shipping Inc.

Latest data adjustment

03 March 2018
