Antwerpen 26 January 2018 |
|
Name |

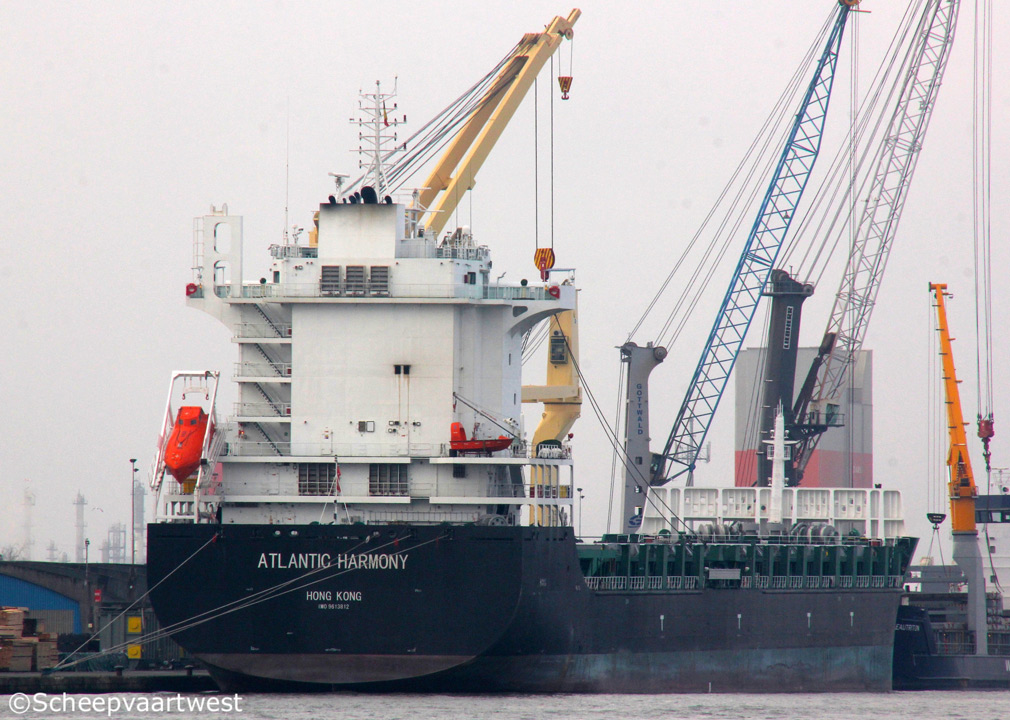

ATLANTIC HARMONY |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9613812 |
|
Call sign |
VRQV8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
22.362 t |
|
DWT |
31.776,77 t |
|
NT |
10.179 t |
|
Displacement |
Summer: 41.981 t |
|
Lightship |
10.183,26 t |
|
Number of 20ft containers |
1.640 |
|
Length |
166,07 m overall 158,32 m between perpendiculars |
|
Breadth |
28,74 m extreme 27,40 m moulded |
|
Draught |
11,00 m |
|
Max height from keel |
47,45 m |
|
Freeboard |
Summer: 4.522 mm |
|
Depth |
15,50 m |
|
Speed |
Max: 16,4 knots |
|
Built |
2017 |
|
Keel laid |
04/12/1015 |
|
Launch date |
30/12/2016 |
|
Date of completion |
20/07/2017 |
|
Builder |
Huanghai Shipbuilding Co., Ltd. China |
|
Yard number |
HCY-148 |
|
Hull material |
Steel |
|
Main engine |
1x MAN B&W 6S46ME BB2 - 6 cylinder diesel engine 6.480 kW |
|
Propellers |
1x Fixed propeller, right handed |
|
Boilers |
1x Auxiliary boiler, composite CMB-VS-1.2+0.49/7 |
|
Generators |
3x Daihatsu 6DK-20e/ZFC main diesel generatorsets Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Factory |
|
Emergency generator |
1x Doosan AD136TI diesel generatorset |
|
Number of cargo holds |
2 |
|
Tank capacities |
Fresh water: 441,94 t HFO: 1.546,91 m³ MGO: 183,39 m³ Ballast: 12.758,38 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Cargo gear |
2x Cranes - SWL 250 t each 1x Crane - SWL 100 t |
|
Manager |
Istanbul Denizcilik ve Deniz Tasimaciligi A.S. Sisli - Istanbul |
|
Registered owner |
Digital Epoch Limited |
|
Latest data adjustment |
19 February 2018 |
