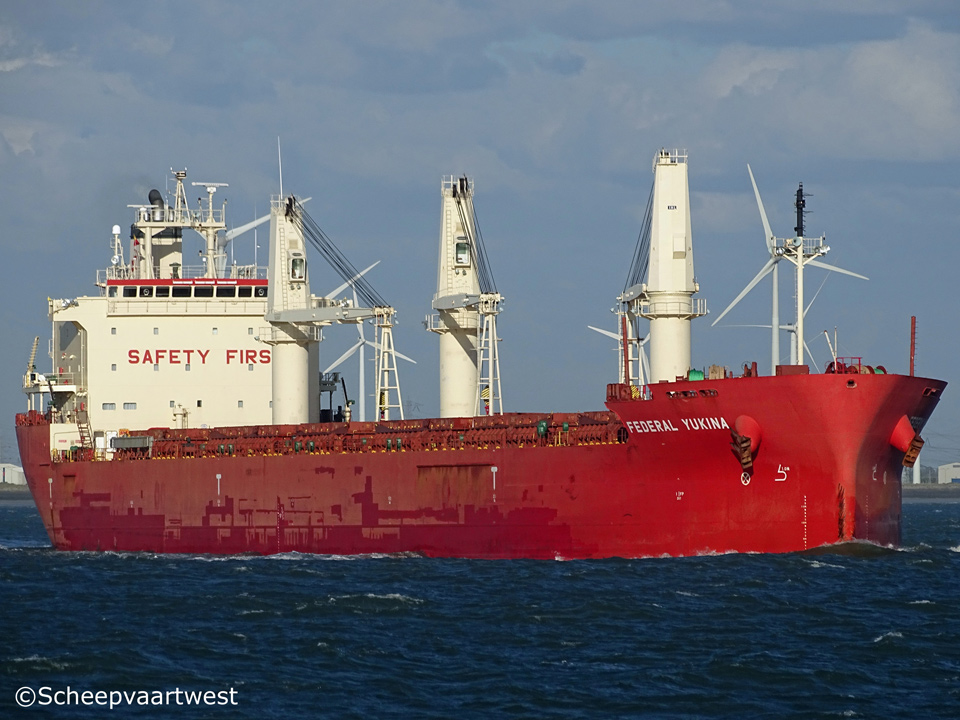

Federal Yukina - IMO 9476977

Westerschelde 04 August 2017

Name

FEDERAL YUKINA

Type

Handymax bulk carrier

IMO-number

9476977

Call sign

VRHN7

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

20.465 t registered

DWT

Summer: 35.868 t

Winter: 34.899 t

NT

12.136 t registered

Panama: 17.077 t

Suez: 19.782 t

Length

199,98 m overall

Breadth

23,80 m extreme

Draught

Summer: 10,84 m

Winter: 10,62 m

Depth

14,85 m

Speed

Service: 14,0 knots

Built

2010

Keel laid

10.05.2010

Launch date

04.09.2010

Date of completion

28.10.2010

Builder

Oshima Shipbuilding Co., Ltd.
1605-1 Oshima-cho
857-2494 Saikai City
Japan

Yard number

10581

Hull material

Steel

Bulkheads

Transverse: 8

Continuous decks

1

Main engine

1x MAN B&W 6S46MC-C - 2 stroke 6 cylinder diesel engine 10.710 hp at 129 rpm

Propellers

1x Fixed mono-block propeller

Boilers

1x Auxiliary boiler, composite GCS-22ST

Builder: Aalborg Industries A/S

Generators

3x Yanmar 6EY18 diesel generatorsets each 740 kW

Emergency generator

1x Deutz BF6L913 diesel generatorset

Bow thruster

Yes

Number of holds

6

Hold 1: 27,30 x 6,01/19,89 m

Hold 2: 27,00 x 19,89 / 19,89 m

Hold 3: 27,00 x 19,89 / 19,89 m

Hold 4: 21,60 x 19,89 / 19,89 m

Hold 5: 27,00 x 19,89 / 19,89 m

Hold 6: 27,00 x 19,89 / 9,96 m

Cargo hold capacity

Grain / Bale:

Hold 1: 7.011 m³ / 6.754 m³
Hold 2: 7.712 m³ / 7.429 m³
Hold 3: 7.465 m³ / 7.175 m³
Hold 4: 6.357 m³ / 6.085 m³
Hold 5: 7.719 m³ / 7.425 m³
Hold 6: 7.209 m³ / 7.097 m³
Total: 43.554 m³ / 41.965 m³

Number of hatches

6

Hatch 1: 17,10 x 13,20 m
Hatch 2: 19,80 x 13,20 m
Hatch 3: 19,80 x 13,20 m
Hatch 4: 13,50 x 13,20 m
Hatch 5: 19,80 x 13,20 m
Hatch 6: 18,00 x 13,20 m

Hatch cover type

Folding hydraulic

Tanktop strength

Hold 1: 22,0 t/m²

Hold 2: 20,5 t/m²

Hold 3: 21,0 t/m²

Hold 4: 24,5 t/m²

Hold 5: 21,0 t/m²

Hold 6: 22,0 t/m²

Tank capacities

Ballast: 19.282,7 m³

IFO: 1.401 m³

MDO: 436 m³

Anchor equipment

Length: 605,00 m

Diameter: 62 mm

Cargo gear

3x Electro - hydraulic deck cranes - SWL 30,5 t each

Crew size

30

Manager

Anglo-Eastern Ship Management Ltd.
23/F, 248 Queen`s Road East, Wanchai
Hong Kong - China

Operator

FEDNAV managements

1000 de La Gauchetière Street West, Suite 3500
Montreal
Quebec H3B 4W5
Canada

Registered owner

Salter Shipping, S.A.

Latest data adjustment

25 October 2017
