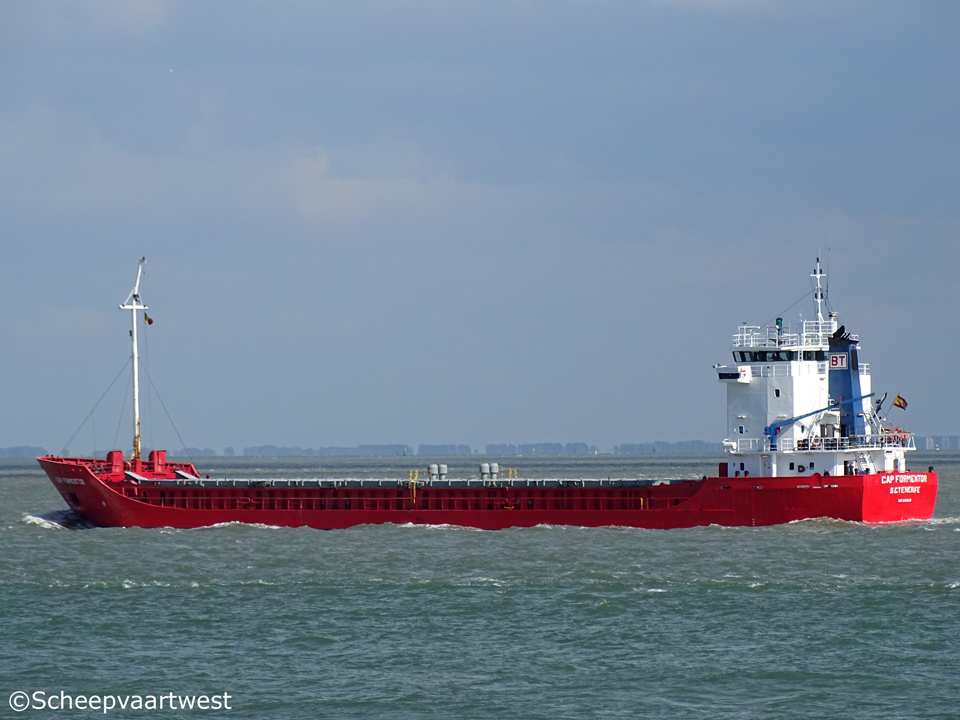

Cap Formentor 01

Westerschelde 03 July 2016



Name

CAP FORMENTOR

Previous names

1996 - 01.2006 Alblas

01/2006 - 05/2017 Cap Formentor

Type

General cargo ship - Tanktop strengthened for coil loading - Equipped for carriage of containers - Strengthened for heavy cargo

Products

Steel coils, bulk, containers, forest products, grain-fitted

IMO-number

9108829

Call sign

ECKR

Flag

Spain

Port of registry

Santa Cruz De Tenerife

Previous flags

12/1996 - 07/2004 The Netherlands, Papendrecht - Call sign: PCAL

07/2004 - 01/2006 The Netherlands, Zwartsluis - Call sign: PCAL

GT

3.443 t

DWT

Summer: 4.985 t

Winter: 4.825 t

DWCC

4.750 t

NT

1.829 t

Number of 20ft containers

In hold: 132

On hatches: 130

Total: 262

Length

93,42 m overall

84,90 m between perpendiculars

Breadth

15,06 m extreme

Draught

Summer: 6,27 m

Air draft

20,44 m ballast

Depth

8,00 m moulded

Speed

13,0 knots

Built

1996

Keel laid

26/04/1996

Launch date

14/11/1996

Date of completion

01/12/1996

Builder

Santierul Naval Severnav S.A.

Severin

Romania

Yard number

127

Hull material

Steel

Grain bulkheads

3 Store positions

Continuous decks

1

Main engine

1x Krupp-MaK 6M32 - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 2.625 kW

Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1

Number of holds

2

Hold 1: 32,60 x 12,70 x 8,80 m

Hold 2: 27,05 x 12,70 x 8,80 m

Cargo hold capacity

Grain / bale:

Hold 1: 3.194 m³

Hold 2: 2.952 m³

Total: 6.446 m³ / 227.639 ft³

Hold ventilation

6x Air-changes/hour

Number of hatches

2

Hatch 1: 30,80 x 12,70 m

Hatch 2: 27,05 x 12,70 m

Max. permitted loads

Tanktop: 15,0 t/m²

Hatch covers: 1,7 t/m²

Tank capacities

Ballast: 1.976 m³

Anchor equipment

Length: 467,50 m

Diameter: 40 mm

Manager

Transportes Maritimos De Alcudia

Alcudia

Spain

Previous managers

12/1996 - 07/2004 Rederij 'Alblas' B.V., Papendrecht - The Netherlands

07/2004 - 01/2006 B.V. Wantij, Zwijndrecht - The Netherlands

Owner

Transportes Maritimos De Alcudia

Alcudia

Spain

Previous names & owners

12/1996 - 07/2004 Alblas - Rederij 'Alblas' B.V., Papendrecht - The Netherlands

07/2004 - 01/2006 Alblas - VoF Scheepvaartonderneming 'Alblas', Zwartsluis - The Netherlands

Renamed

05/2017 Mandeo - Spain, Santa Cruz de Tenerife - Call sign: ECKR

Owner & manager: Naviera de Galicia, S.A.

Latest data adjustment

13 June 2022
