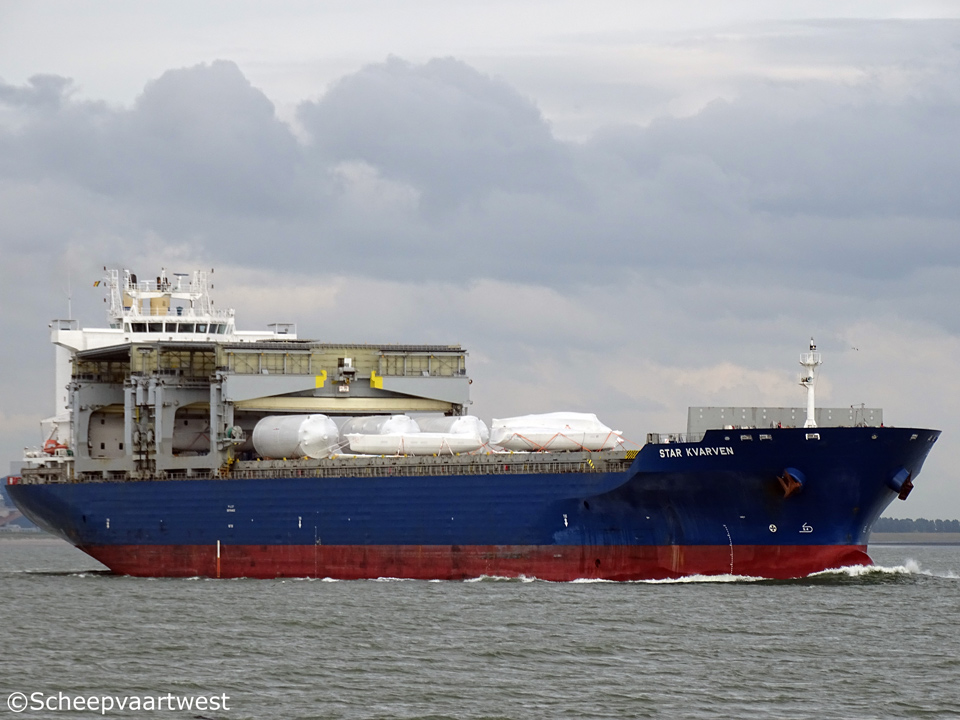

Star Kvarven 01

Westerschelde 30 June 2016

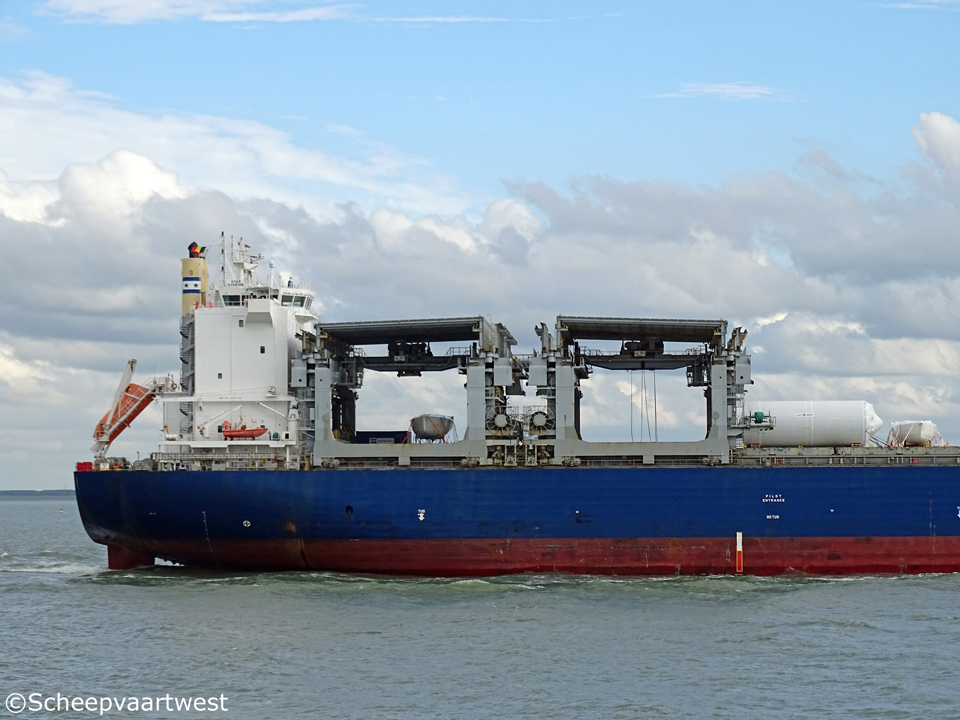

Star Kvarven 02
Westerschelde 30/06/16



Name

STAR KVARVEN

Type

General cargo ship - Container ship - Open hatch

IMO-number

9396153

Call sign

LAJK7

Flag

Norway

Port of registry

Bergen

GT

37.158 t

DWT

Summer: 49.856 t

NT

13.824 t

Number of 20ft containers

On hatch: 802

In holds: 618

Total: 1.420

Length

208,77 m overall

197,40 m between perpendiculars

Breadth

32,20 m

Draught

12,34 m

Depth

19,50 m

Speed

Max.: 19,6 knots

Built

2010

Keel laid

21.10.2009

Launch date

12.01.2010

Date of completion

20.04.2010

Builder

Hyundai Mipo Dockyard Co., Ltd.
South Korea

Yard number

8004

Hull material

Steel

Continuous decks

1

Main engine

1x Hyundai MAN B&W 5S60MC-C Mk 8 - 2 stroke single acting 5 cylinder diesel engine:

MCR: 11.900 kW at 105 rpm

NCR: 10.710 kW at 101,4 rpm

Propellers

1x Mono-block fixed pitch propeller

Builder: Hyundai Heavy Industries Co., Ltd.

Boilers

1x Auxiliary boiler, oil/gas fired - 7,0 bar

Steam production: 1.600 kg/hr

1x Auxiliary boiler, exhaust gas heated (Economizer) - 7,0 bar

Builder: KangRim Industries Co. Ltd.

Generators

2x Hyundai 7H21/32 - 4 stroke single acting 7 cylinder diesel engines output each 1.440 kW at 900 rpm coupled with generatorsets each 1.350 kW

1x Hyundai 5H21/32 - 4 stroke single acting 5 cylinder diesel engine output each 800 kW at 900 rpm coupled with generatorset each 750 kW

Builder: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Cummins 855 diesel generatorset

Compressed air receivers

2x Main air compressors: Sauer compressor-unit WP200 - 200 m³/h capacity at 30,0 bar each
1x Emergency air compressor: Sauer compressor Unit Type WP33L - 38 m³/h capacity at 30,0 bar
1x Working air compressor: Atlas Copco compressor Type GA 37 VSD-175-60 - 388 m³/h capacity at 7,5 bar

Bow thruster

1x 1.500 kW, forward

1x 750 kW, aft

Number of holds

11x Box-shaped cargo holds

Cargo hold capacity

Hold 1: 4.435 m³
Hold 2: 6.545 m³
Hold 3: 6.713 m³
Hold 4: 6.713 m³
Hold 5: 6.713 m³
Hold 6: 6.713 m³
Hold 7: 6.713 m³
Hold 8: 6.713 m³
Hold 9: 6.545 m³
Hold 10: 5.553 m³
Hold 11: 1.849 m³
Total: 65.206 m³

Tank capacities

Ballast: 20.700,5 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Lifting equipment

2x Provision cranes - SWL 4,0 t each

1x Overhead crane engine room - SWL 4,0 t

Cargo gear

2x Gantry cranes - SWL 70,0 t each

Crew size

32

Manager

Grieg Star AS

Operator

Grieg Star AS

Owner

Grieg International II A/S
Bergen
Norway

Latest data adjustment

09 September 2017
