Westerschelde 01 October 2018 |
 |
| Westerschelde 03/04/17 |
|
Name |

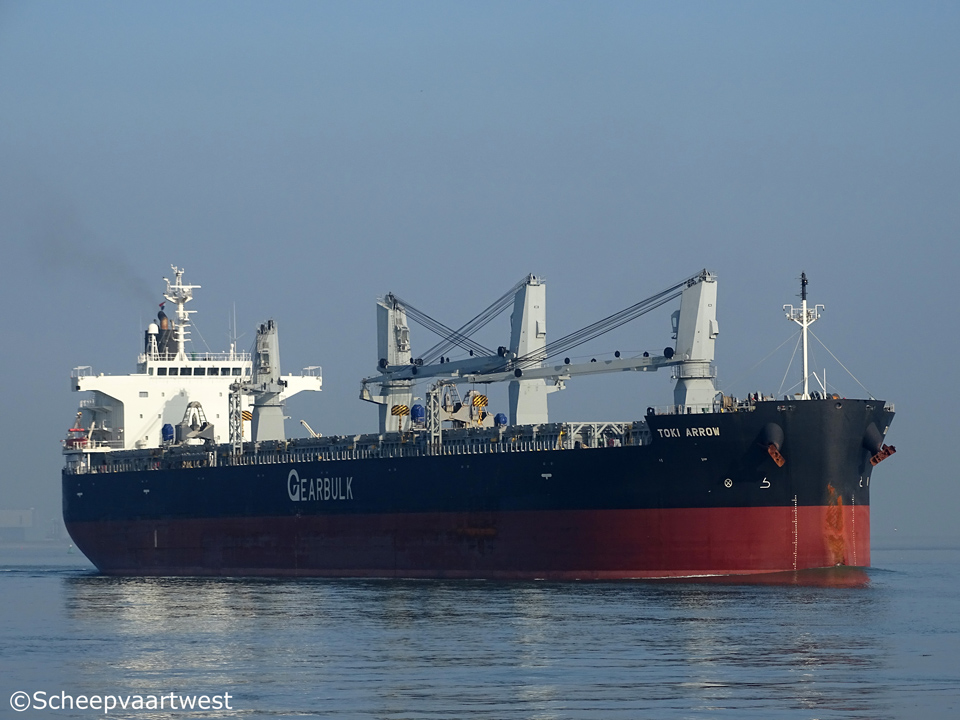

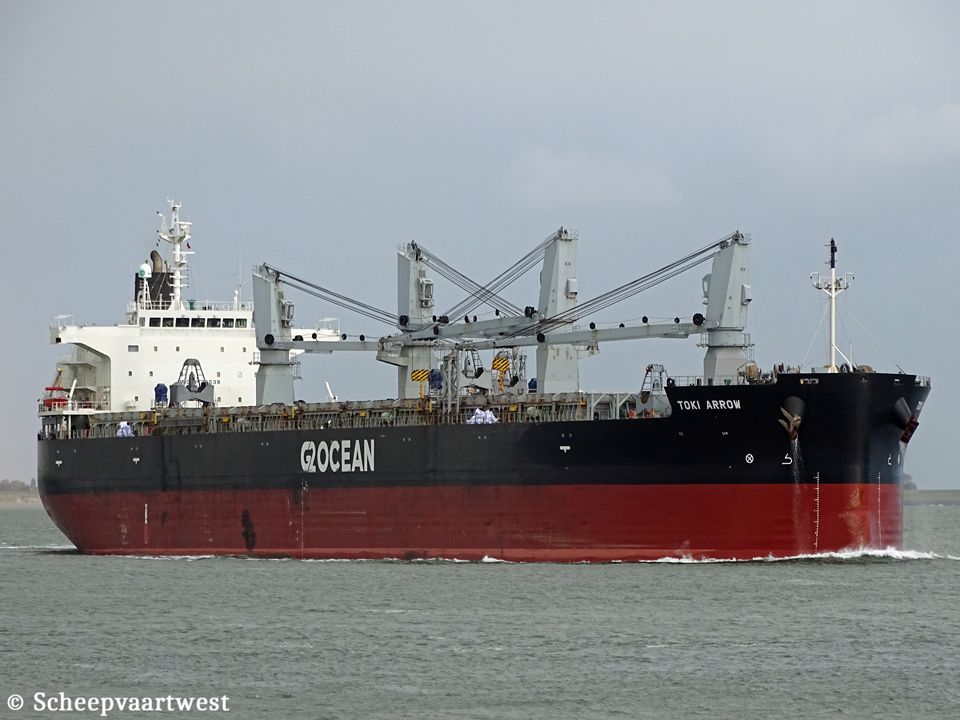

TOKI ARROW |
|
Type |
Bulk carrier- Open hatch jil crane vessel - Strengthened for heavy cargo loading Fleximax II |
|
IMO-number |
9434539 |
|
Call sign |
3FYU5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
36.925 t registered |
|
DWT |
62.942 t |
|
NT |
18.303 t registered |
|
Number of 20ft containers |
270 |
|
Number of 40ft containers |
132 |
|
Length |
199,98 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 13,51 m |
|
Moulded L x B x D |
196,00 x 32,26 x 19,22 m |
|
Registered L x B x D |
196,11 x 32,26 x 19,22 m |
|
Freeboard |
5.786 mm |
|
Depth |
19,22 m moulded |
|
Speed |
Max.: 15,8 knots Service: 14,5 knots |
|
Built |
2010 |
|
Keel laid |
05/06/2006 |
|
Launch date |
04/09/2010 |
|
Date of completion |
22/10/2010 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10572 |
|
Hull material |
Steel |
|
Main engine |
1x Kawasaki/MAN-B&W-6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.605 kW at 110,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 495 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,87 t/h Manufacturer: Aalborg Industries Limited |
|
Generators |
3x Main diesel generatorsets each 800 kW |
|
Bow thruster |
1x 1.400 kW |
|
Number of holds |
8 Hold 1: 16,80 x 14,80 x 19,26 m Hold 2-8: 18,30 x 24,40 x 19,26 m |
|
Cargo hold capacity |
Bale: 70.283 m³ Grain: 70.354 m³ |
|
Max permitted loads |
Hatch covers: 2,50 t/m² Tanktop: 1, 2, 4, 6, 8: 27,0 t/m² Tanktop 3, 5, 7: 28,0 t/m² |
|
Tank capacities |
Fuel oil: 2.267 m³ Fresh water: 551 m³ |
|
Cargo gear |
4x Cranes Jib - SWL 40,0 t each Grab fitted: 4x 12 m³ each |
|
Manager |
Faith Marine Limited Care of Navios Shipmanagement InC. 85, Akti Miaouli 185 38 Piraeus Greece |
|
Operator |
G2 Ocean AS Grieg-Gaarden, C. Sundtsgate 17 Bergen Norway |
|
Previous operator |
Gearbulk, Bergen - Norway |
|
Registered owner |
Million Comets S.A. C/o KK Kyowa Sansho Kyowa Bulding 8-18 Chuo 3-chome, Hure-shi Hiroshima-ken 737-0051 Japan |
|
Latest data adjustment |
30 March 2021 |
