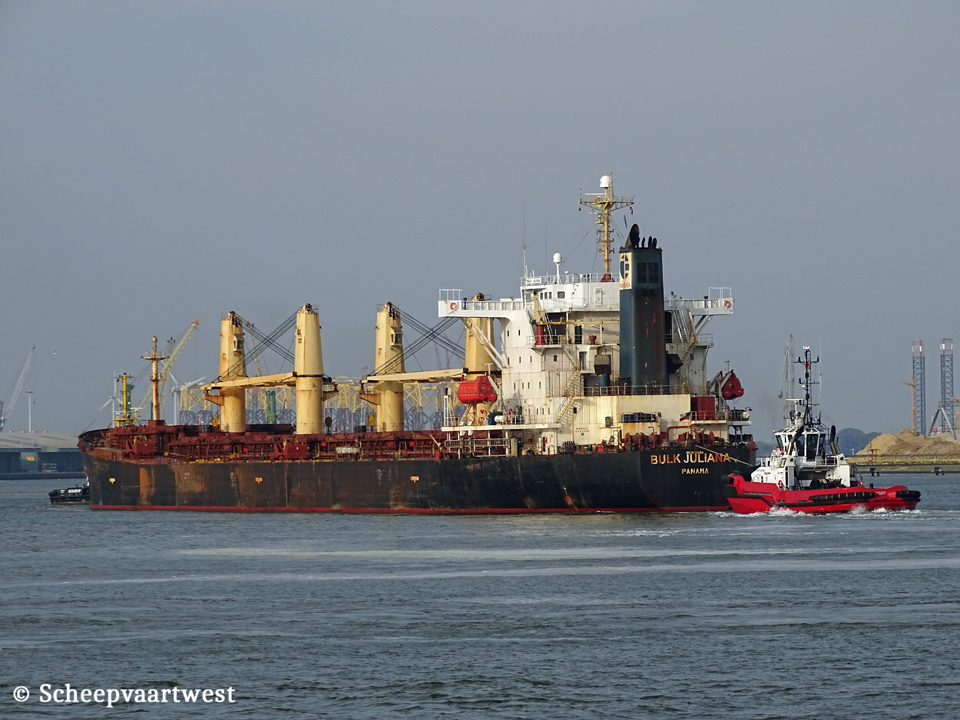

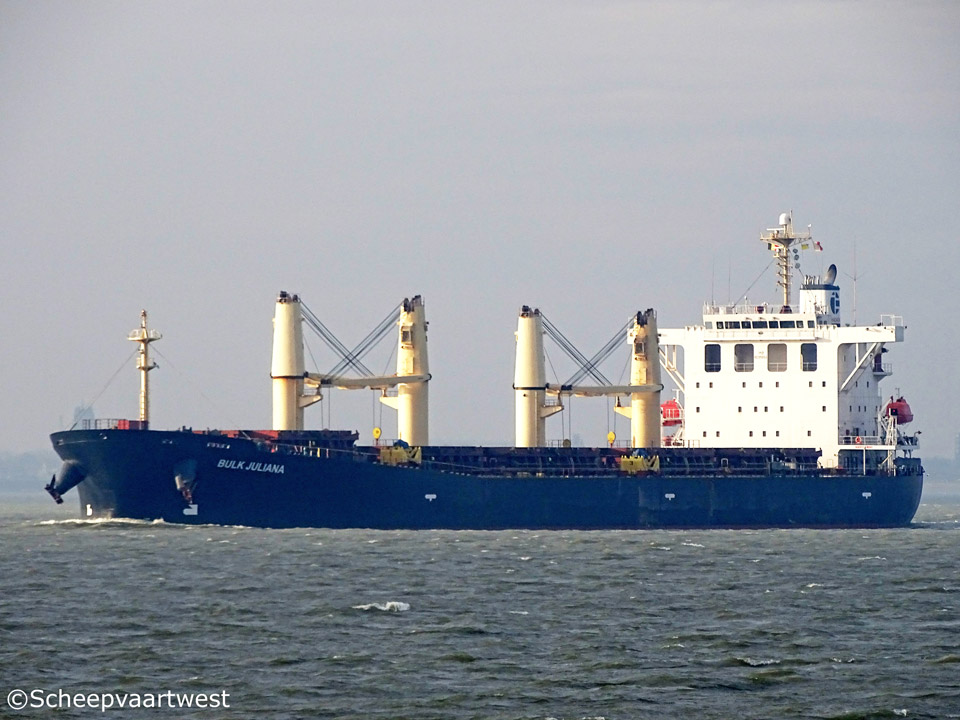

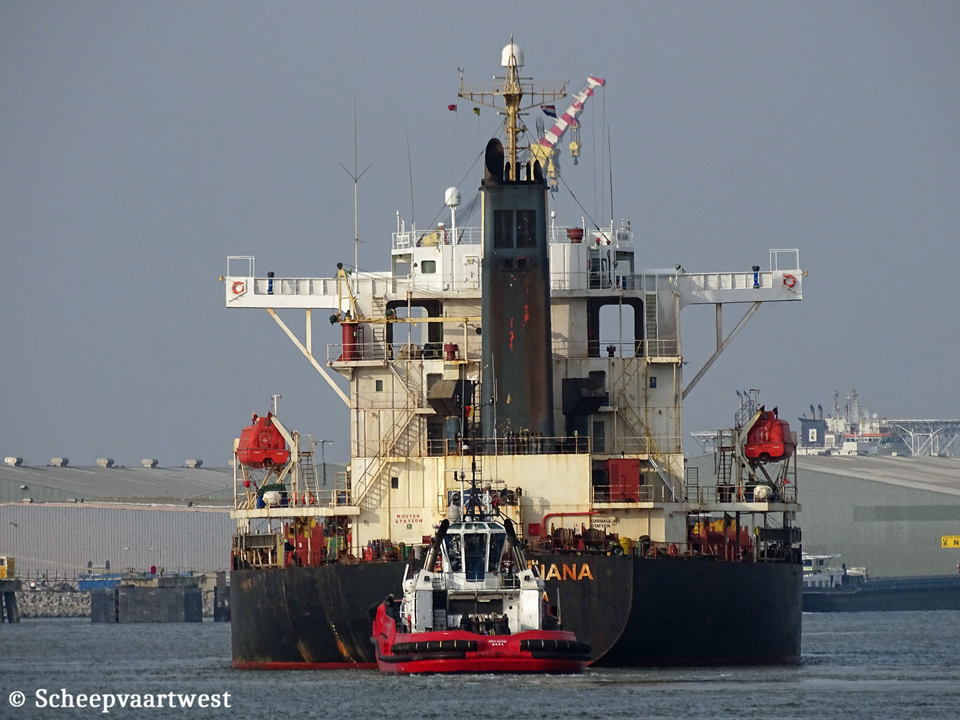

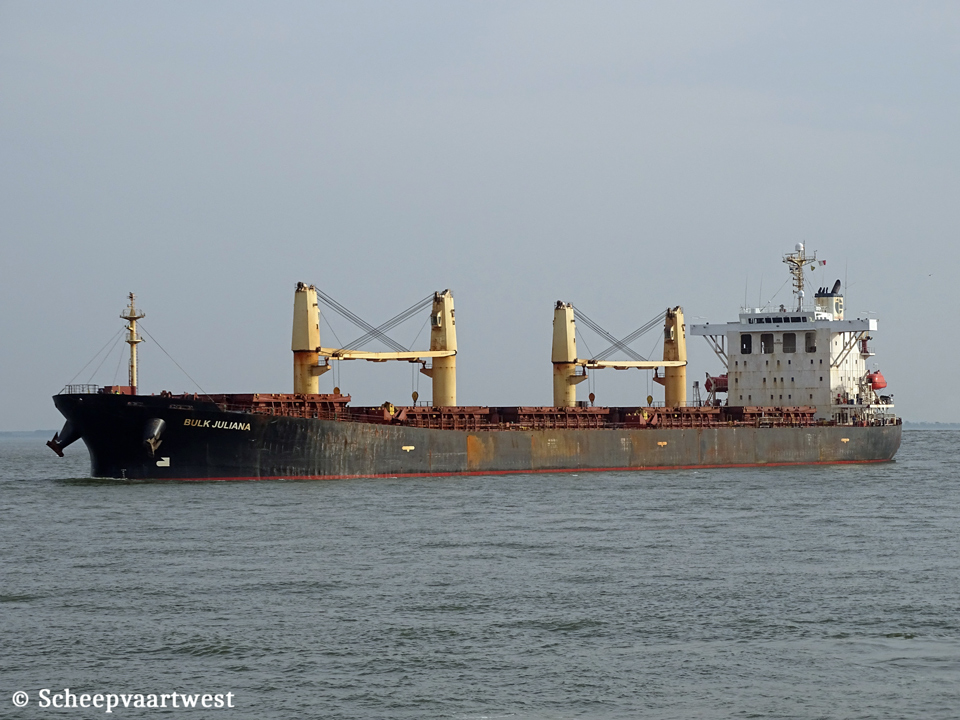

Westerschelde 23 April 2019 |
 |
 |
 |
||
| Vlissingen 23/04/19 | Vlissingen 23/04/19 | Westerschelde 29/01/17 |
|
Name |
BULK JULIANA |
|
Previous names |
2001 - 07/2005 KN Arcadia 07/2005 - 05/2012 Libre |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading Supermax |
|
IMO-number |
9235854 |
|
Call sign |
H9PF |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
29.885 t registered |
|
DWT |
Summer: 52.510 t |
|
NT |
18.011 t registered |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,02 m |
|
Moulded L x B x D |
182,00 x 32,26 x 17,00 m |
|
Registered L x B x D |
182,48 x 32,26 x 17,00 m |
|
Freeboard |
5.018 mm |
|
Depth |
17,00 m moulded |
|
Speed |
Service: 14,5 knots Max.: 16,5 knots |
|
Built |
2001 |
|
Keel laid |
05/06/2001 |
|
Launch date |
13/09/2001 |
|
Date of completion |
12/11/2001 |
|
Builder |
Kanasashi Co., Ltd. Toyohashi Works Toyohashi Japan |
|
Yard number |
3541 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC50LSI - 2 stroke single acting 6 cylinder 500 x 1.950 mm combustion engine 8.250 kW / 11.063 bhp at 124,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 540 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,00 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generators - 1.590 kVA |
|
Number of holds |
5 |
|
Hold capacity |
Bale: 65.616,59 m³ Grain: 68.258,87 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.930,32 m³ Fresh water: 327,62 m³ Ballast water: 14.980 m³ |
|
Lifting equipment |
1x Crane - SWL 3,0 y |
|
Cargo gear |
4x Cranes - SWL 30,5 t each |
|
Manager |
Seamar Management S.A. 154, Andrea Syngrou Avenue, Kallithea 176 71 Athens Greece |
|
Registered owner |
Bulk Juliana Ltd. Care of Phoenix Bulk Carriers (US) LLC 88, Valley Road Middletown RI 02842-5237 USA |
|
Previous names & owners |
2001 - 07/2005 KN Arcadia - Sun Advance Shipping SA - Republic of Panama 07/2005 - 05/2012 Libre - Royal Yuyo Shipping SA - Republic of Panama |
|
Renamed |
2019 Ellie M Marsgall Islands, Majuro - Call sign: V7A2706 Owner: Ellie M Shipping Co., Ltd. Manager: Campbell Shgipping Co., Ltd. |
|
Latest data adjustment |
10 June 2021 |
