Westerschelde 25 January 2017 |
|
Name |

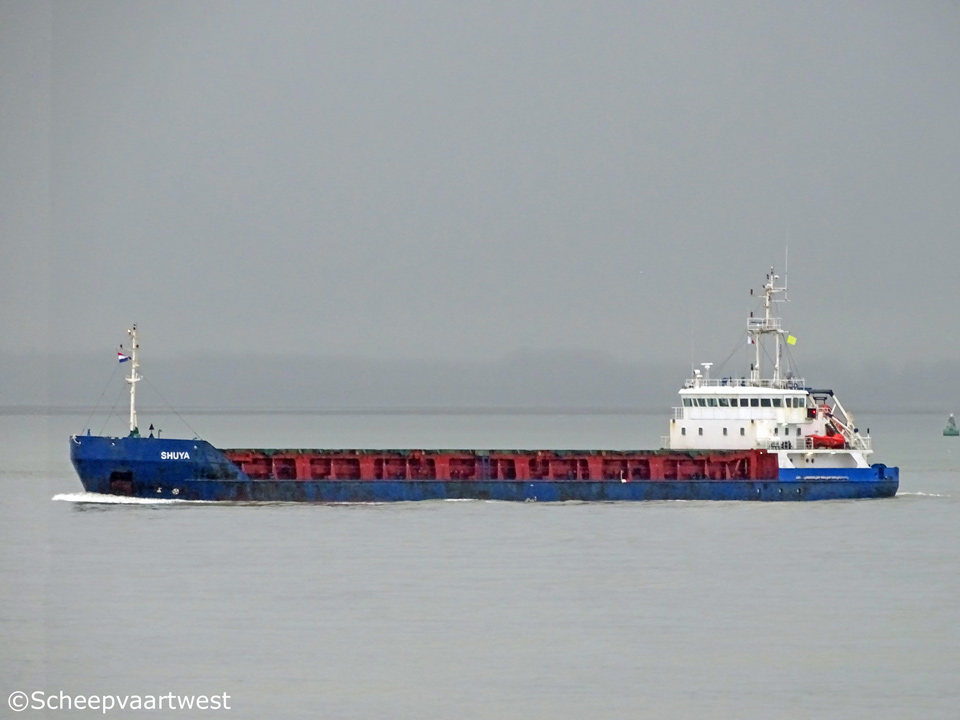

SHUYA |
|
Type |
General cargo ship - Container facility |
|
IMO-number |
9105841 |
|
Call sign |
V2QR4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
Russia, St. Petersburg - Call sign: UIWD |
|
GT |
2.889 t |
|
DWT |
Summer: 4.143 t |
|
NT |
1.471 t |
|
Displacement |
5.631 t |
|
Light ship |
1.488,5 t |
|
Number of 20ft containers |
150 |
|
Length |
96,00 m overall 93,00 m between perpendiculars |
|
Breadth |
13,20 m moulded |
|
Draught |
Summer: 5,12 m Winter: 5,01 m |
|
Air draft |
21,66 m |
|
Depth |
6,90 m moulded |
|
Speed |
11,0 knots |
|
Built |
1994 |
|
Keel laid |
17.12.1993 |
|
Launch date |
15.06.1994 |
|
Date of completion |
20.07.1994 |
|
Builder |
Schiffswerft und Maschinenfabrik Cassens GmbH |
|
Yard number |
30200 |
|
Hull material |
Steel |
|
Bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK Krupp 8M332C - 8 cylinder diesel engine 1.600 kW Built: 1993 |
|
Propellers |
1x Fixed pitched solid propeller - 4 blades |
|
Generators |
2x Generatorsets each 200 kW - 380 V, 50 HZ , 3 ph 1x Generatorset 95 kW - 380 V, 50 HZ , 3 ph |
|
Bow thruster |
1x 180 kW |
|
Number of holds |
1 63,70 x 10,40 x 7,63 m |
|
Cargo hold capacity |
5.250 m³ |
|
Number of hatches |
1 63,70 x 10,60 m |
|
Tank capacities |
Fuel oil: 204 m³ MDO: 2.080 m³ Lub oil: 10,8 m³ Bilge tank: 26,2 m³ Fresh water: 35,4 m³ |
|
Lifting equipment |
1x Provision crane - Swl 1,54 t |
|
Crew |
11 |
|
Previous managers |
Onegoship, Petrozavodsk - Russia |
|
Owner |
Shuya Marine Ltd. |
|
Latest data adjustment |
22 May 2017 |
