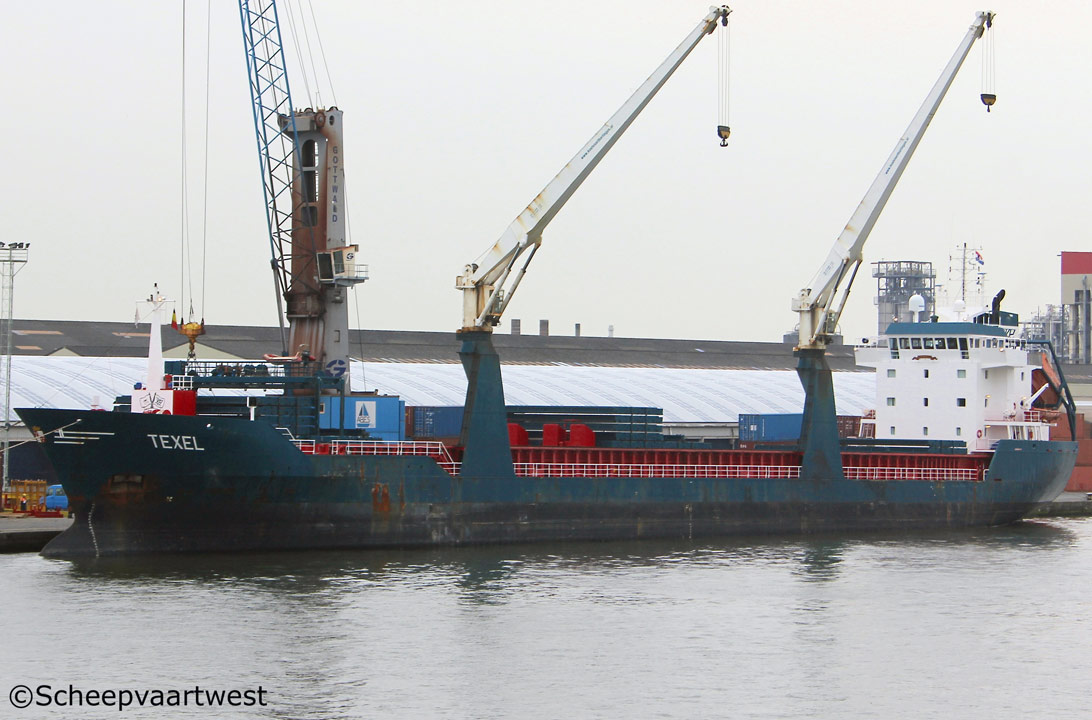

Texel 01

Antwerpen 03 June 2014



Name

TEXEL

Previous names

03.2002 - 05.2003 Dewi Parwati

05.2003 - 11.2003 Beluga Spirit

11.2003 - 03.2008 Dewi Parwati

03.2008 - 06.2011 Texel

06.2011 - 11.2013 Onego Marchant

11.2013 - 02.2017 Texel

Type

Multi-purpose general cargo ship - heavycargo

IMO-number

9238363

Call sign

PBFC

Flag

The Netherlands

Port of registry

Harlingen

Previous flags

03.2002 - 03.2008 Republic of Panama, Panama City - Call sign: H9VX

GT

6.301 t

DWT

8.930 t

NT

3.582 t

Number of 20ft containers

552

Length

132,20 m overall

123,84 m between perpendiculars

Breadth

15,87 m moulded

Draught

Summer: 7,16 m

Winter: 7,35 m

Air draft

25,00 m in ballast

Freeboard

2.160 mm

Depth

9,65 m moulded

Speed

14,5 knots

Built

2002

Launch date

2001

Date of completion

18.01.2002

Builder

Bodewes Scheepswerf Volharding Foxhol B.V.
Foxhol

The Netherlands

Yard number

348

Hull material

Steel

Watertight compartment

7

Continuous decks

1

Main engine

1x MaK 8M32C - 8 cylinder diesel engine 3.840 kW / 5.217 hp at 600 rpm

Built: 2001

Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x LIPS screw propeller controllable pitch - aft at 148 rpm

Boilers

1 CHR Aalborg 52,00 m² - 15,0 bar
1 CHO Aalborg 17,00 m² - 13,0 bar

Electric installations

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Shaft generator

1x 813 kVA - 650 kW

Generators

2x Main diesel generatorsets each 625 kVA - 500 kW - 775 hp

Emergency generator

1x Diesel generatorset 145 kVA - 116 kW - 171 hp

Bow thruster

1x 500 kW

Number of holds

2

Hold 1: 39,96 x 13,20 x 10,83 m

Hold 2: 52,54 x 13,20 x 10,83 m

Cargo hold capacity

12.805 m³ / 452.528 ft³

Hold ventilation

Electrical ventilation:

24 air changes per hour basis empty holds

Total 4 sets: -

2x sets hold 1: 25,3 kW

2x sets hold 2. 34,5 kW

Number of hatches

2

Hatch 1: 39,96 x 13,20 m

Hatch 2: 52,54 x 13,20 m

Hatch type

Pontoon hatches operated by gantry crane

Tween decks

The vessel is equipped with a partly flush tweendeck, consisting of total 16 loose tweendecks pontoons.

Tweend deck pontoons can be placed in 9 positions in hold number 2, and in 7 positions in hold number 1,

Pontoons stored in aft section in hold number 2.

12 Pontoons are store in hold number 1 on the most aft. tweendeck position with one section and remaining 11 sections are stored flat on top

Height from hold to underside tweendeck : 4,65 m Height from T/D to underside H/cover : 5,52 m

Tank capacities

HFO: 368 m³

MGO: 150 m³

Water ballast capacity: 3.469 m³

Fresh water: 300,88 m³

Cargo gear

1x Liebherr crane - SWL 32,0 t

1x Liebherr crane - SWL 40,0 t

Manager

Wagenborg Shipping B.V.
Marktstraat 10
9934 CK Delfzijl
The Netherlands

Previous managers

03.2002 - 03.2008 Arpeni Pratama Ocean Line, Jakarta - Indonesia

03.2008 - 02.2017 Wagenborg Shipping B.V., Delfzijl - The Netherlands

Registered owner

Scheepvaartonderneming Texel C.V.
Harlingen
The Netherlands

Previous names & owners

03.2002 - 05.2003 Dewi Parwati - Illicium Maritime S.A.

05.2003 - 11.2003 Beluga Spirit - Illicium Maritime S.A.

11.2003 - 03.2008 Dewi Parwati - Illicium Maritime S.A.

03.2008 - 06.2011 Texel - Scheepvaartonderneming Texel C.V. , Harlingen - The Netherlands

06.2011 - 11.2013 Onego Marchant - Scheepvaartonderneming Texel C.V. , Harlingen - The Netherlands

11.2013 - 02.2017 Texel - Scheepvaartonderneming Texel C.V. , Harlingen - The Netherlands

Renamed

02.2017 Onego Merchant, The Netherlands, Harlingen - Call sign: PBFC

Manager: Wagenborg Shipping B.V., Delfzijl - The Netherlands

Owner: Scheepvaartonderneming Texel C.V. , Harlingen - The Netherlands

Latest data adjustment

01 April 2017
