Westerschelde 05 January 2017 |
|
Name |

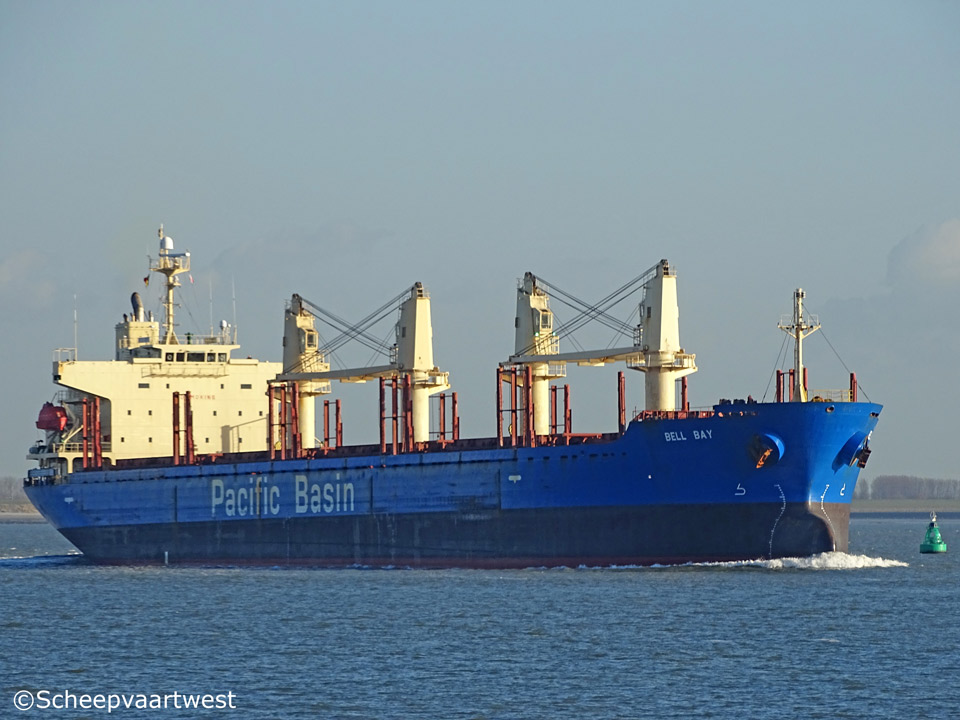

BELL BAY |
|
Previous names |
2006 - 07.2013 Pos Leader |
|
Type |
Handysize bulk/lumber carrier |
|
IMO-number |
9312664 |
|
Call sign |
VRBY9 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
19.796 t registered |
|
DWT |
Summer: 31.907 t |
|
NT |
10.800 t registered |
|
Length |
175,53 m overall |
|
Breadth |
29,40 m moulded |
|
Draught |
Summer: 9,57 m |
|
Moulded L x B x D |
167,00 x 29,40 x 13,70 m |
|
Registered L x B x D |
167,76 x 29,40 x 13,70 m |
|
Freeboard |
4.174 mm |
|
Depth |
13,70 m moulded |
|
Built |
2006 |
|
Keel laid |
28.12.2004 |
|
Launch date |
17.05.2006 |
|
Date of completion |
03.07.2006 |
|
Builder |
The Hakodate Dock Co., Ltd. |
|
Yard number |
807 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 520 x 1.600 mm diesel engine 6.840 kW at 129 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 1,50 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Generators - 1.080 kVA |
|
Cargo hold capacity |
Bale: 40.445 m³ Grain: 41.095 m³ |
|
Tank capacities |
Fuel oil: 1.583 m³ Fresh water: 226 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Manager |
Pacific Basin Shipping (HK) Limited |
|
Registered owner |
Bell Bay Shipping Limited |
|
Latest data adjustment |
22 March 2017 |
