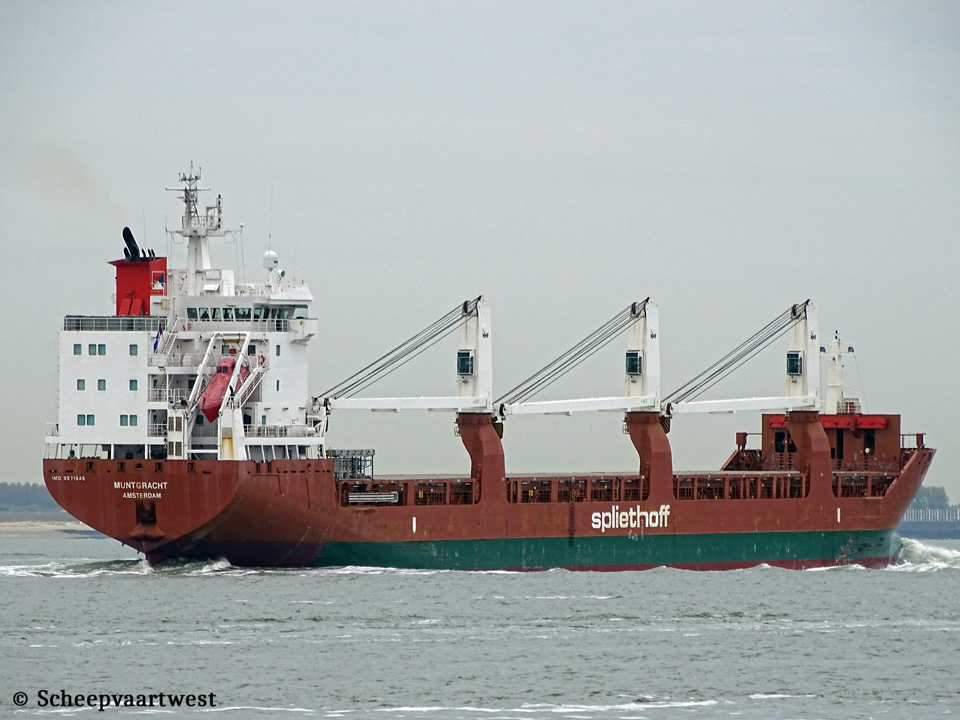

Muntgracht IMO 9571545 02

Westerschelde 27 April 2018

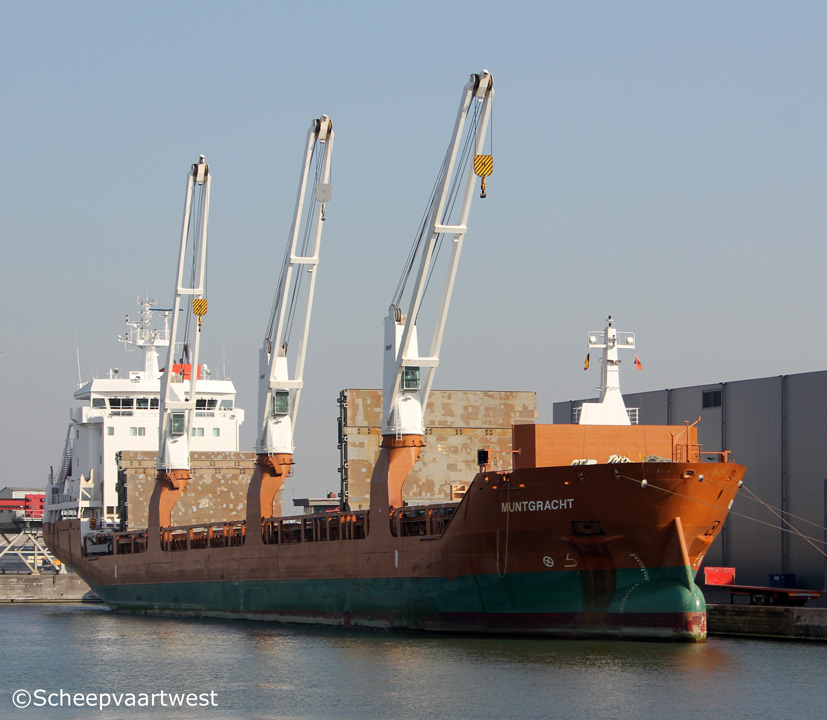

Muntgracht 01
Antwerpen 14/03/14


Name

MUNTGRACHT

Type

Multi-purpose dry cargo ship

IMO-number

9571545

Call sign

PCJH

Flag

The Netherlands

Port of registry

Amsterdam

GT

9.524 t

DWT

12.200 t excl. tweendeck

11.780 t incl. tweendeck

NT

4.187 t

Number of 20ft containers

In hold: 310

On deck: 381

Total: 691

Number of 40ft containers

In hold: 140 + 6 TEU

On deck: 185 + 30 TEU

Total: 325 + 36 TEU

Reefer capacity

325

Length

142,10 m overall

137,00 m between perpendiculars

Breadth

18,90 m moulded

Draught

Summer: 8,48 m

Height hold as SID

11,80 m

Height lower hold as TWD

3,36 or 6,40 or 8,36 m

Height tween deck as TWD

7,75 or 4,70 or 2,75 m

Depth

11,74 m moulded

Speed

14,5 knots

Built

2009

Keel laid

21/10/2010

Launch date

24/04/2011

Date of completion

25/02/2012

Builder

Zhoushan Shipyard

Zhoushan

China

Yard number

596

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

1x Wärtsilä 6L46 - 4 stroke single acting 6 cylinder 260 x 320 mm diesel engine 5.443 kW / 7.380 bhp

Propellers

1

Number of holds

2

Cargo hold capacity

Hold 1: 154.100ft³ / 4.365 m³

Hold 2: 398.000 ft³ / 11.275 m³

Total: 15.640 m³ - 552.100 ft³

Hold ventilation

Hold 1: Abt 27x p/h (basis empty holds)

Hold 2: Abt 21x p/h (basis empty holds)

Hatches

Weather deck:

N°1: 25,60 x 15,80 m

N°2: 64,00 x 18,80 m

Steel, end folding/rolling/lift away type

Tween deck:

N°1: 25,60 x 15,80 m

N°2: 57,60 x 15,80 m

Consisting: 14 steel pontoons:

10x 6,35 x 15,80 m

3x 5,24 x 15,80 m

1x 3,30 x 15,80 m

Floor space

Tanktop: 1.242 m²

Tween deck: 1.415 m²

Weather deck: 1.596 m²

Max. permitted loads

Weather deck hatch covers: 2,0 t/m²

Tweendeck hatch covers: 4,5 t/m²

Tanktop: 20,0 t/m²

Tank capacities

Ballast tank cap: 4.025 m³

Fuel oil: 1.195 m³

Marine gas oil: 195 m³

Cargo gear

3x Cranes situated on starboard side:

SWL 80 t / 18,00 m

SWL 65 t / 22,00 m

SWL 50 t / 28,00 m

Manager

Spliethoff's Bevrachtingskantoor B.V.

Radarweg 36

1042 AA Amsterdam

The Netherlands

Owner

Spliethoff Group

Registered owner

Rederij Muntgracht

Amsterdam

The Netherlands

Previous owners

2012 - 2020 C.V. Scheepvaartondeneming Muntgracht, Amsterdam - The Netherlands

Latest data adjustment

03 August 2023
