| Antwerpen 11 July 2014 |
|
Name |

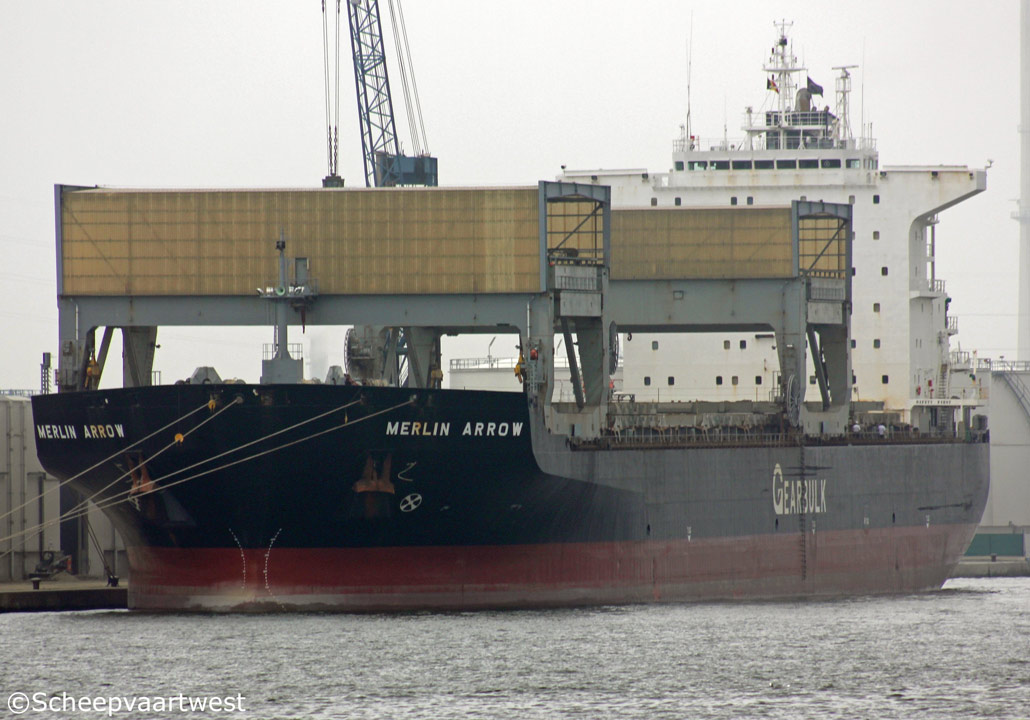

MERLIN ARROW |
|
Previous names |
1999 - 06.2004 Tolten |
|
Type |
General dry cargo ship - Timber carrier |
|
IMO-number |
9155303 |
|
Call sign |
LAMG7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
36.008 t |
|
DWT |
Summer: 51.459 t |
|
NT |
15.797 t |
|
Number of 20ft containers |
1.788 |
|
Length |
199,70 m overall 192,00 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
13,52 m |
|
Depth |
19,30 m |
|
Speed |
14,5 knots |
|
Built |
1999 |
|
Keel laid |
05.09.1997 |
|
Launch date |
18.06.1998 |
|
Date of completion |
11.03.1999 |
|
Builder |
Dalian New Shipbuilding Heavy Industry Dalian |
|
Yard number |
BC460-9 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 14 |
|
Main engine |
1x MAN-B&W/Dalian 6L60MC Mk4 - 2 stroke single acting 6 cylinder diesel engine 11.520 kW / 15.600 hp |
|
Propellers |
1x Propeller, mono-block |
|
Boilers |
Auxiliary boiler, composite AQ16 Builder: Aalborg |
|
Generators |
3x Ulstein/Bergen KRG-5 main diesel generatorsets |
|
Emergency generator |
1x MAN D 2866E diesel generatorset |
|
Number of holds |
10 Hold 1: 13,20 x 18,00 x 18,38 m Hold 2: 13,20 x 23,00 x 18,88 m Holds 3,4,5,6,7,8: 13,20 x 27,40 x 18,88 m Hold 9: 13,20 x 27,40 x 15,88 m Hold 10: 13,20 x 23,00 x 14,88 m |
|
Cargo hold capacity |
Grain: 61.337 m³ / 2.166.105 ft³ |
|
Hatchways |
10 |
|
Tank capacities |
Ballast: 21.867,4 m³ |
|
Cargo gear |
2x Liebherr gantry cranes - SWL 40,0 each Grabs: 2x 17 m³ |
|
Crew |
30 |
|
Manager |
Gearbulk Norway AS |
|
Operator |
Gearbulk |
|
Owner |
Gearbulk Shipping AS |
|
Latest data adjustment |
20 March 2017 |
