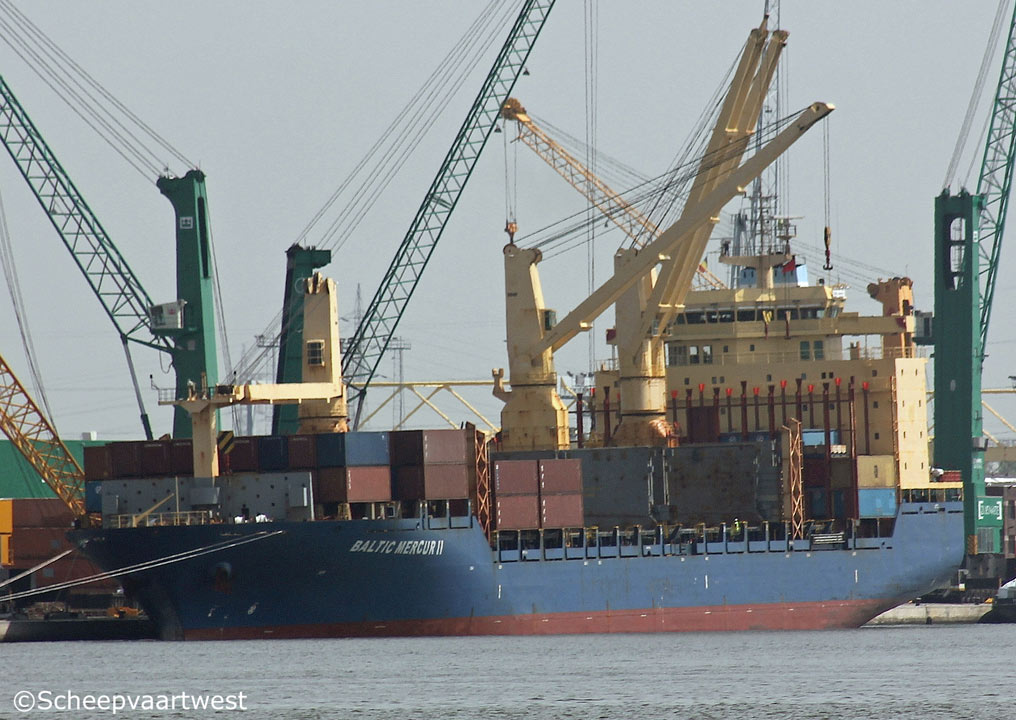

Baltic Mercur II 01

Antwerpen 22 May 2015



Name

BALTIC MERCUR II

Previous names

2004 - 07.2012 Cape Delfaro

07.2012 - 12.2014 San Pablo

Type

Multi-purpose dry cargo ship - Equipped for Carriage of Containers - Strengthened for Heavy Cargo

IMO-number

9235361

Call sign

9HA3796

Flag

Malta

Port of registry

Valletta

GT

23.132 t

DWT

Summer: 30.343 t

NT

9.375 t

Displacement

30.305 t

Number of 20ft containers

In hold: 786

On deck: 1.043

Total: 1.829

Number of 40ft containers

In hold: 56 + 368 TEU

On deck: 56 + 516 TEU

Total: 112 + 884 TEU

Container capacity 14t

1.50

Reefer plug

150 on deck

Length

192,91 m overall

182,00 m between perpendiculars

Breadth

27,96 m extreme

27,80 m moulded

Draught

11,20 m

Freeboard

4.315 mm

Depth

15,50 m

Speed

19,5 knots

Built

2004

Keel laid

03.06.2003

Launch date

10.09.2003

Date of completion

23.02.2004

Builder

Dalian Shipyard Co., Ltd.
China

Yard number

MC300-6

Hull material

Steel

Continuous decks

1

Main engine

1x MAN B&W 7S60MC-C - 7 cylinder diesel engine 15.785 kW

Built: 2004

Propellers

1x Fixed pitched solid propeller

4 blades - diameter 6.800 m

Generators

2x ZJMD MAN-B&W Type 6L23/30H Main diesel generatorset each 975 kW at 900 rpm

1x ZJMD MAN-B&W 7L23/30H Main diesel generatorset 1.135 kW at 900 rpm kW

Emergency generator

1x MAN D2866 TE diesel generatorset 200 kW at 1.800 rpm

Bow thruster

1x 900 kW

4 blades - Diameter: 1.880 mm

Number of holds

5

Hold No.1 (fore): 12,80 x 15,40 x 15,77 m

Hold No.1 (aft): 12,80 x 20,40 x 15,77 m

Hold No.2–4 (p): 25,60 x 10,30 x 15,77 m

Hold No.2–4 (s): 25,60 x 10,30 x 15,77 m

Hold No.5 (p): 12,80 x 10,30x 15,77 m

Hold No.5 (s): 12,80 x10,30 x 15,77 m

Hold No. 2,3,4: one level of tweendeck pontoons are fitted at following levels: Tank top to underneath twn decks – 8,35 m

Total clear heights in cargo holds no 2,3,4 (without tween decks): tank top to underneath hatch cover - 15,77 m

Cargo hold capacity

Grain/bale:

Hold 1: 5.599,75 m³ (Container hold)

Hold 2: 2x 4.100,66 m³

Hold 3: 2x 4.143,47 m³

Hold 4: 2x 4.143.47 m³

Total grain/bale capacity holds 2,3,4 stb/port 24.775 m³

Number of hatches

9

Hatch type

MacGregor Folding type

Max. Permitted loads

Tanktop:

Hold 2,3,4 – abt. 22,0 t/m²

Hold 1, 5 – abt. 14,9 t/m²

HatchCover: abt. 2,5 t/m²

Tween Deck: abt. 4,0 t/m²

Tank capacities

Fuel oil: 2.862,96 m³

Marine diesel oil: 139,15 m³

Lub oil: 139,53 m³

Fresh water: 286,77 m³

Water ballast: 12.553 m³

Anchor equipment

Length: 632,50 m

Diameter: 68 mm

Cargo gear

2x Single cranes: 2x 100 t lifting capacity basis 32,00 m outreach, combinable to 200 t basis less outreach incl. lifting beam/gear for holds no. 2+3 one twin crane:

2x 50 t lifting capacity basis 27,00 m outreach (45,00 m basis 30,00 m outreach), combinable with no. 2 single crane to 200 t incl. lifting beam/gear for holds no. 4

Accommodation

For a crew of 26 persons with heating, ventilation and air-conditioning

Registered owner

Atlantic Baltic Mercur II Limited

Latest data adjustment

16 January 2017
