Westerschelde 03 November 2018 |
 |
| Westerschelde 02/11/16 |
|
Name |

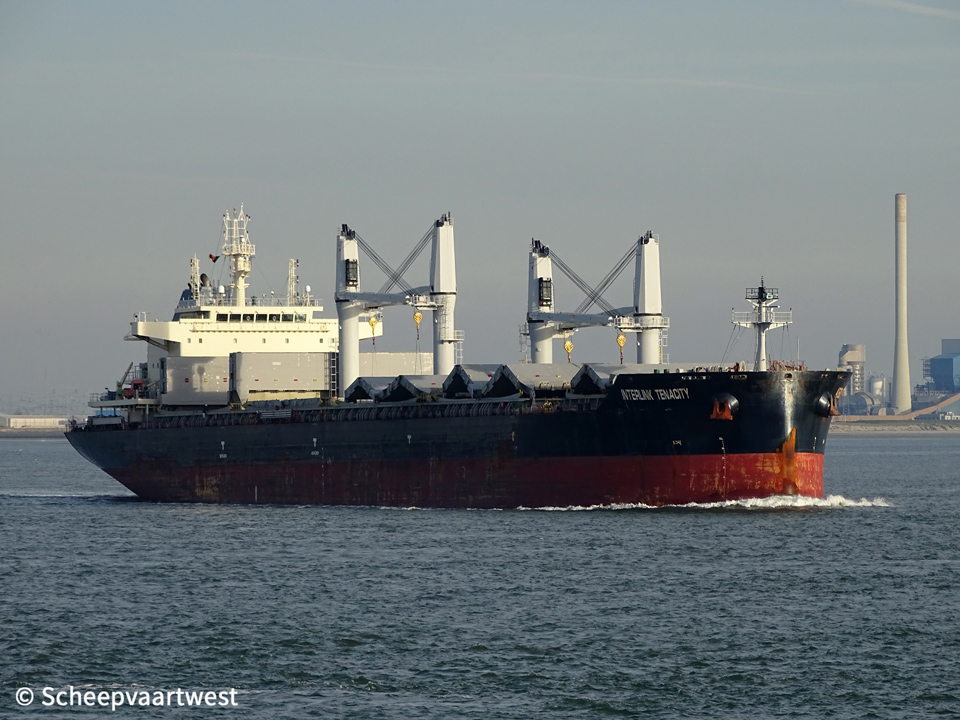

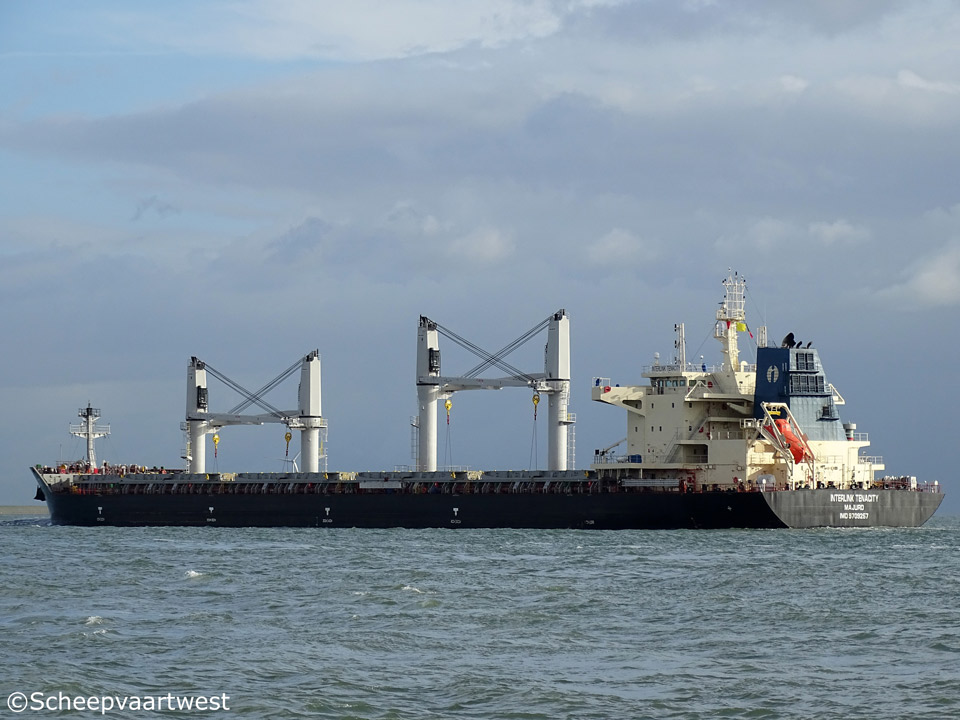

INTERLINK TENACITY |
|
Type |
Bulk carrier - open hatch, box shaped |
|
Main products |
Capable of carrying dry bulk and break bulk cargo, such as coal, bauxite, phosphates, iron ore, coke, grain including soya, soya bean meals, salt, sugar, fertilizers, steel products (sheet, rolls, coils, pipe), forest products in holds, bagged cargoes like cement and cargoes of BC code and dangerous class |
|
IMO-number |
9709257 |
|
Call sign |
V7GD3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
24.900 t |
|
DWT |
33.200 t |
|
NT |
12.800 t |
|
Length |
179,90 m overall 176,85 m between perpendiculars |
|
Breadth |
30,00 m moulded |
|
Draught |
9,50 m |
|
Air draft |
33,20 m full load |
|
Depth |
14,80 m moulded |
|
Speed |
Service: 13,7 knots |
|
Built |
2016 |
|
Builder |
Zhejiang Zengzhou Shipbuilding Co. |
|
Hull material |
Steel |
|
Hull type |
Double skin |
|
Main engine |
1x MAN 5S 50ME-B9.3 - 5 cylinder diesel engine 6.050 kW at 99,0 rpm |
|
Propellers |
1x Four blades, solid fixed pitch, aerofoil section keyless, nickel aluminium bronze casting |
|
Generators |
3x Main diesel generatorsets each 600 kW |
|
Emergency generator |
1x Diesel generatorset 120 kW |
|
Number of holds |
5 Hold 1: 26,80 x 12,14/25,26 m breadth tapered Hold 2: 27,20 x 25,26 m Hold 3: 27,20 x 25,26 m Hold 4: 27,20 x 25,26 Hold 5: 26,40 x 25,26/8,58 m breadth tapered |
|
Hold capacity |
Grain: 48.200 m³ Bale: 47.000 m³ |
|
Number of hatches |
5 Hatch 1: 16,00 m (l) x 19,86 m (w) Hatches 2-5: 19,20 m (l) x 25,26 m (w) |
|
Cargo hatch cover |
Steel folding type, weather tight double skin construction, hydraulically operated, grain and cement openings |
|
Max. permitted loads |
Upper deck hatch cover: 3,0 t/m² Upper deck: 3,0 t/m² Tank top: 25.0 t/m² |
|
Cargo hold ventilation |
Explosion proof exhaust fans at 6 air changes per hour |
|
Pumps |
Ballast pump: 2x Electric motor driven centrifugal, bronze casting and phosphor bronze impeller, 750 m³/h |
|
Tank capacities |
Ballast water: 16.600 m³ Heavy fuel oil: 1.480 m³ Diesel oil: 100 m³ LSMDO / MGO: 180 m³ Fresh water: 160 m³ Drinking water: 160 m³ |
|
Cargo gear |
4x Sets single electro-hydraulic wire luffing type jib cranes with provision for grab handling - SWL 30,5 t each Working radius: 4,50 to 24,00 m Un-laden grab weight 25.0 t |
|
Accommodation |
Captain class: 2 Senior Officer class: 2 Junior Officer class: 6 Rating class: 13 Owner, Pilot: 2 Total: 25 |
|
Supervision |
Schulte Marine Concept Ltd., Hong Kong |
|
Owner |
Interlink Maritime Corp. Hamilton Bermuda |
|
Latest data adjustment |
10 December 2016 |
