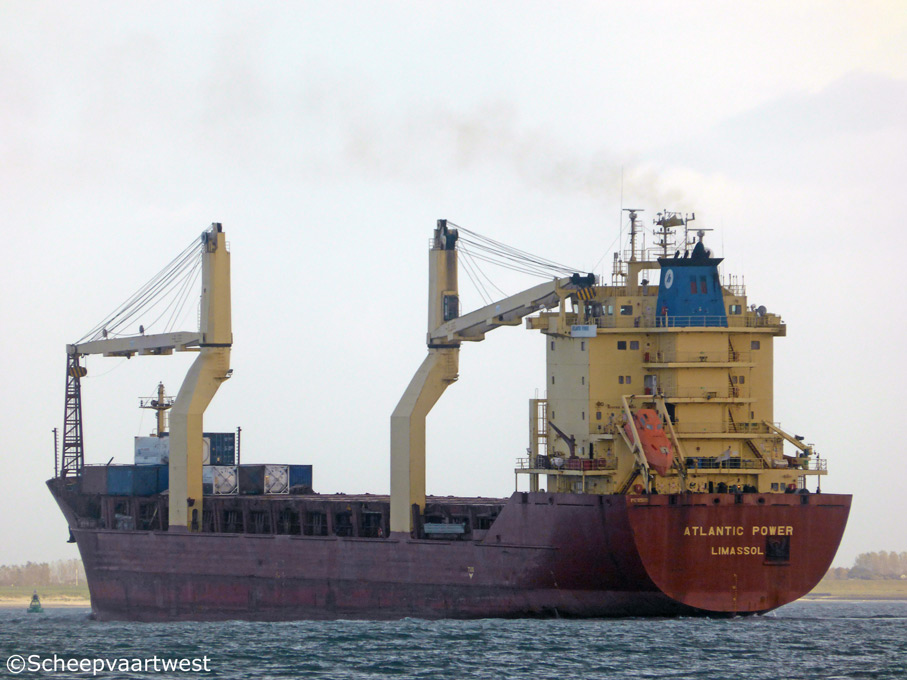

Westerschelde 16 October 2014 |
 |

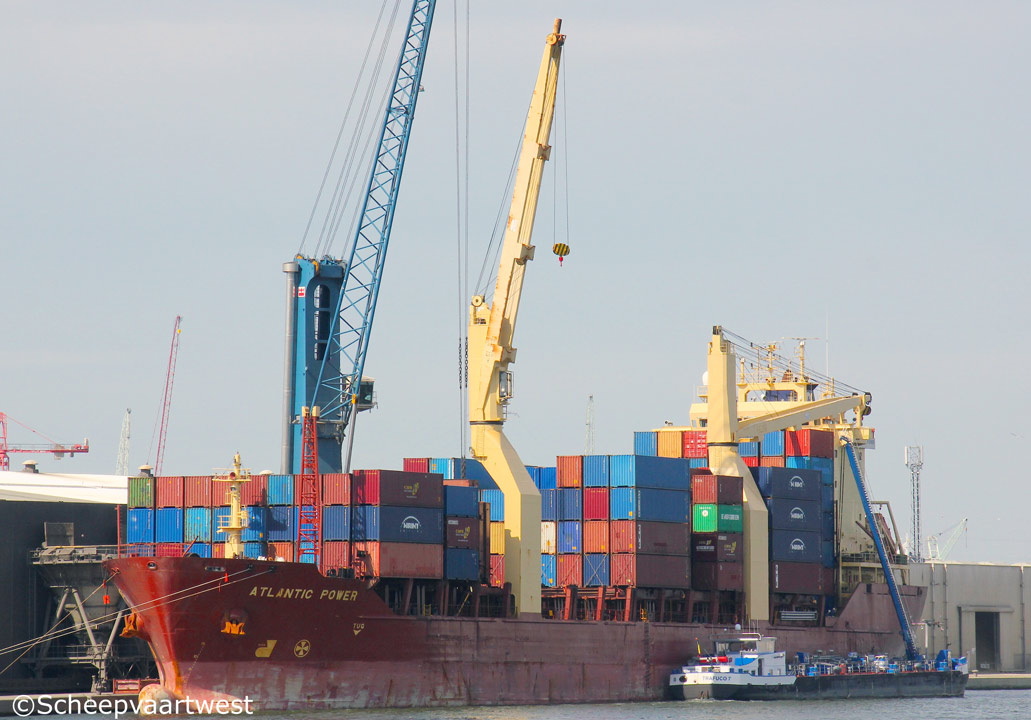

| Antwerpen 03/07/17 |
|
Name |
ATLANTIC POWER |
|
Previous names |
2001 Launch as: Seaboard Power 03.2001 - 03.2007 Atlantic Power 03.2007 - 11.2013 Seaboard Power 11.2013 Federal Power |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy Box-shaped Multi-purpose tweendeck / Container carrier |
|
IMO-number |
9190119 |
|
Call sign |
P3OY8 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
12.993 t |
|
DWT |
Summer: 17.530,6 t Winter: 16.9347 t |
|
NT |
5.894 t |
|
Lightweight |
6.808 t |
|
Number of 20ft containers |
On deck: 710 In hold: 408 Total: 1.118 |
|
Number of 40ft containers |
On deck: 311 + 37 TEU In hold: 193 + 22 TEU Total: 504 + 59 TEU |
|
Reefer capacity |
30 |
|
Length |
143,11 m overall 133,00 m between perpendiculars |
|
Breadth |
23,13 m extreme |
|
Draught |
Max.: 9,71 m |
|
Depth |
13,30 m to main deck |
|
Speed |
15,5 knots |
|
Built |
2000 |
|
Keel laid |
03.05.1999 |
|
Launch date |
21.10.1999 |
|
Date of completion |
13.05.2000 |
|
Builder |
Jingjiang Shipyard |
|
Yard number |
JS98-013 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN B&W-Hudong Heavy Machinery 7L42 MC - 2 stroke 7 cylinder diesel engine 6.965 kw at 176 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x MAN Holeby 5L16/24 main diesel engines each 500 kW at 1.200 rpm coupled with generators 475 kW - 450 Volt 60 ZH |
|
Emergency generator |
1x Volvo Penta Tamd 71B diesel generatorset |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
3 No. 1: 22,60 x 13,25 x 11,8 m |
|
Cargo hold capacity |
Grain&Bale Hold 1: 126,232 ft³ Hold 2: 384,025 ft³ Hold 3: 255,999 ft1 Total: 766,256 ft³ / 21.696 m³ |
|
Hold ventilation |
Hold 1: 7 air changes per hour, Holds 2 & 3: 6 air changes per hour |
|
Timber stanchions |
6,00 m high |
|
Number of hatches |
3 No. 1: 20,50 m x 13,21 m |
|
Hatch cover type |
MacGREGOR hydraulic folding |
|
Max. permitted loads |
Tanktop: 20,0 t/m² |
|
Tank capacities |
Ballast: 5.809 m³ at 100 % HFO: 1.26 m³ at 98% MDO: 145 m³ at 98% |
|
Anchor equipment |
Length: 544,50 m Diameter: 60 mm |
|
Cargo gear |
2x Haegglunds/Sweden hydraulic fast cranes - SWL max. 45 t each |
|
Crew size |
22 |
|
Operator |
Athena Marine |
|
Renamed |
05.2016 Onega Power - Cyprus, Limassol - call sign: P3QY8 |
|
Latest data adjustment |
01 August 2016 |
