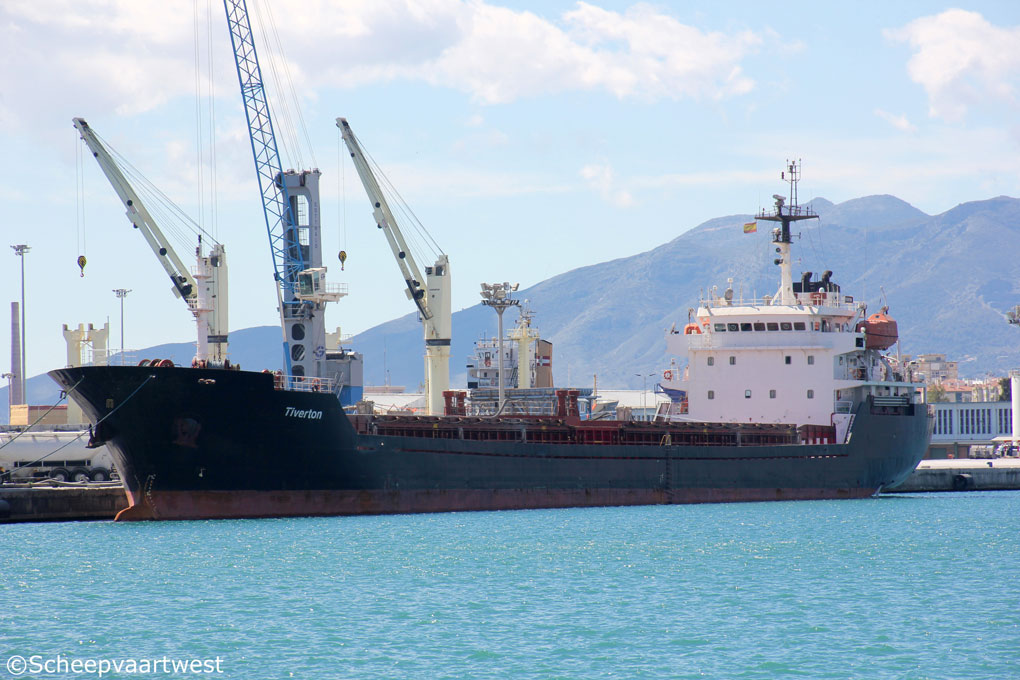

Tiverton 01

Malaga, Spain 16 March 2016

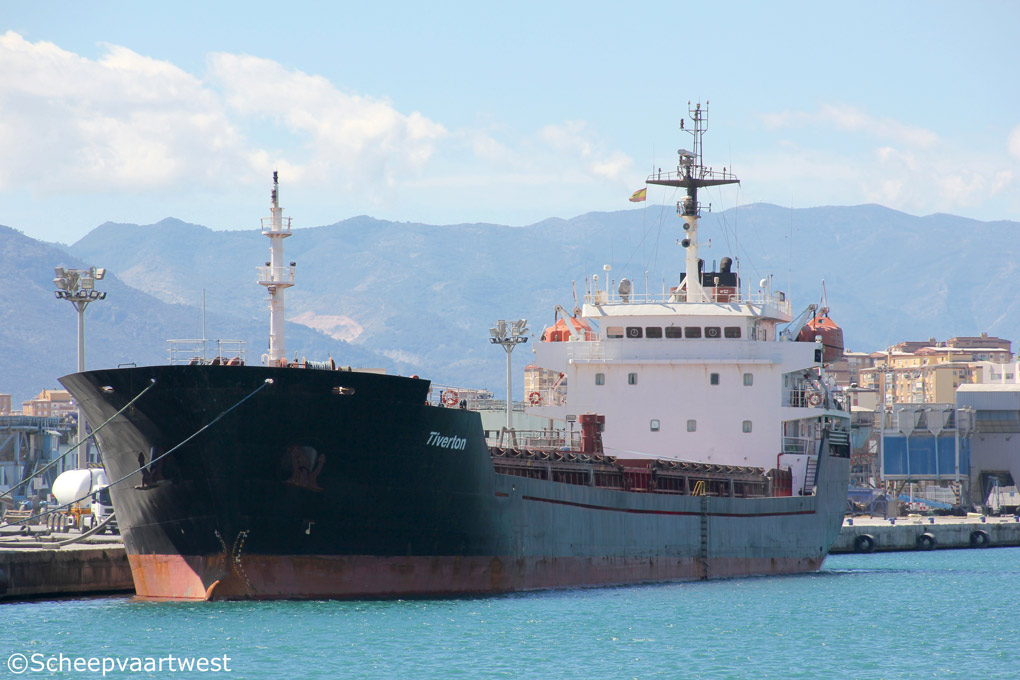

Tiverton 02
Malaga, Spain 16/03/16



Name

TIVERTON

Previous names

2006 Launch as: Sider Sky

2006 - 06.2007 Sky

02.2007 - 11.2007 Geestedijk

09.2007 - 11.2011 Global Hera

Type

Bulk carrier

IMO-number

9349992

Call sign

V7XK6

Flag

Marshall Island

Port of registry

Majuro

Previous flags

09.2006 - 11.2006 Italy, Naples

11.2006 - 02.2007 The Netherlands, Groningen - Call sign: PHHS

02.2007 - 10.2007 Antigua & Barbuda, St. John's - Call sign: V2PK5

10.2007 - 11.2011 Antigua & Barbuda, St. John's - Call sign: V2CZ8

GT

5.164 t

DWT

Summer: 7.448 t

NT

2.913 t

Length

119,95 m overall

111,97 m between perpendiculars

Breadth

16,80 m

Draught

6,28 m

Freeboard

1.957 mm

Depth

8,20 m

Speed

11,5 knots

Built

2006

Date of completion

26.09.2006

Builder

Ningbo Xinle Shipbuilding Group Co.,Ltd.
Ningbo
China

Yard number

XL2005-3

Hull material

Steel

Hull type

Single hull

Watertight compartments

6

Continuous decks

1

Main engine

1x Daihatsu 8DKM-28 - 4 stroke single acting 8 cylinder 280 x 390 mm diesel engine 2.500 kW / 3.399 bhp at 750 rpm

Builder: Shaanxi Diesel Engine Heavy Industry Co. Ltd., Xingping - China

Propellers

1x Screw propeller solid - aft at 187 rpm

Boilers

1x CHO Changzhou 7,10 m²
1x CHR Changzhou 25,00 m²

Electric installations

Power voltage: 400 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Cummins NTA main diesel generatorsets each 250 kVA - 200 kW - 385 hp

Emergency generator

1x Diesel generatorset 80 kVA - 64 kW - 105 hp

Number of holds

2

Hold 1: 41,90 x 12,60 x 6,10 m

Hold 2: 42,50 x 12,60 x 6,10 m

Total capacity of holds

Grain: 9.829 m³

Cargo hatchways

2

Hatch 1: 31,28 x 12,60 m

Hatch 2: 31,28 x 12,60 m

Hatch cover type

MacGregor endless chain - hydraulic, 10 pontoons each

Max. permitted loads

Tanktop: 15,0 t/m²

On hatch coves: 1,30 t/m²

On deck: 1,30 t/m²

Tank capacities

Fuel oil: 235,68 m³

Diesel oil: 77 m³

Ballast water: 2.967 m³

Fresh water: 234 m³

Manager

Briese Schiffahrts G.m.b.H.
Leer
Germany

Previous managers

09.2006 - 11.2006 Due Golfi Navigazione, Naples - Italy

11.2006 - 10.2007 Navigia Shipping B.V., Groningen - The Netherlands

10.2007 - 11.2011 Global Hanseatic Shipping G.m.b.H. & Co. KG, Hamburg - Germany

Owner

Ems Leda Shipping G.m.b.H. & Co. K.G
Leer
Germany

Registered owner

Tiverton Shipping Company Ltd.

Marshall Islands

Previous names & owners

09.2006 - 11.2006 Sider Sky - Due Golfi Navigazione, Naples - Italy

11.2006 - 02.2007 Sky - Beheermaatschappij m.s. Sky, Groningen - The Netherlands

02.2007 - 10.2007 Geestedijk - Geestedijk Navigation Ltd.

10.2007 - 11.2011 Global Hera - Global Hera G.m.b.H. & Co. K.G., Hamburg - Germany

Latest data adjustment

22 April 2016
