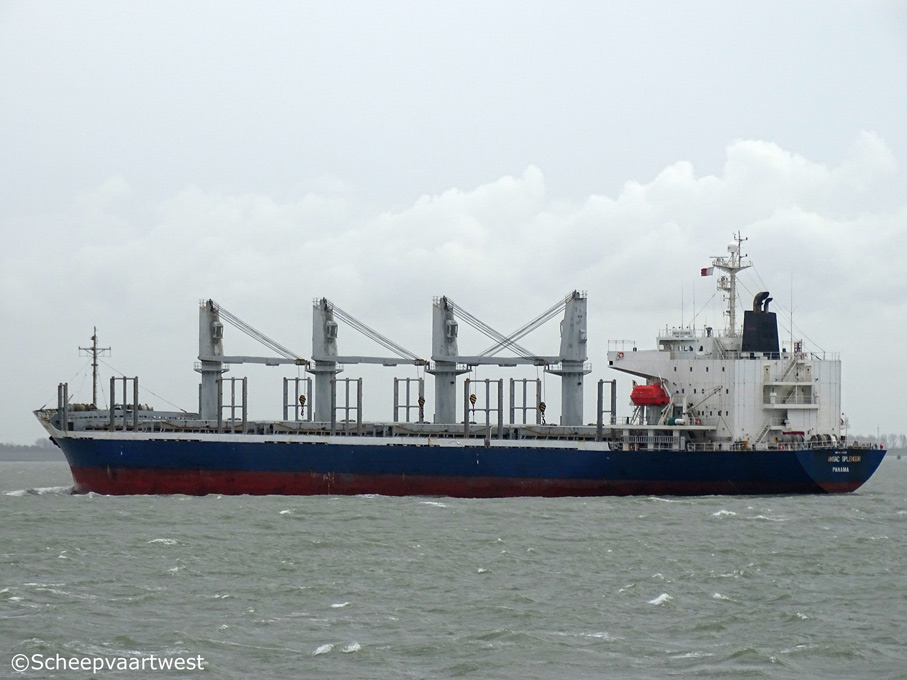

Ansac Splendor 01

Westerschelde 20 February 2016



Name

ANSAC SPLENDOR

Previous names

2004 - 05.2010 Canpotex Redemption II

Type

Bulk/Lumber carrier

IMO-number

9288239

Call sign

3EAE9

Flag

Republic of Panama

Port of registry

Panama City

GT

19.885 t registered

DWT

32.739 t

NT

11.140 t registered

Length

177,00 m overall

Breadth

28,40 m moulded

Draught

Summer: 10,02 m

Moulded L xB x D

168,50 x 28,40 x 14,25 m

Registered L x B x D

169,45 x 28,40 x 14,25 m

Freeboard

Summer: 4.282

Depth

14,25 m moulded

Speed

16,3 knots

Built

2004

Keel laid

28.06.2002

Launch date

13.12.2004

Date of completion

24.03.2005

Builder

Kanda Shipbuilding Co., Ltd.

Yard number

448

Hull material

Steel

Main engine

1x 2 stroke single acting 6 cylinder 520 x 1.600 diesel engine 6.620 kW at 125,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 440 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,8 bar

Evaporation: 1.,99 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

3x Generators 1.200 kVA

Cargo hold capacity

Bale: 40.896 m³

Grain: 42.857 m³

Tank capacities

Fuel oil: 1.566 m³

Fresh water: 221 m³

Water ballast: 11.787 m³

Manager

Sincere Industrial Corporation

Operator

ANSAC - American Natural Soda Ash Corporation

Registered owner

Se Harmony Corporation

Latest data adjustment

07 April 2016
