Westerschelde 03 June 2019 |
 |
| Westerschelde 28-02/16 |
|
Name |

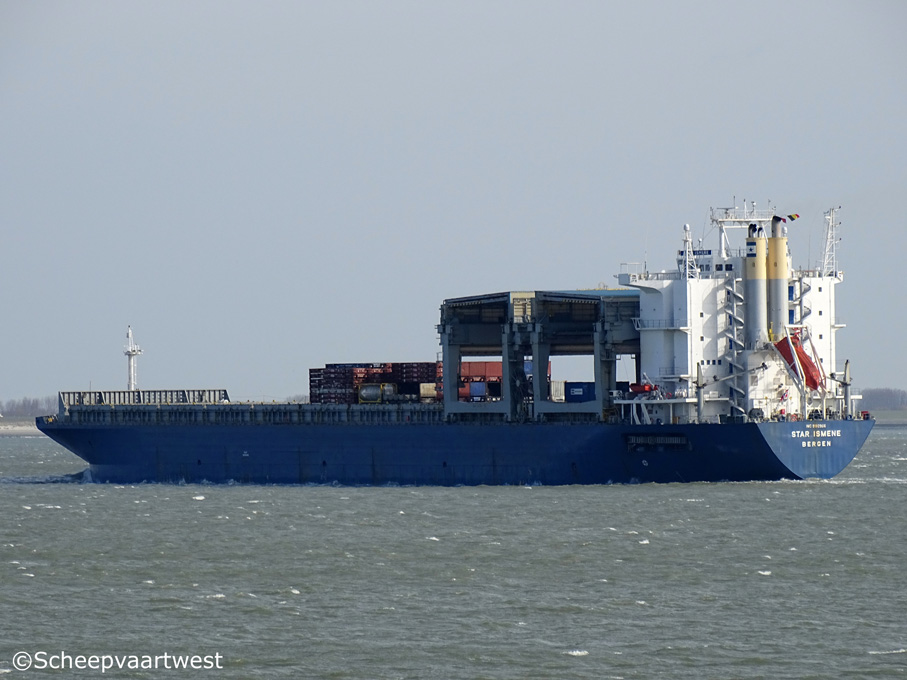

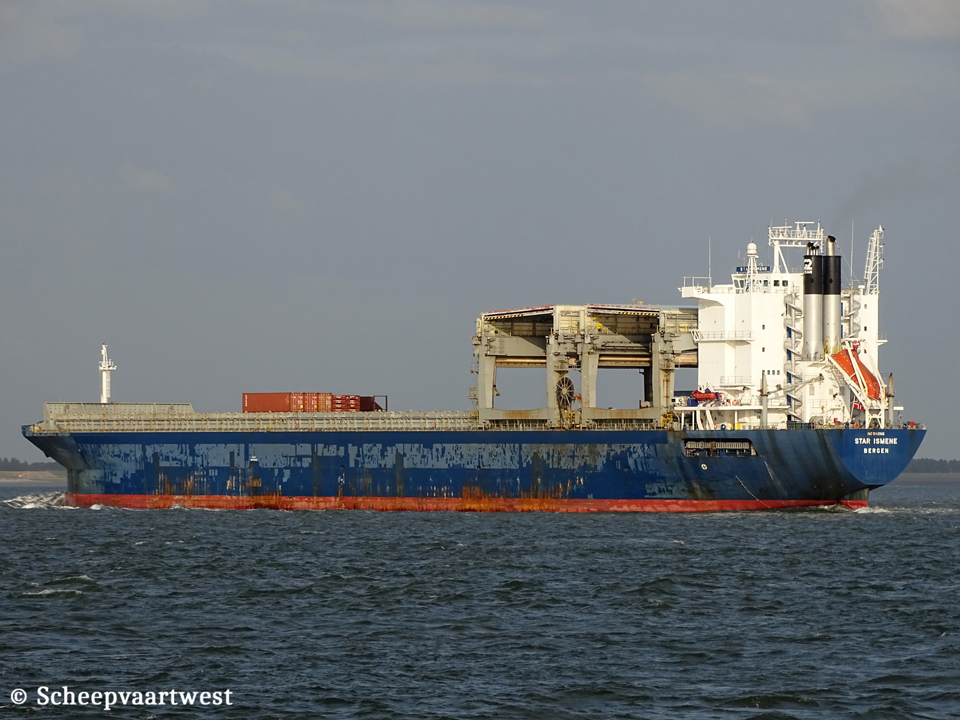

STAR ISMENE |
|
Type |
General dry cargo ship - Heavycargo - Equipped for carriage of containers Open hatch carrier |
|
Main products |
Carrying baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes |
|
IMO-number |
9182966 |
|
Previous classification |
DNV GL |
|
Call sign |
LANT5 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
32.628 t |
|
DWT |
Summer: 46.428 t |
|
NT |
13.538 t |
|
Number of 20ft containers |
On hatch covers: 720 In hold: 1.174 Total: 1.914 |
|
Length |
198,00 m overall 189,02 m between perpendiculars |
|
Breadth |
31,11 m extreme 31,00 m moulded |
|
Draught |
Summer: 12,32 m Winter: 12.06 m |
|
Air draft |
Max.: 47,00 m |
|
Freeboard |
3.316 mm |
|
Depth |
19,00 m to main deck |
|
Speed |
16,4 knots |
|
Built |
2000 |
|
Keel laid |
12/05/1999 |
|
Launch date |
02/09/1999 |
|
Date of completion |
12/01/2000 |
|
Builder |
Mitsui Engineering & Shipbuilding Co. Tamano Japan |
|
Yard number |
1488 |
|
Hull material |
Mild steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/B&W 6S60MC(MARK-VI) - 2 stroke single acting 6 cylinder combustion engine 10.520 kW / 14.293 hp at 96,0 rpm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary Boiler, Osaka Boiler AQ 12 Steam production: 1.200 kg/h Working pressure: 6 kg/cm² 1x Exhaust gas economizer, Osaka Boiler EG-183242-H Steam production: 1.100 kg/h Working pressure: 6 kg/cm² Exhaust gas amount: 79.200 kg/h |
|
Generators |
2x Rolls Royce KRG-8 - 4 stroke 8 cylinder single acting 1.395 kW at 720 rpm coupled with generators output each 1.300 kW 1x Rolls Royce KRG-5 - 4 stroke 5 cylinder single acting 775 kW kW coupled with generators output 720 kW |
|
Emergency generator |
1x BF 6 L 913 diesel generatorset 100 kVA - 80 kW - 1.039 hp Builder: MES Machinery & Service |
|
Compressed air receivers |
2x Main air compressors Sperre HV2/200 - 136 m³/h - 30,0 bar 1x Working air compressor Sperre HV2/300 - 437 m³/h - 8,0 bar 1x Diesel generator cold start air compressor Sanwa Iron Works S10A - 41,5 m³/h - 30,0 bar |
|
Number of holds |
11x Box-shaped cargo holds |
|
Cargo hold capacity |
Hold 1: 4.048,8 m³ / 142.983 ft³ Hold 2: 5.510,5 m³ / 194.603 ft³ Hold 3: 6.206,4 m³ / 219.179 ft³ Hold 4: 6.206,4 m³ / 219.179 ft³ Hold 5: 6.206,3 m³ / 219.175 ft³ Hold 6: 6.206,4 m³ / 219.179 ft³ Hold 7: 6.206,3 m³ / 219.175 ft³ Hold 8: 6.206,3 m³ / 219.175 ft³ Hold 9: 6.206,4 m³ / 219.179 ft³ Hold 10: 5.722,2 m³ / 202.079 ft³ Hold 11: 2.764,5 m³ / 97.628 ft³ Total: 61.490,5 m³ / 2.171.534 ft³ |
|
Number of hatches |
11 |
|
Max. permitted loads |
Tanktop: 28,0 t/m² hatch cover: 3,0 t/m² |
|
Cargo gear |
2x Mitsui Paceco gantry cranes on deck - SWL 68 t each |
|
Tank capacities |
Fuel: 2.260,5 m³ |
|
Accommodation |
Aft for a total of 29 persons |
|
Manager |
Grieg Star AS C Sundtsgate 17/19 5004 Bergen Norway |
|
Previous managers |
2000 - 2000 Grieg Star AS 2000 - 2004 A/S Billabong |
|
Owner |
Grieg International II AS Bryggegata 6 0250 Oslo Norway |
|
Previous owners |
2000 - 2000 Grieg Shipping II AS 2000 - 2001 Grieg Poseidon AS |
|
Latest data adjustment |
10 May 2021 |
