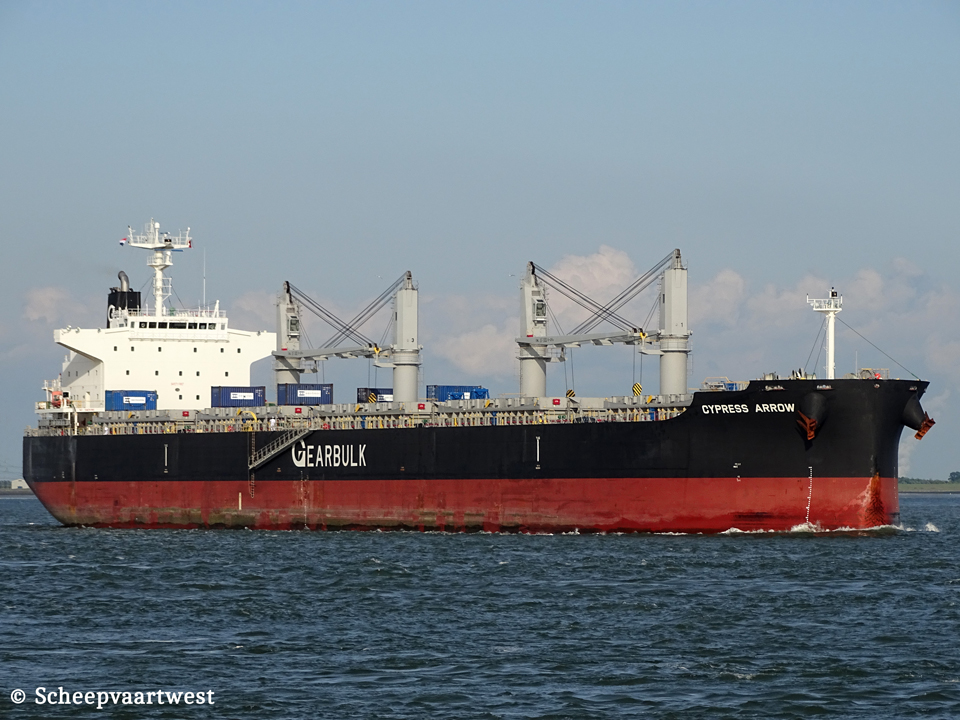

Westerschelde 13 June 2018 |
 |
 |
|

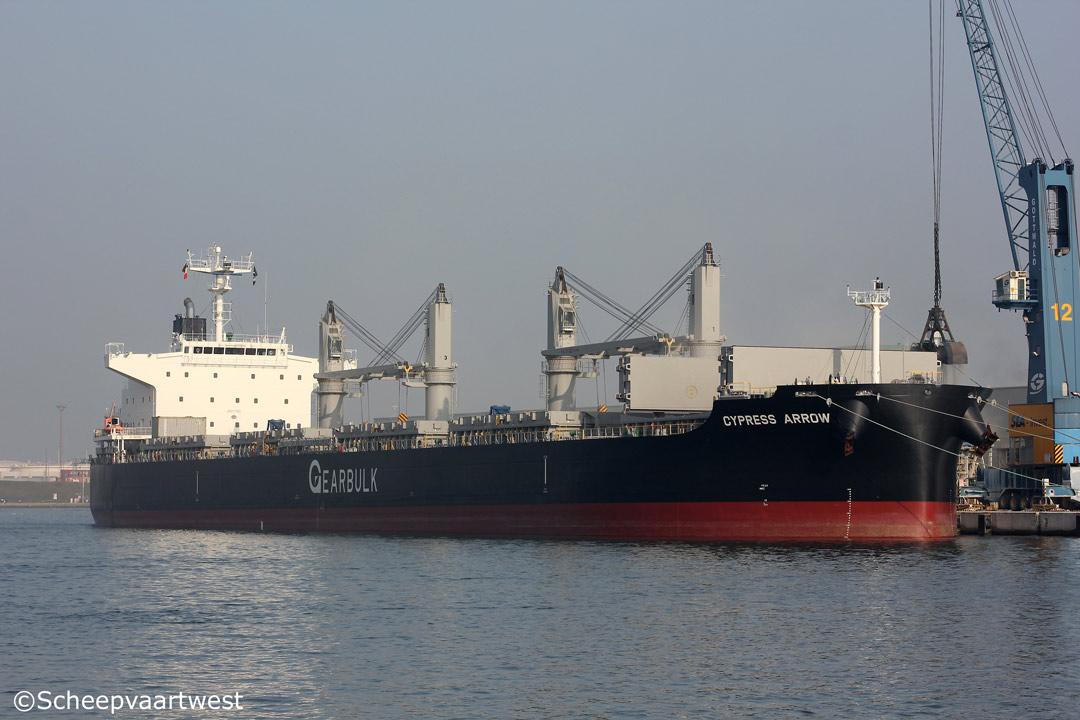

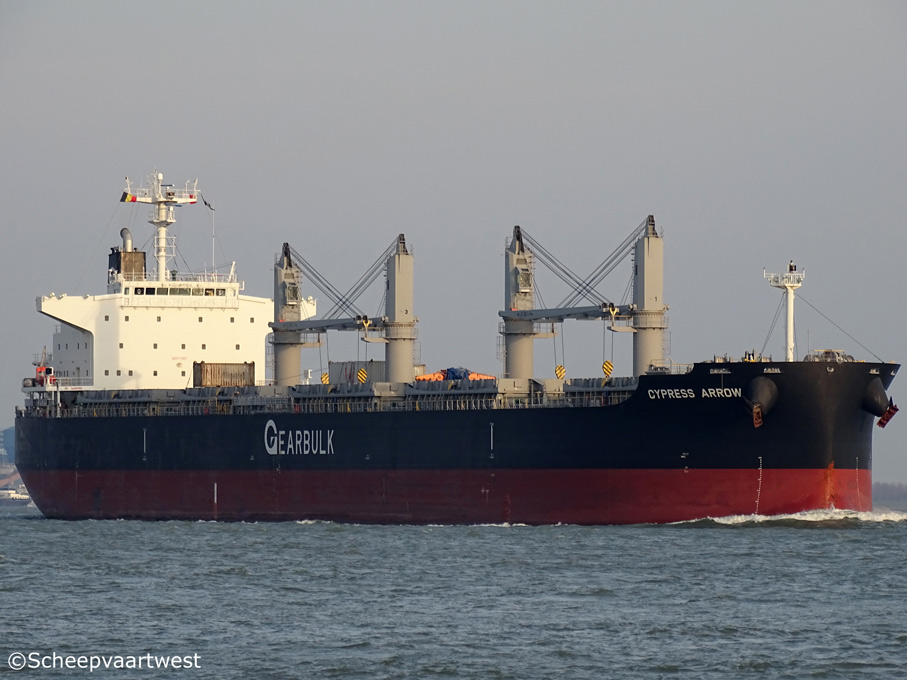

| Westerschelde 27/02/16 | Antwerpen 09/04/15 | |
|
Name |
CYPRESS ARROW |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading Ultramax |
|
IMO-number |
9720067 |
|
Call sign |
HOVV |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
35.503 |
|
DWT |
61.022 t |
|
NT |
18.315 |
|
Length |
199,90 m overall |
|
Breadth |
32,24 m moulded |
|
Draught |
Summer: 13,03 m |
|
Moulded L x B x D |
197,00 x 32,24 x 18,60 m |
|
Registered L x B x D |
197,00 x 32,24 x 18,60 m |
|
Freeboard |
Summer: 6.635 mm |
|
Depth |
18,60 m moulded |
|
Speed |
Max.: 16,3 knots Service: 14,7 knots |
|
Built |
2014 |
|
Keel laid |
29/04/2014 |
|
Launch date |
10/10/2014 |
|
Date of completion |
16/01/2015 |
|
Builder |
Nantong COSCO KHI Ship Engineering Co., Ltd. China |
|
Yard number |
NE162 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S50ME-B9 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 8.130 kW / 11.054 hp at 108,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 490 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 2,91 t/h Manufacturer: Alfa Laval Aalborg Ltd. |
|
Generators |
4x Generatorsets total 2.860 kW |
|
Number of holds |
5 Hold 1: 28,25 x 19,80 x 17,27 m Hold 2: 29,72 x 25,80 x 17,27 m Hold 3: 29,70 x 25,80 x 17,27 m Hold 4: 29,75 x 25,80 x 17,27 m Hold 5: 29,87 x 25,80 x 17,27 m |
|
Cargo total hold capacity |
Grain: 60.106 m³ / 2.122.623 ft³ Bale: 59.811 m³ / 2.112.205 ft³ |
|
Tank capacities |
Fuel oil: 2.129 m³ Fresh water: 313 m³ Water ballast: 24.575 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Grabs: 4x 12 m³ each |
|
Commercial manager |
MMSL Pte Ltd. 32-02, Frasers Tower, 182, Cecil Street Singapore 069547 Republic of Singapore |
|
ISM manager |
Marufleet Management Pte. Ltd. 460, Alexandra Road, Singapore 119963 Republic of Singapore |
|
Operator |
Gearbulk Norway AS Ytrebygdsvegen 215 5258 Blomsterdalen Norway |
|
Registered owner |
Taiei Naviera S.A. MMSL Pte Ltd. 32-02, Frasers Tower, 182, Cecil Street Singapore 069547 Republic of Singapore |
|
Latest data adjustment |
04 May 2026 |
