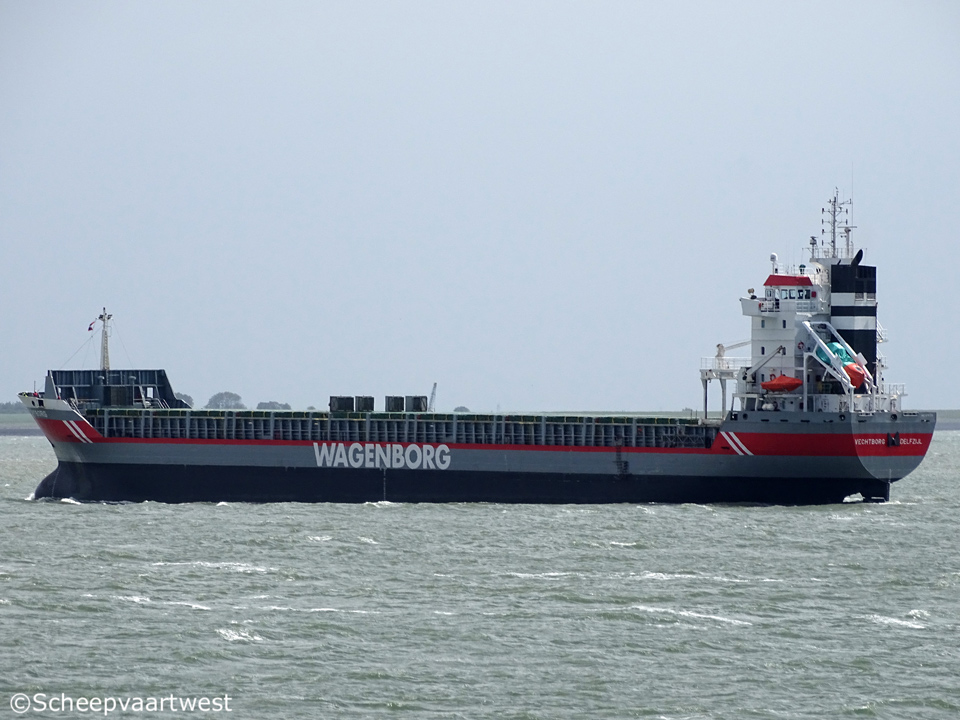

Westerschelde 27 July 2017 |
 |
 |
 |
 |
|||

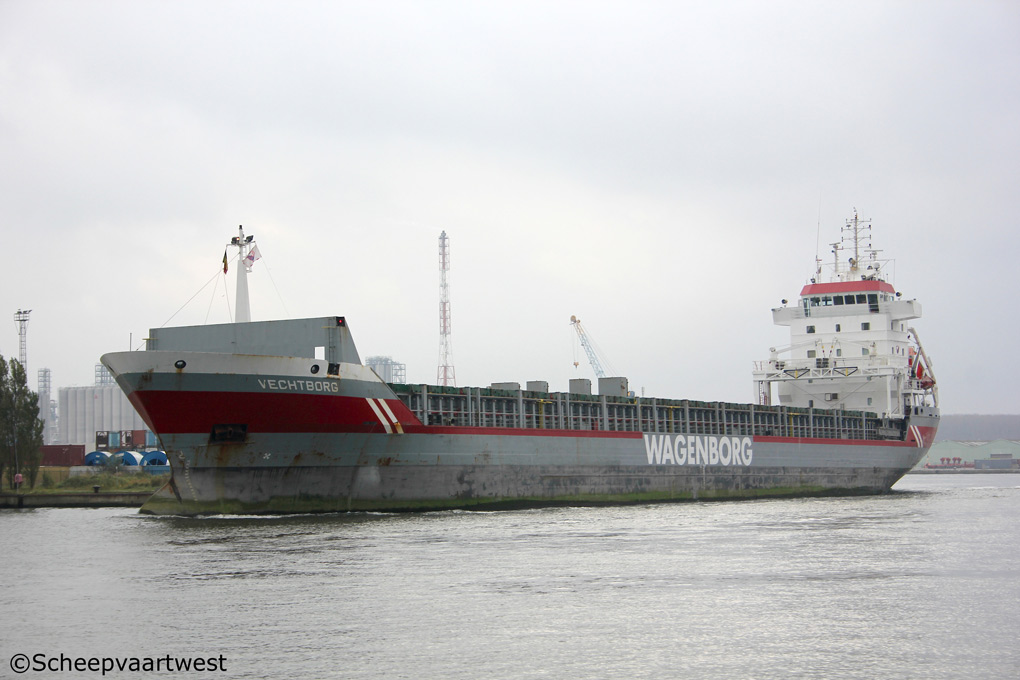

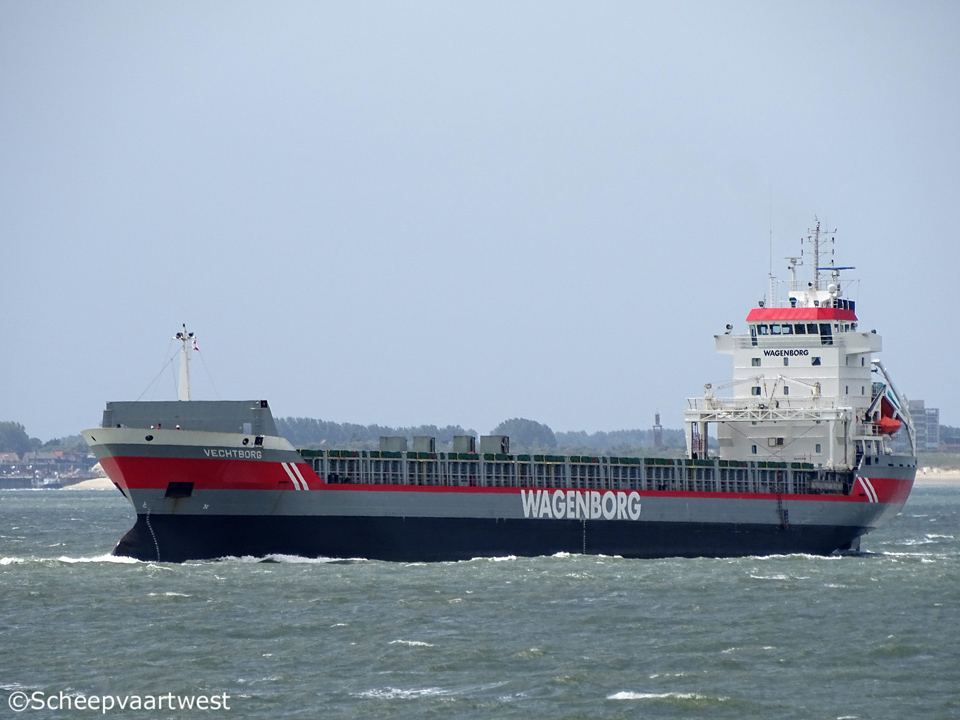

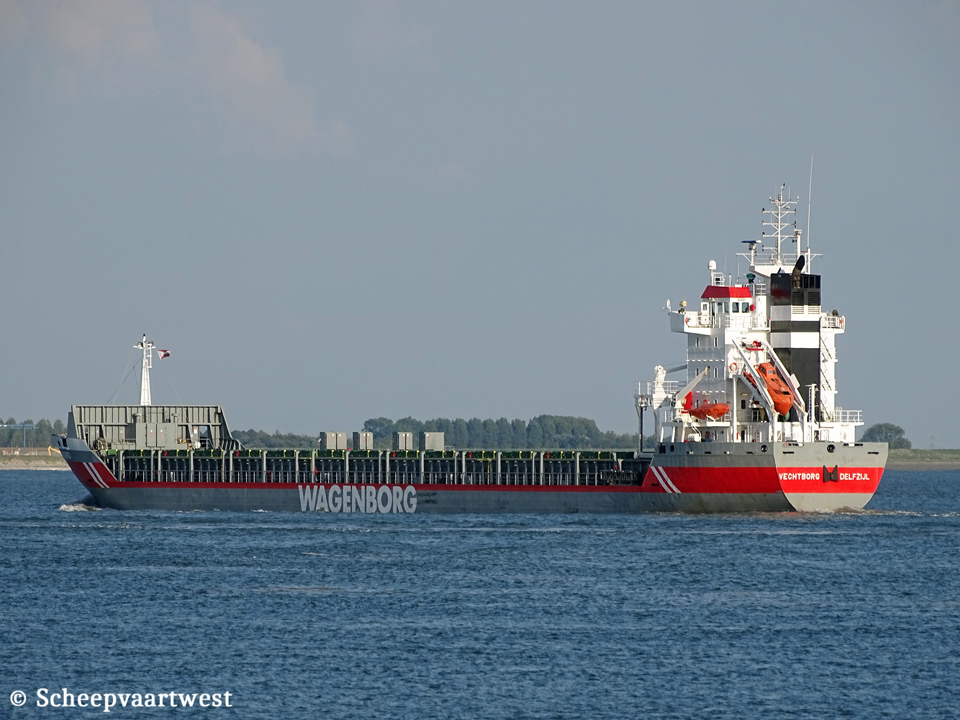

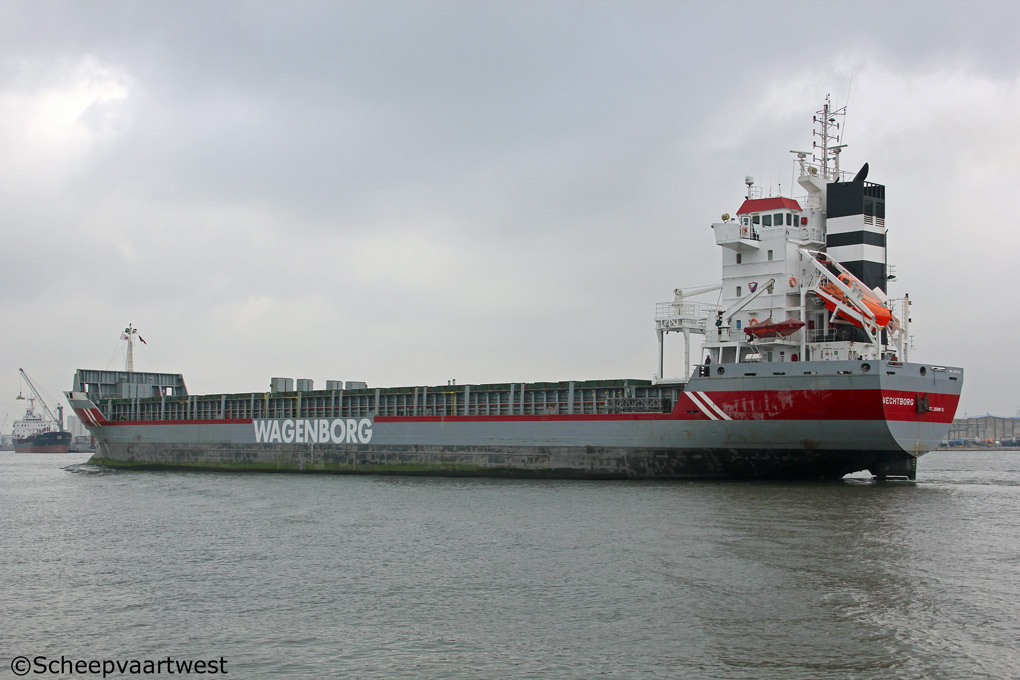

| Westerschelde 27/07/17 | Antwerpen 06/11/14 | Antwerpen 06/11/14 | Westerschelde 31/08/18 |
|
Name |
VECHTBORG |
|
Type |
Multi-purpose dry cargo carrier - Heavycargo - Container ship |
|
IMO-number |
9160334 |
|
Call sign |
PCZF |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
1998 - 2004 The Netherlands, Delfzijl - Call sing: PGBJ 2004 - 2009 Netherlands Antilles, Willemstad - Call sign: PJTG 2009 - 2015 Antigua & Barbuda, St. Johns - Call sign: V2EM4 |
|
GT |
6.130 t Suez: 6.380,75 t |
|
DWT |
8.664 t |
|
NT |
3.424 t Panama: 21.391 t Suez: 5.919,81 t |
|
Number of 20ft containers |
In hold: 264 On deck: 288 Total: 552 |
|
Reefer container |
50 |
|
Length |
132,23 m overall 123,84 m between perpendiculars |
|
Breadth |
15,87 m moulded |
|
Draught |
7,06 m |
|
Air draft |
33,50 m |
|
Freeboard |
2.312 mm |
|
Depth |
9,65 m moulded |
|
Speed |
15,5 knots |
|
Built |
1998 |
|
Keel laid |
11/12/1996 |
|
Launch date |
13/06/1998 |
|
Date of completion |
03/09/1998 |
|
Builder |
Bodewes Scheepswerf Volharding Foxhol B.V. Foxhol The Netherlands |
|
Yard number |
331 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Partly double bottom |
|
Watertight compartments |
6 |
|
Moveable bulkheads |
2x Bulkheads, 8 store positions |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L38 - 4 stroke single acting 6 cylinder 380 x 475 mm combustion engine 3.960 / 5.380 hp kW at 600 rpm Build: 17/04/1998 Manufacturer: Stork-Wärtsilä NSD, Zwolle - The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft at 148 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 17,5 m² 1x Thermal oil heater, exhaust gas heated - 13,0 bar Heating surface: 55,0 m² Builder: Wiesloch Marine |
|
Electric installations |
2x Plant 440/220 V - 244 kVA 1x Plant 440 V - 813 kVA 1x Plant 440 V - 50 kVA |
|
Shaft generator |
1x 813 kVA / 650 kW |
|
Generators |
2x Main diesel generatorsets each 300 kVA - 240 kW - 353 hp |
|
Emergency generator |
1x Diesel generator set 88 kVA - 70 kW - 109 hp |
|
Bow thruster |
1x Transverse thruster - 500 kW, forward |
|
Number of holds |
2 Hold 1: 39,96 x 13,20 x 10,89 m Hold 2: 52,54 x 13,20 x 10,89 m |
|
Hold capacity |
Grain & bale: 12.813 m³ / 448.500 ft³ |
|
Number of hatches |
2 Hatch 1: 39,96 x 13,20 m Hatch 2: 52,54 x 13,20 m |
|
Hatch type |
Steel hatch covers pontoon type with handling crane |
|
Number of tanks |
Ballast: 27 Fuel oil: 8 Lubricating oil: 4 Potable water: 2 Waste water: 2 Chain: 2 Hydraulic oil: 2 Diesel oil: 2 Fresh water: 1 Thermal oil: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 47,25 m³ Freshwater: 75,42 m³ Fuel Oil: 471,81 m³ Lube Oil: 32,86 m³ Tank Ballast: 3.724,85 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Length: 495,00 m |
|
Crtew size |
12 |
|
Manager |
Royal Wagenborg Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Previous managers |
09/1998 - 08/2004 Wagenborg Shipping B.V., Delfzijl - The Netherlands 08/2004 - 06/2009 Esmeralda Schiffahrtsgesellschaft, Hemmoor - Germany |
|
Owner |
Scheepvaartonderneming Vechtborg B.V. Delfzijl The Netherlands |
|
Previous owners |
09/1998 - 08/2004 C.V. Scheepvaartonderneming Vechtborg, Delfzijl - The Netherlands 08/2004 - 007/2015 W. Waller KG, m.s. Niobe, Hemmoor - Germany |
|
Latest data adjustment |
06 February 2021 |
