| Antwerpen 17 September 2018 |
 |
 |
 |
||

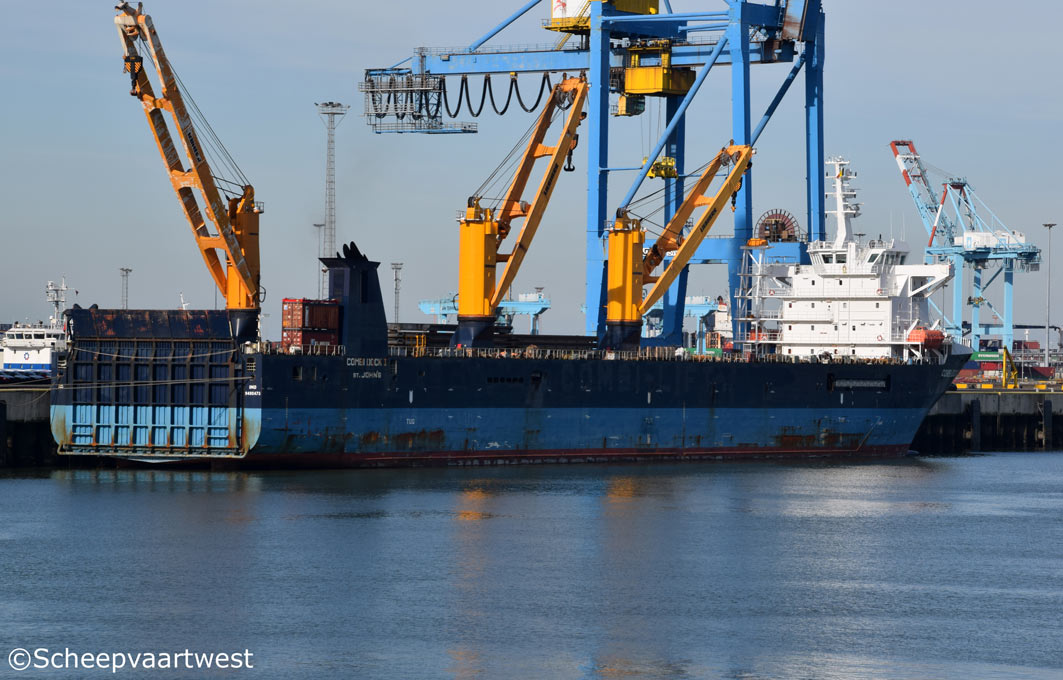

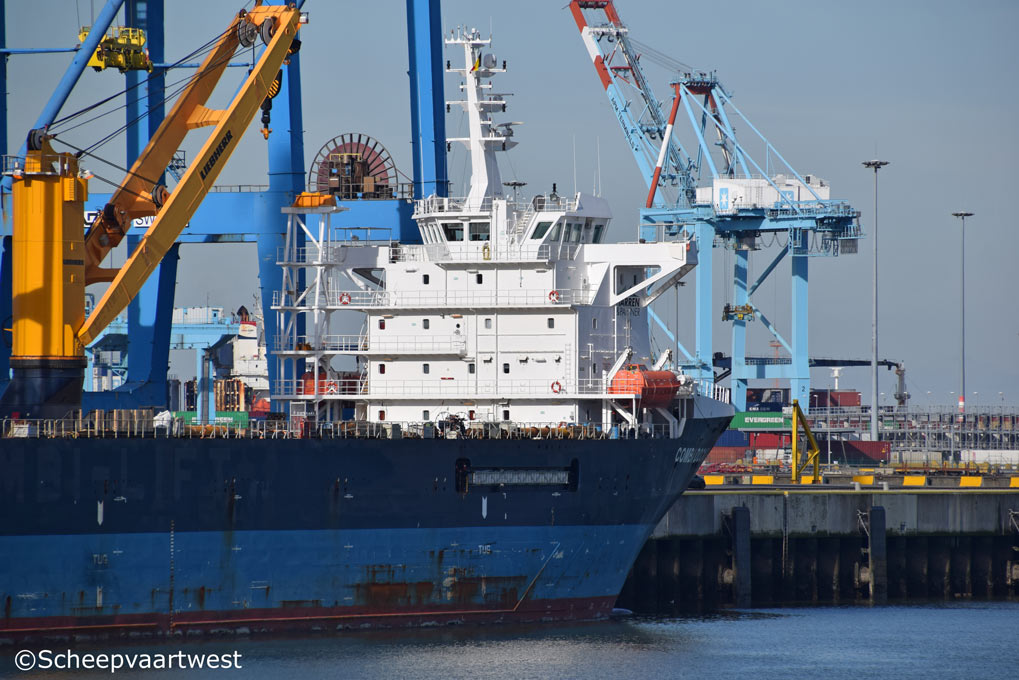

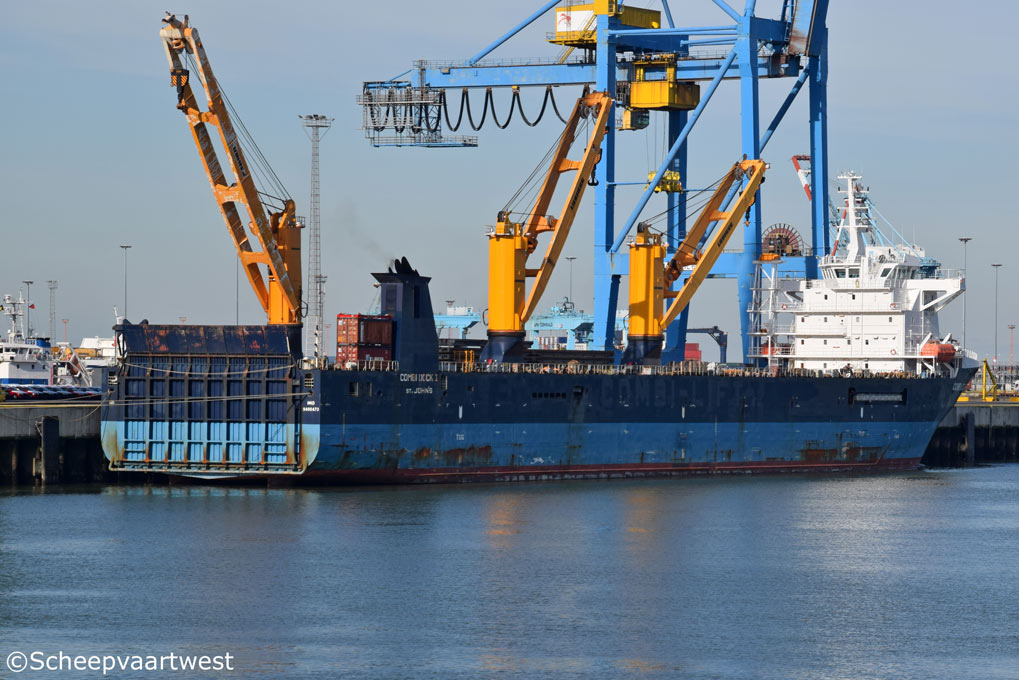

| Zeebrugge 16/02/16 | Zeebrugge 16/02/16 | Zeebrugge 16/02/16 | ||
|
Name |

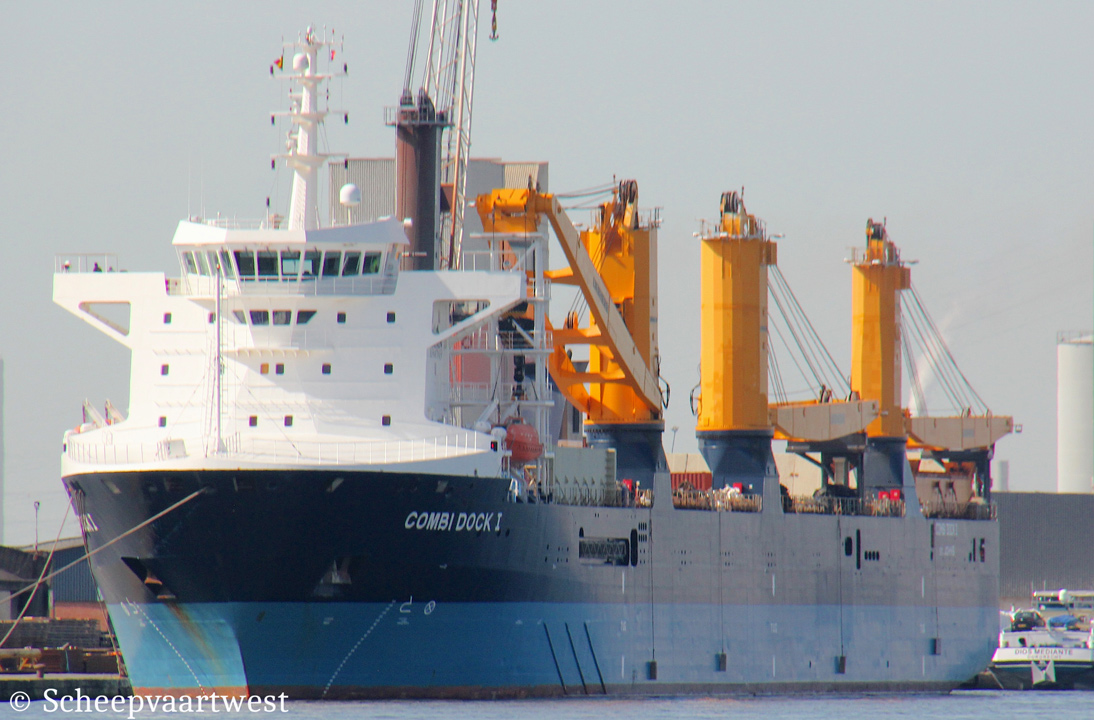

COMBI DOCK I |
|
Type |
Multi-purpose dry cargo ship - Semi-submersible - Equipped for carriage of containers - Equipped for carriage of Ro/Ro-cargo - Strengthened for heavy cargo |
|
IMO-number |
9400473 |
|
Classification |
DNV GL |
|
Call sign |
CQ2502 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
2008 - 02/2025 Antigua & Barbuda, St. John's - Call sign: V2DV7 |
|
GT |
17.341 |
|
DWT |
10.457 t |
|
NT |
5.203 |
|
Number of 20ft containers |
In hold: 420 On deck: 963 Total: 1.383 t |
|
Container capacity 14t |
671 |
|
Length |
163,00 m overall 169,40 m incl. crane overhang 147,60 m between perpendiculars |
|
Breadth |
25,73 m extreme 25,40 m moulded |
|
Draught |
Summer: 6,60 m 11,00 m docking draft |
|
Depth |
10,00 m |
|
Speed |
Max: 16,0 knots |
|
Built |
2008 |
|
Keel laid |
15/12/2006 |
|
Launch date |
22/12/2007 |
|
Date of completion |
20/01/2008 |
|
Builder |
Lloyd Werft Bremerhaven GmbH Germany |
|
Yard number |
112 |
|
Hull material |
Steel |
|
Main engine |
2x MAN-B&W 9L32/40 CD - 4 stroke 9 cylinder combustion engine total 9.000 kW / 12.236 hp |
|
Propellers |
2x Controllable pitch propellers |
|
Boilers |
Auxiliary boiler, exhaust gas heated type Mission XS-7V Auxiliary boiler, oil/gas fired type Mission OS |
|
Shaft generator |
2x Generators total 1.976 kW |
|
Generators |
2x MAN 5L23/30H diesel generatorsets total 1.536 kVA |
|
Emergency generator |
1x MAN D2866LXE20 diesel generatorset 340 kVA |
|
Bow thruster |
1x Brunvoll controllable pitch propeller 700 kW |
|
Number of holds |
1x Box shaped 132,00 x 18,00 x 9,40 m |
|
Cargo hold capacity |
Grain: 20.900 m³ Bale: 20.897 m³ |
|
Number of hatches |
1 132,00 x 25,40 m |
|
Dockship |
Length hold: 132,00 x 25,40 m (max. flushdeck) |
|
Deck surface |
Main deck: 2.376 m² Tweendeck: 2.276 m² Weatherdeck: 3.368 m² Total: 8.120 m² |
|
Stern ramp |
750 t Width: 18,00 m Length: 10,80 m without flap Length: 13,80 m with flap |
|
Max. permitted loads |
Tanktop: 16,0 t/m² Tweendeck: 4,58 t/m² Hatch covers: 2,55 t/m² |
|
Tank capacities |
Ballast: 17.415 t Fuel oil: 1.254 t MDO: 131 t Fresh water: 223 t |
|
Anchor equipment |
Length: 605,00 m Diameter:62 mm |
|
Cargo gear |
2x Liebherr electro hydraulic cranes - SWL 350 t Port side Combinable up to 700 t 1x Liebherr electro hydraulic cranes - SWL 200 Port side |
|
Crew |
25 |
|
Commercial Manager |
Harren & Partner Ship Management Hermann-Hollerith-Strasse 10 28355, Bremen Germany |
|
ISM manager |
HG Dry GmbH & Co KG Hermann-Hollerith-Strasse 10 28355, Bremen Germany |
|
Previous managers |
2008 - 2015 Harren & Partner Ship Management GmbH & Co. KG |
|
Registered owner |
Merkur 74 Schifffahrts Harren & Partner Ship Management GmbH & Co KG Hermann-Hollerith-Strasse 10 28355, Bremen Germany |
|
Previous owners |
|
|
Latest data adjustment |
18 April 2026 |
